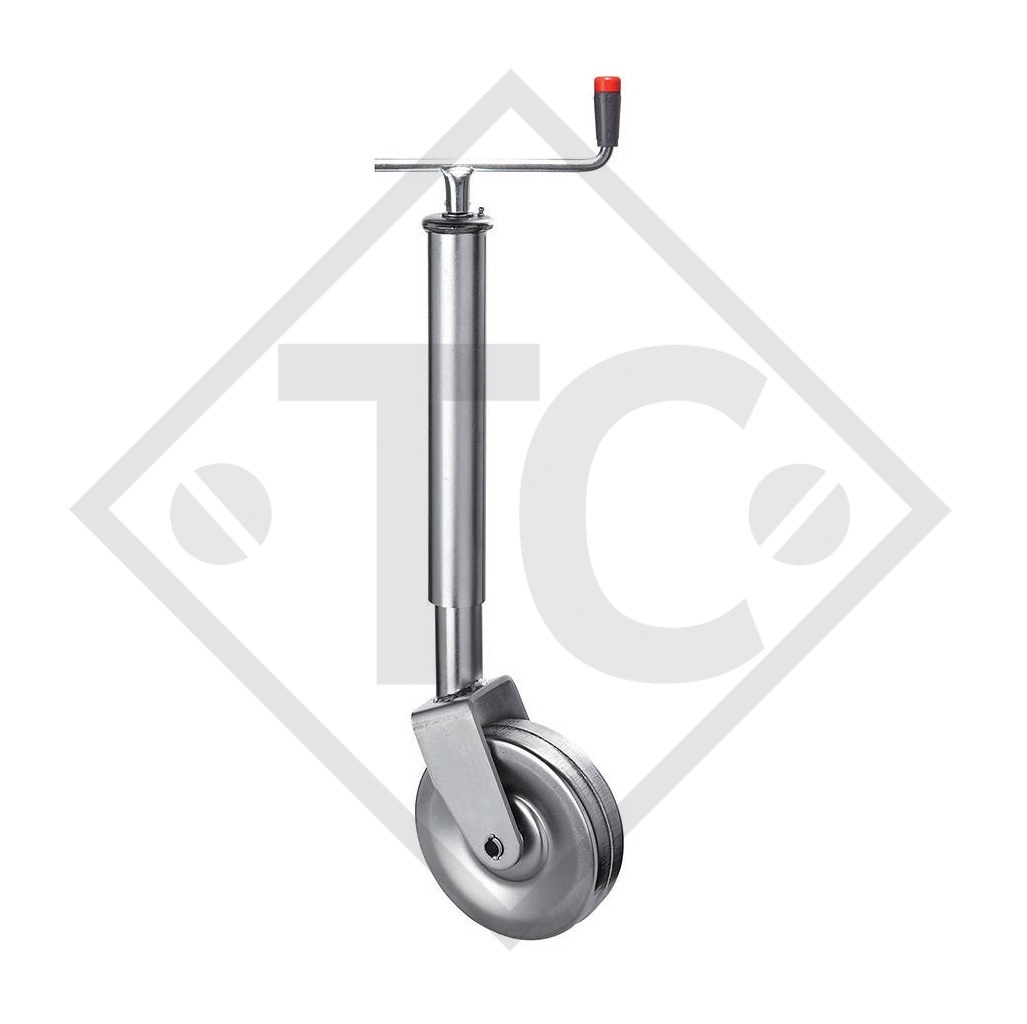

Home / Jockey wheel ø70mm round, support shoe rigid, top crank, type FO 270/Z, galvanised, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 280mm, rim steel, wheel 280x75mm steel plate, maxi. static load 1000kg, dimension A 300mm, dimension B 460mm, dimension D 930mm, dimension E 130mm. Read more...
| Outer tube |
ø70mm |
| Screw stroke (extended length) | 280mm |
| Steel wheel | 280x75mm |
| Maxi. static load | 1000kg |

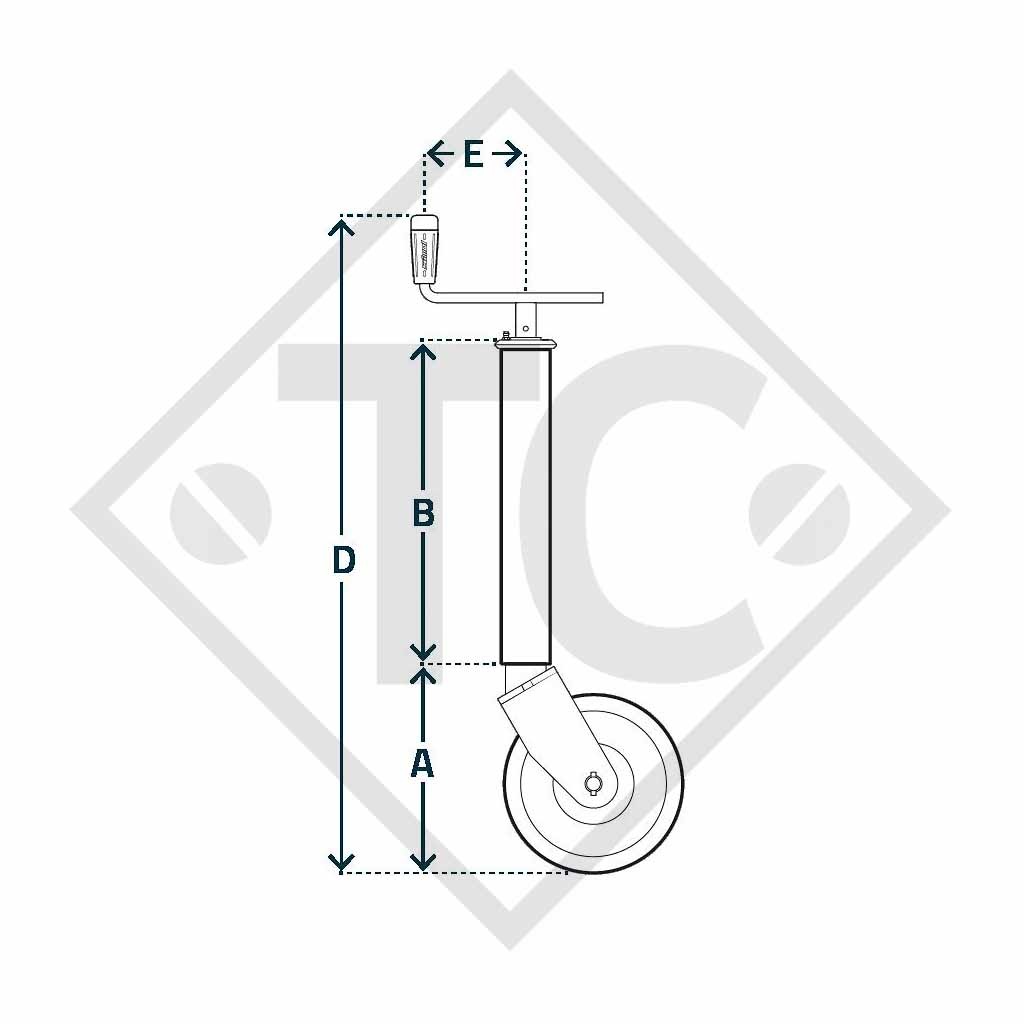

| Dimension A |
300mm |
| Dimension B |
460mm |
| Dimension D |
930mm |
| Dimension E |
130mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
