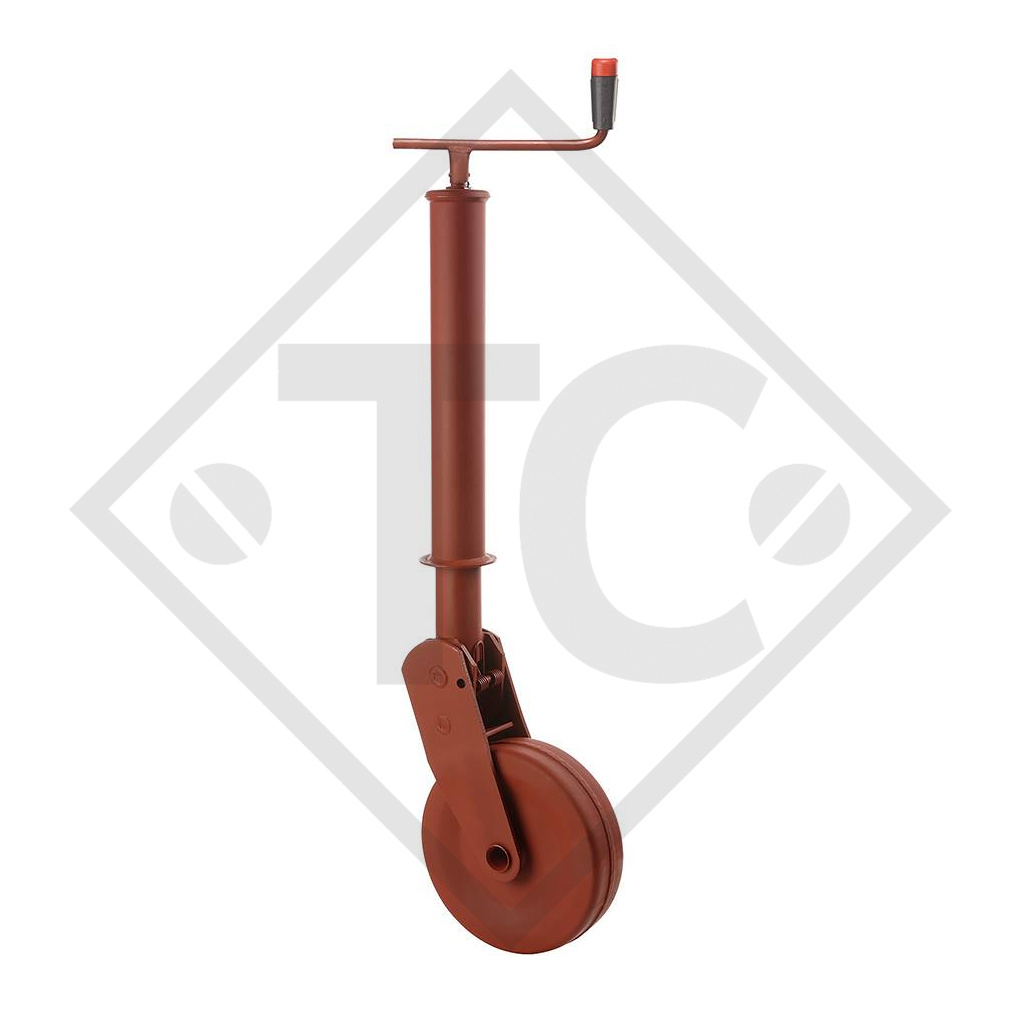

Jockey wheel ø70mm round, type A 101

Jockey wheel ø70mm round with fully automatic support, top crank, type A 101, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow

screw stroke (extended length) 230mm, rim steel, wheel 310x90mm steel plate, maxi. static load 1200kg, dimension A 520mm, dimension B 465mm, dimension D 1135mm, dimension E 185mm. Read more...

Wishlist: Add to comparison:

Price 239,90 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 6-10 working days (Mon-Fri)

- +

Add to cart

Outer tube

ø70mm

Screw stroke (extended length)

230mm

Steel wheel

310x90mm

Maxi. static load

1200kg

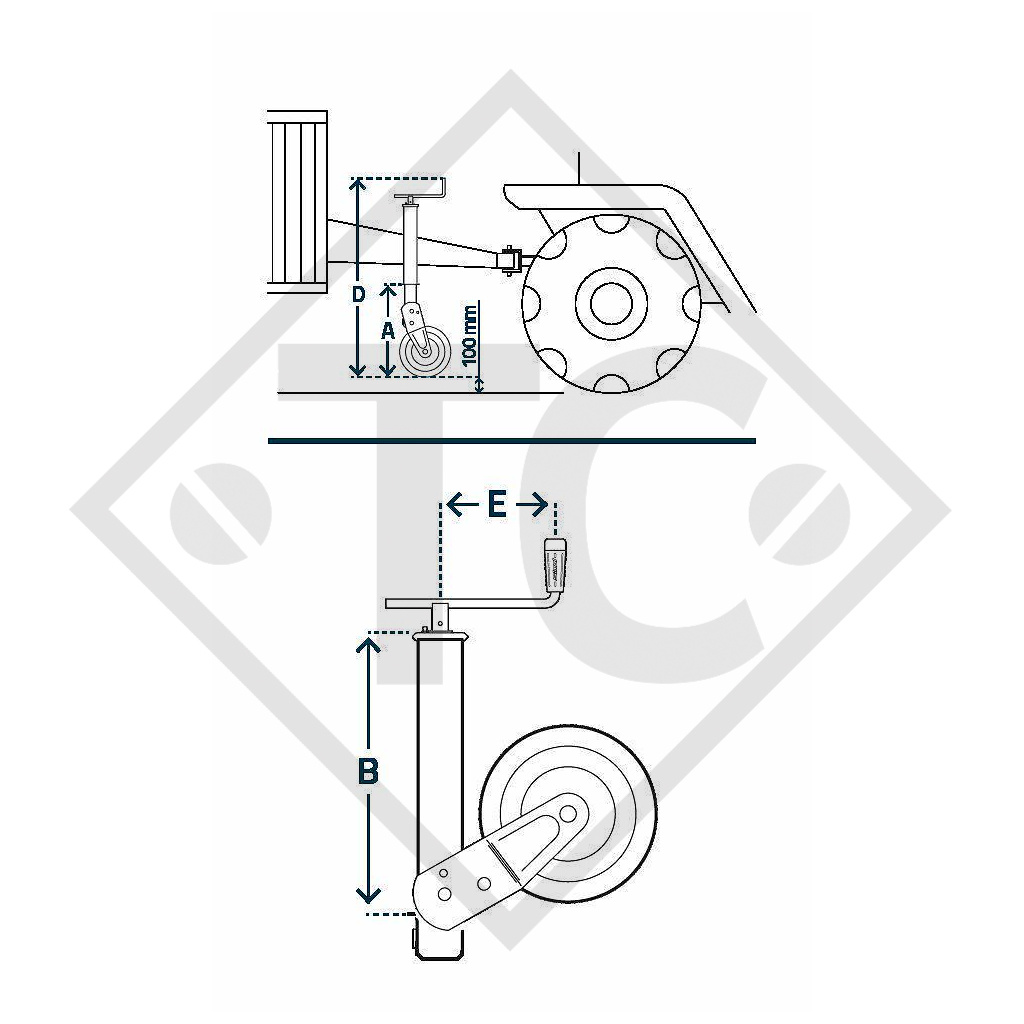

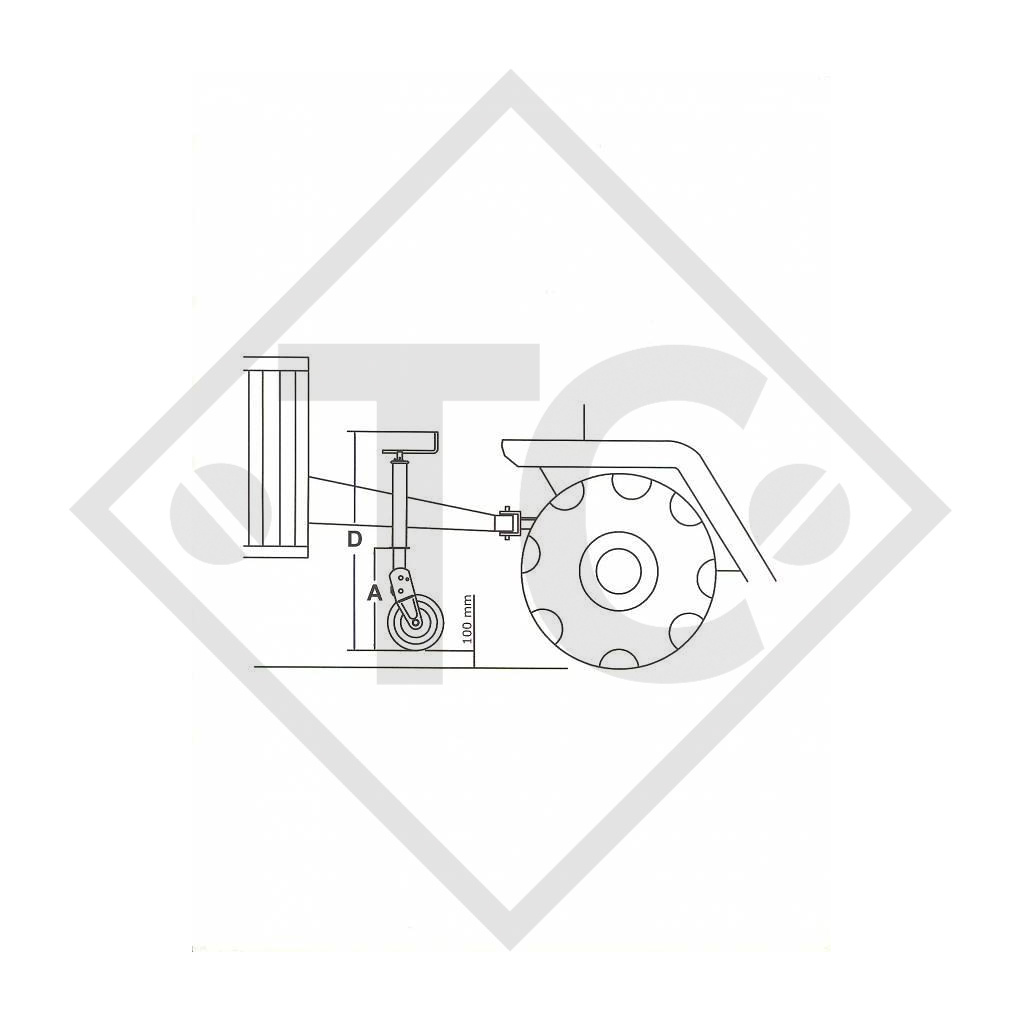

Dimension A

520mm

Dimension B

465mm

Dimension D

1135mm

Dimension E

185mm

Here, you can find the catalogue page(s) as a convenient PDF download.

SIMOL Jockey wheel ø70mm round with fully automatic support, top crank, type A 101, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
