Jockey wheel ø70mm round, type A 100

Jockey wheel ø70mm round with fully automatic support, top crank, type A 100, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow

screw stroke (extended length) 230mm, rim steel, wheel 275x70mm steel plate, maxi. static load 1000kg, dimension A 485mm, dimension B 465mm, dimension D 1100mm, dimension E 185mm. Read more...

Wishlist: Add to comparison:

Price 229,90 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 6-10 working days (Mon-Fri)

- +

Add to cart

Outer tube

ø70mm

Screw stroke (extended length)

230mm

Steel wheel

275x70mm

Maxi. static load

1000kg

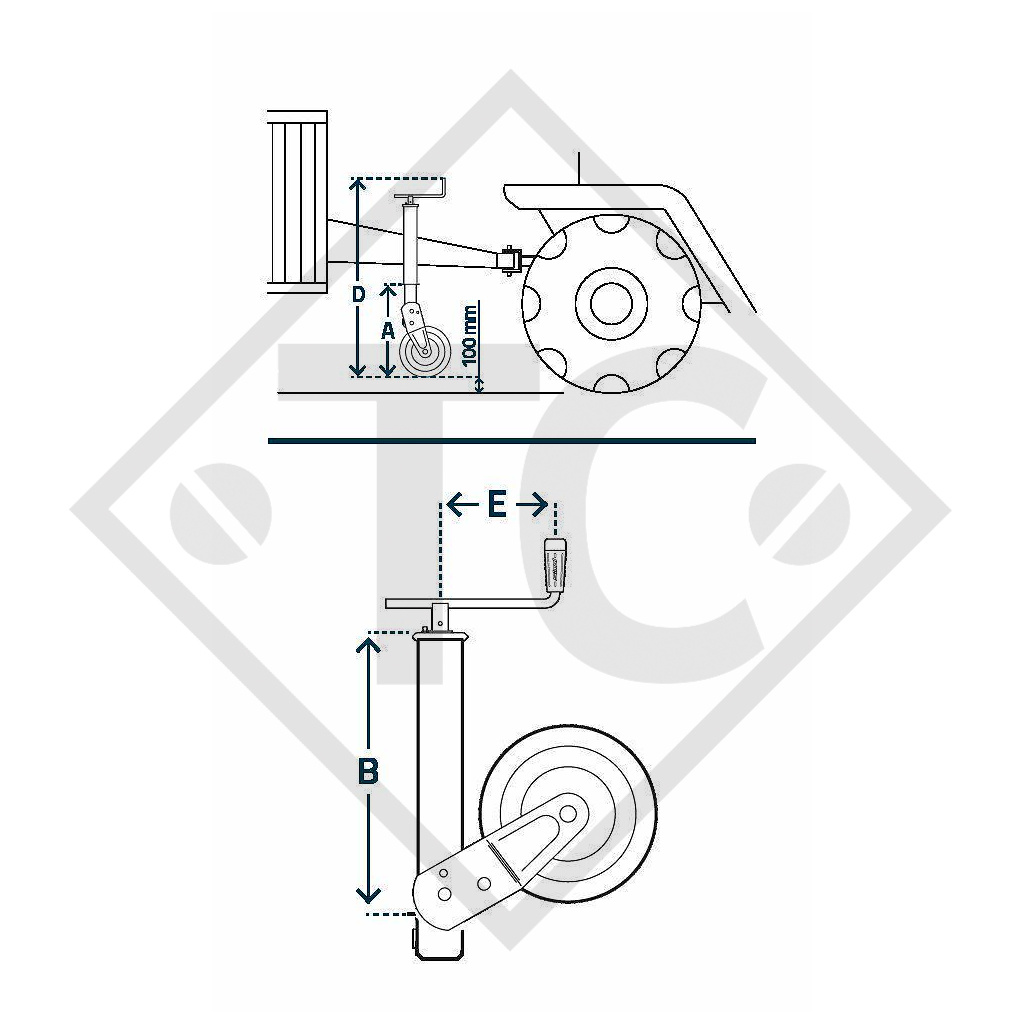

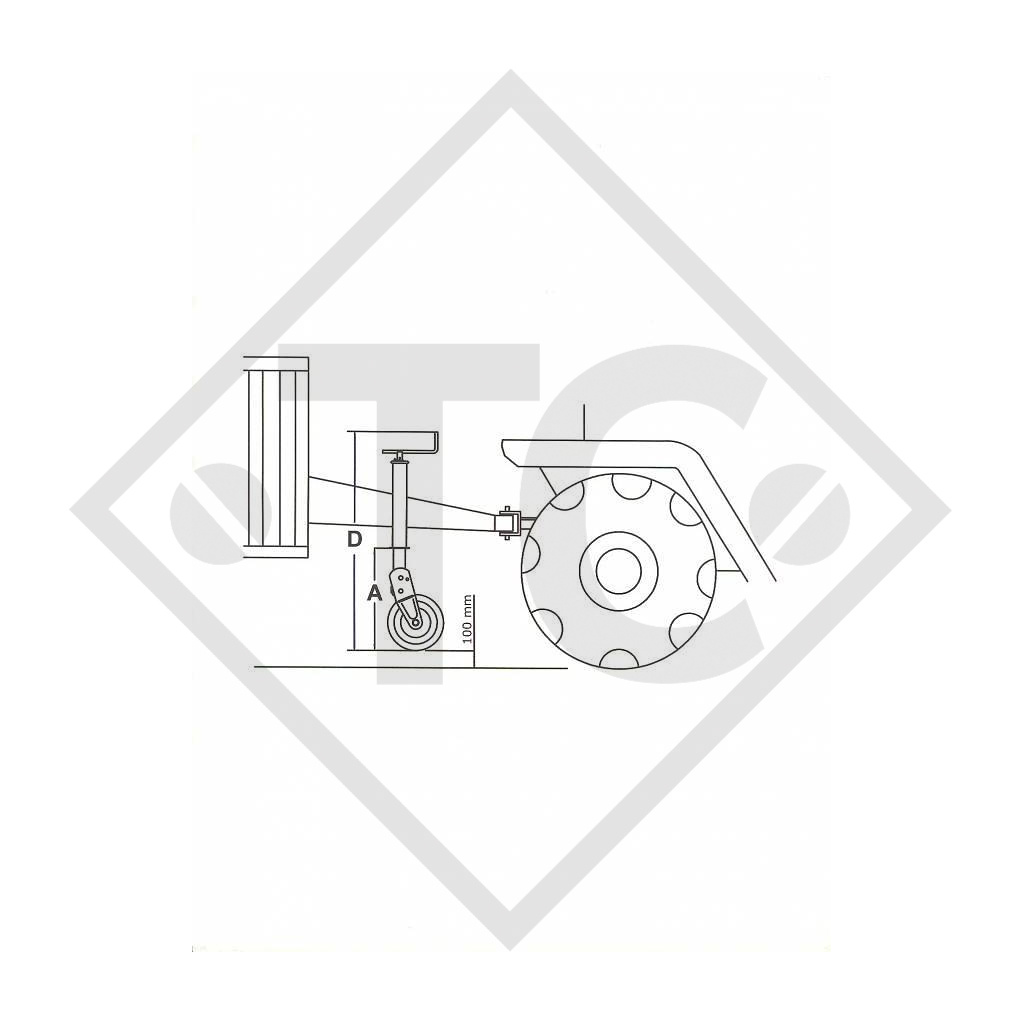

Dimension A

485mm

Dimension B

465mm

Dimension D

1100mm

Dimension E

185mm

Here, you can find the catalogue page(s) as a convenient PDF download.

SIMOL Jockey wheel ø70mm round with fully automatic support, top crank, type A 100, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
