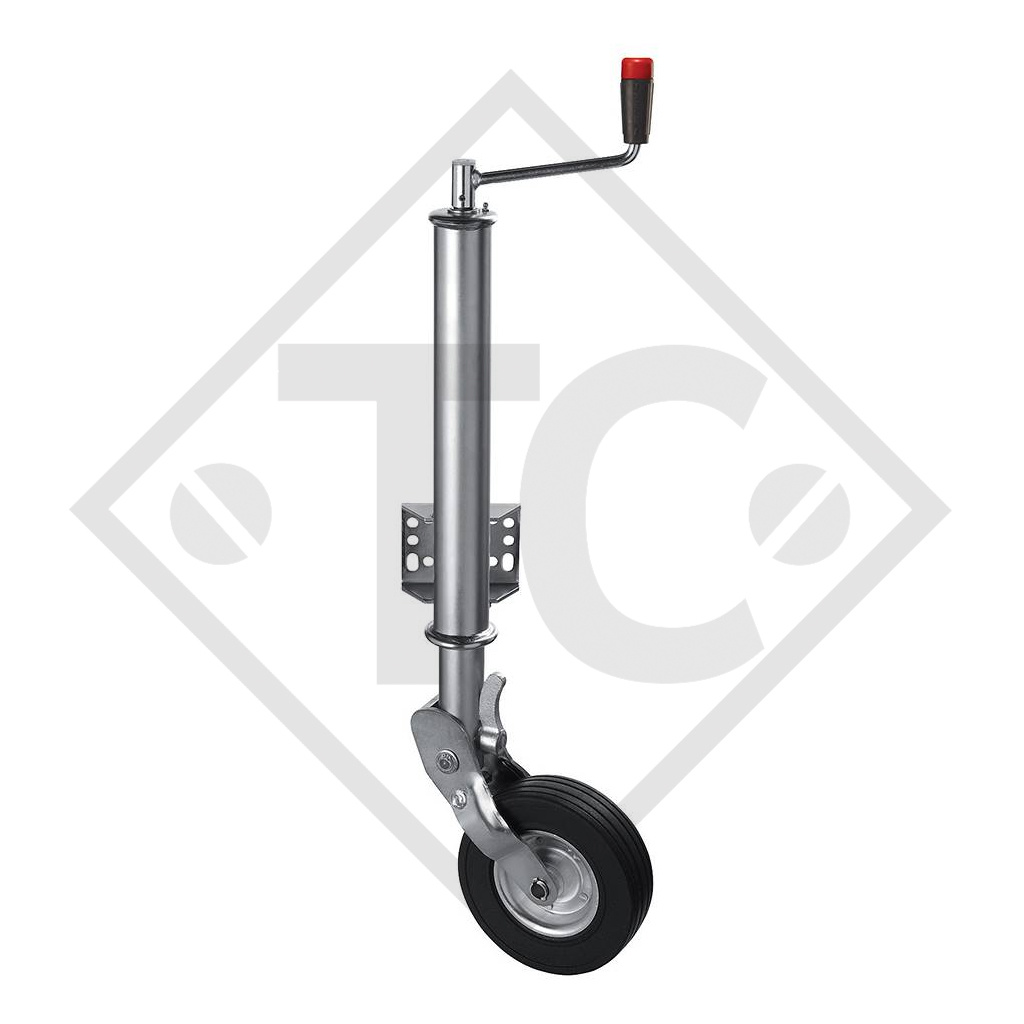

Home / Jockey wheel ø60mm round, type AC 297S with rim steel, for caravans, car trailers, machines for building industry and aircraft docking systems

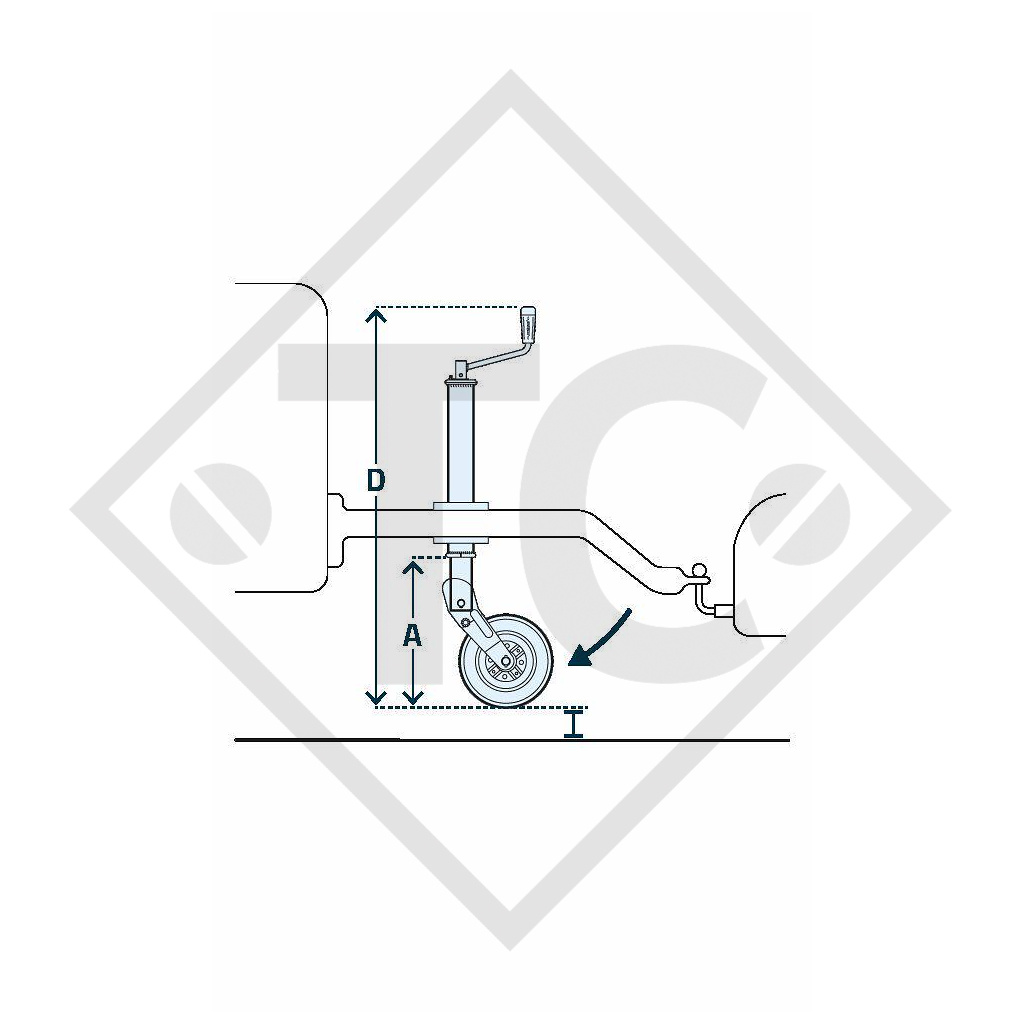

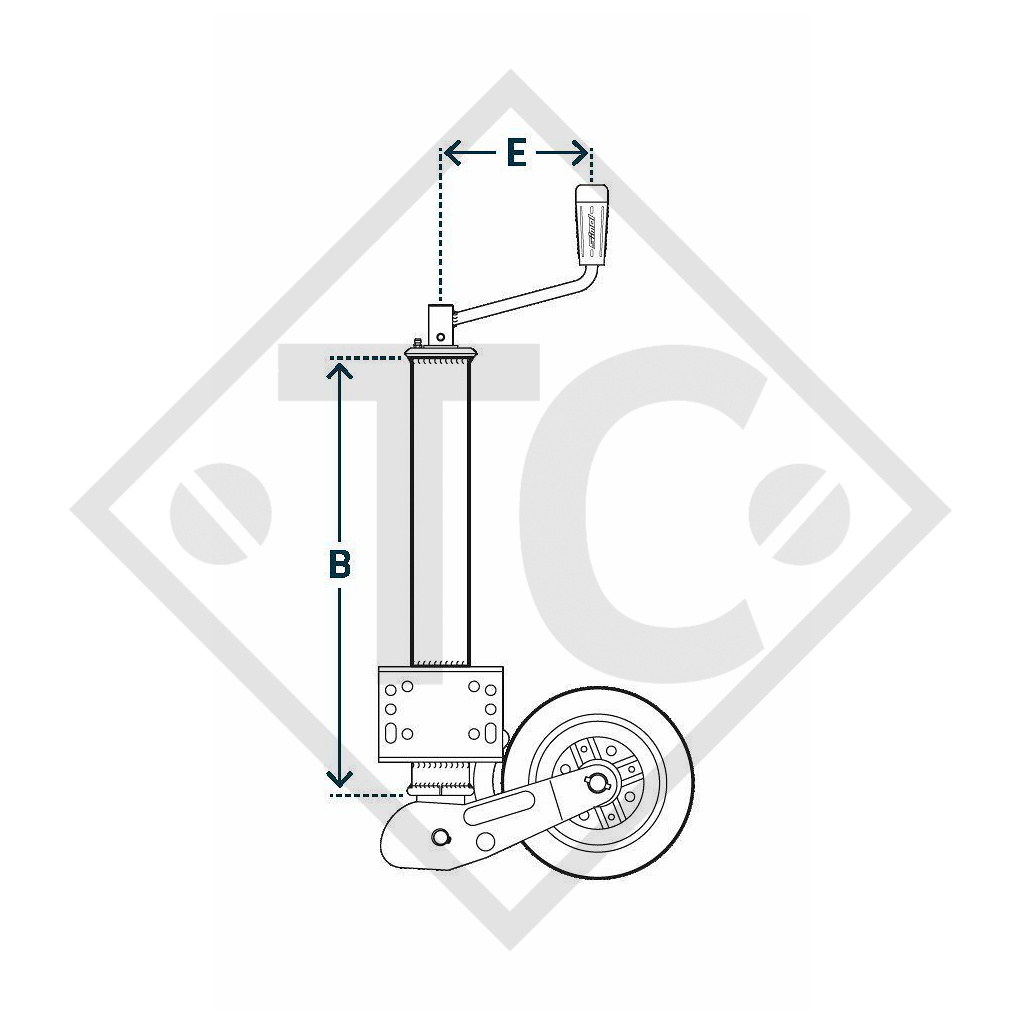

screw stroke (extended length) 175mm, Solid rubber wheel 220x60mm, maxi. static load 400kg, dimension A 335mm, dimension B 455mm, dimension D 945mm, dimension E 160mm. Read more...
| Outer tube |
ø60mm |
| Screw stroke (extended length) | 175mm |
| Rubber wheel | 220x60mm |
| Maxi. static load | 400kg |
| Dimension A |
335mm |
| Dimension B |
455mm |
| Dimension D |
945mm |
| Dimension E |
160mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
