Home / Jockey wheel ø60mm round, type AC 296S with rim steel, for caravans, car trailers, machines for building industry and aircraft docking systems

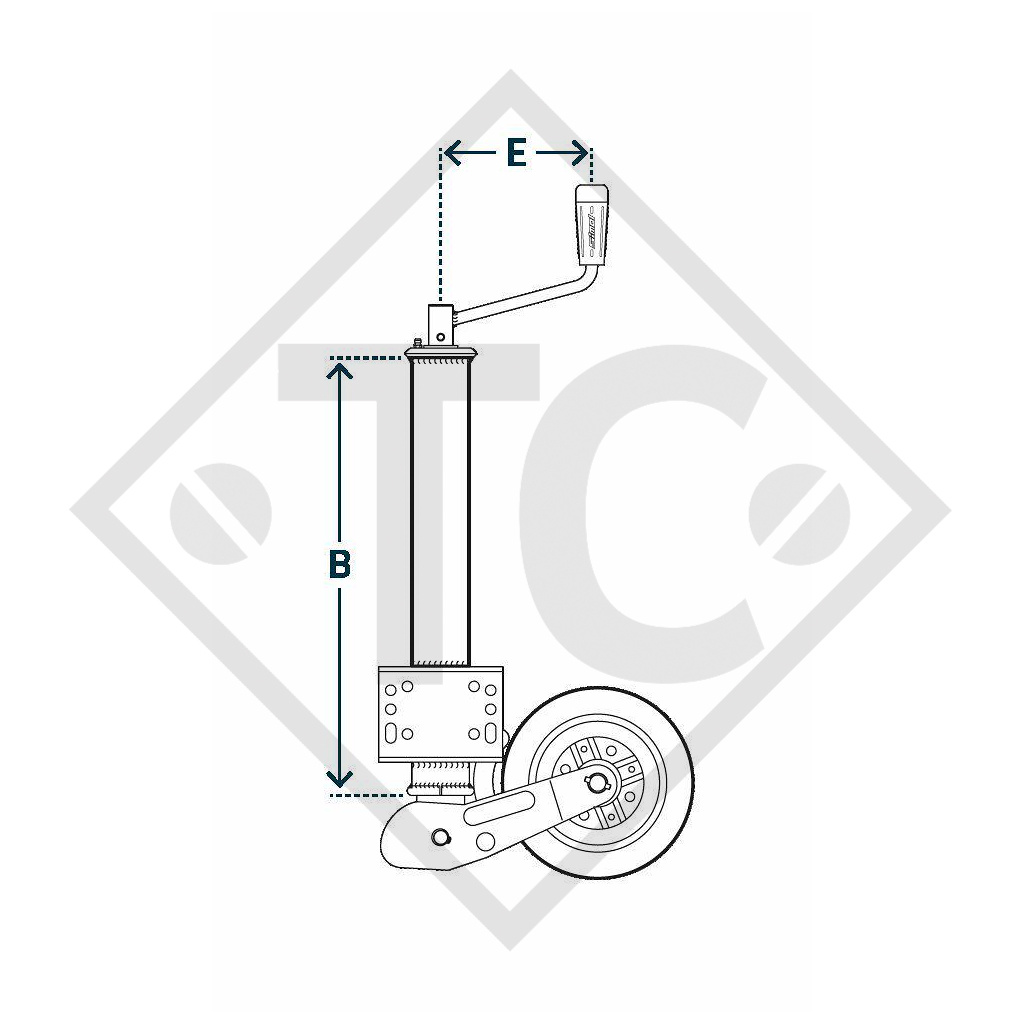

screw stroke (extended length) 175mm, Solid rubber wheel 200x60mm, maxi. static load 250kg, dimension A 325mm, dimension B 455mm, dimension D 920mm, dimension E 110mm. Read more...
| Outer tube |
ø60mm |
| Screw stroke (extended length) | 175mm |
| Rubber wheel | 200x60mm |
| Maxi. static load | 250kg |
| Dimension A |
325mm |
| Dimension B |
455mm |
| Dimension D |
920mm |
| Dimension E |
110mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
