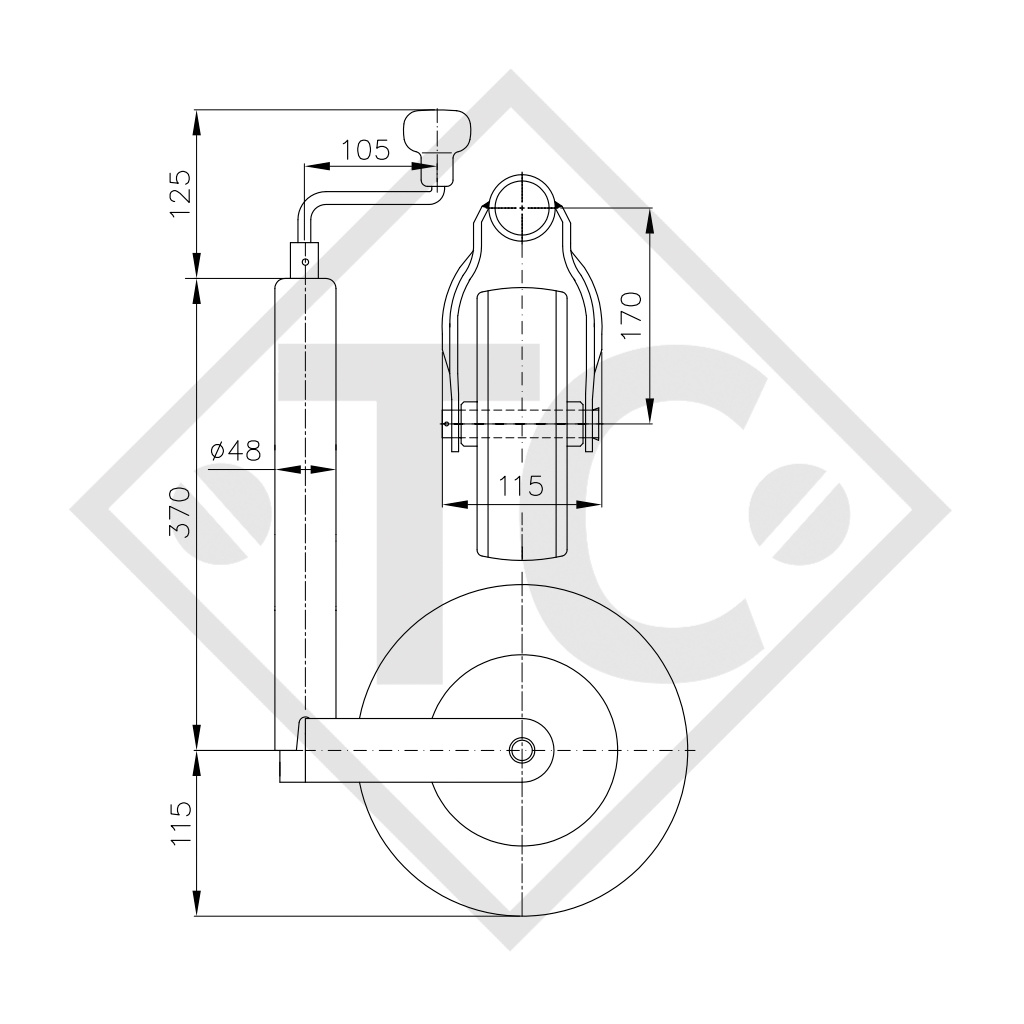

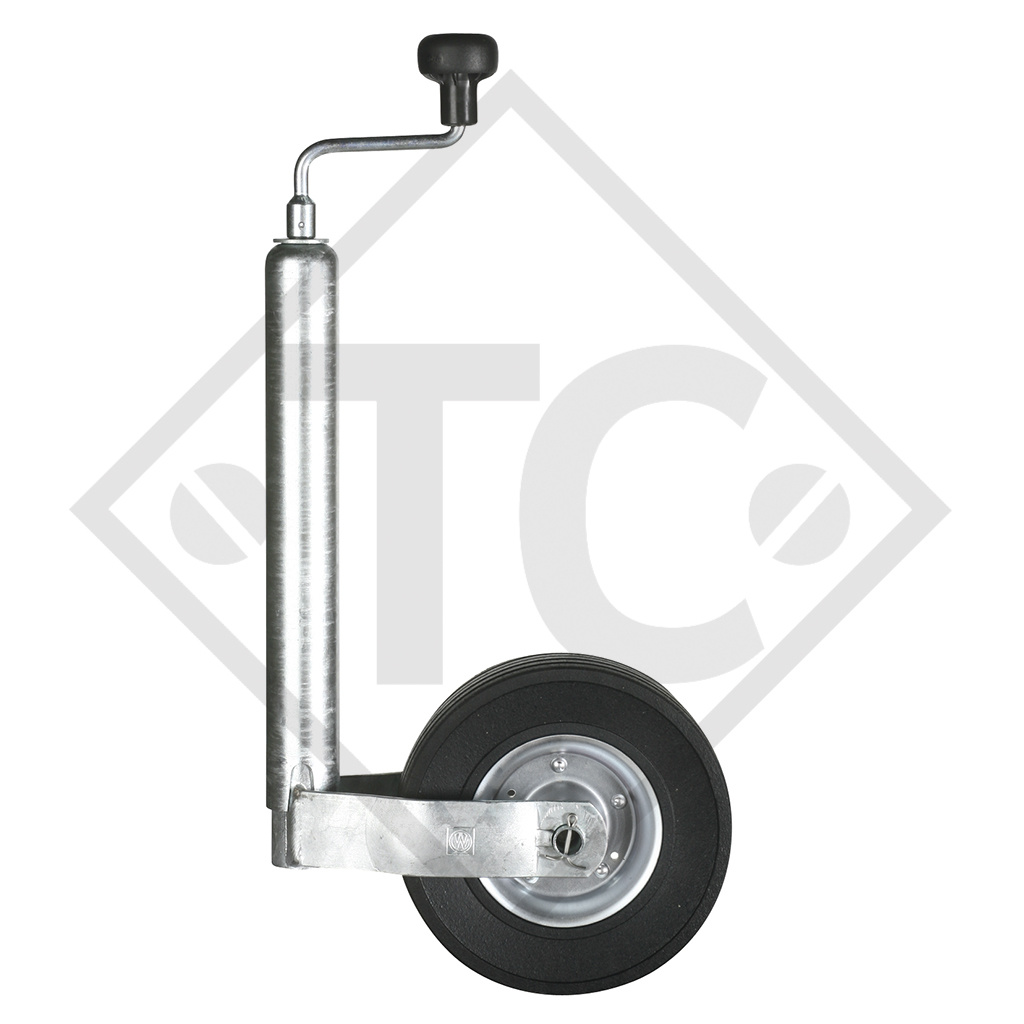

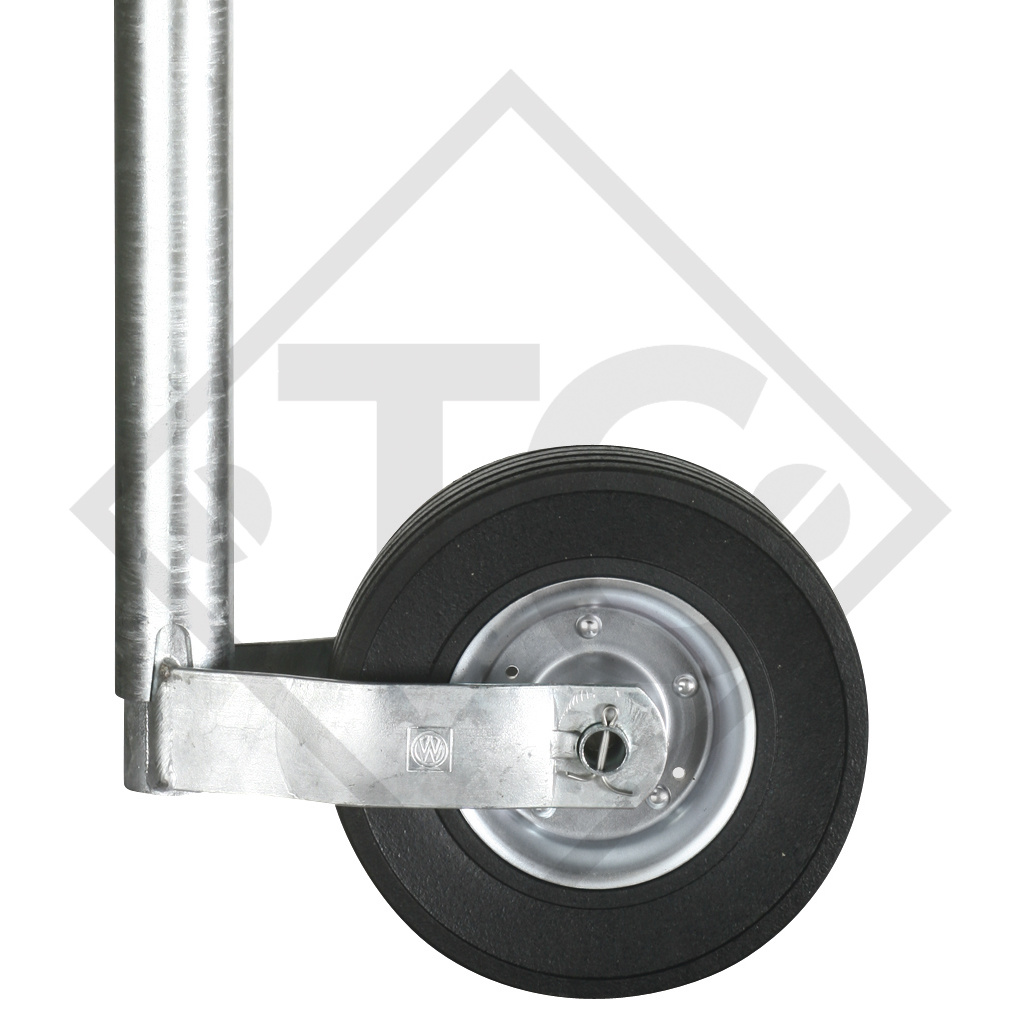

Home / CHASSIS PARTS / CHASSIS PARTS WAP / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLE 1500KG WAG-B, AXLE TYPE WAG 150 B / 234 / Jockey wheel ø48mm round, type ST 48-255 SB, for caravans, car trailers, machines for building industry
stationary nose load max. 150kg, nose load when manoeuvring max.90kg, rim steel, wheel 225x70mm solid rubber, extended length 210mm. Read more...
Stationary nose load | Max. 150g |
Nose load when manoeuvring | Max. 90kg |
Rim | steel |
Wheel | 225x70mm solid rubber |
Extended length | 210mm |
Here, you can find the catalogue page as a convenient PDF download.
