AL-KO Jockey wheel crossmember for towbar connection V up to 3500kg

Part no. 1212992

JOCKEY WHEEL CROSSMEMBER
for towbar connections V up to 3,500 kg

YOUR ADVANTAGE
No twisting of the drawbars if the nose load is exceeded, as was previously sometimes the case with external mounting of the jockey wheel.

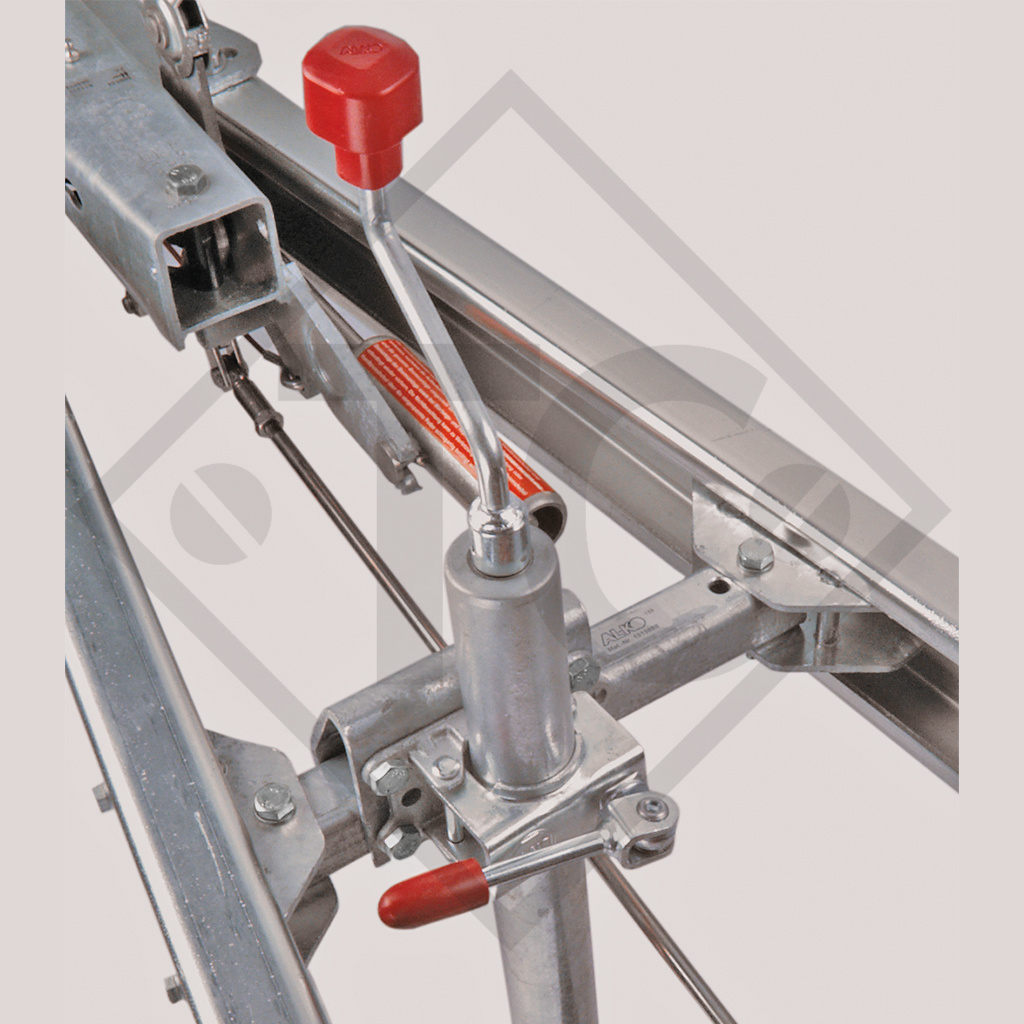

Installation of the jockey wheel between the drawbars permits safer and easier manoeuvring by hand.
The crossmember adapts to the respective towbar position due to movable fastening brackets.
Delivered pre‑assembled thereby permitting quick and easy installation.
Three standard lengths permit a wide range of mounting positions.

APPLICATION AREA
A‑frame chassis

MOUNTING

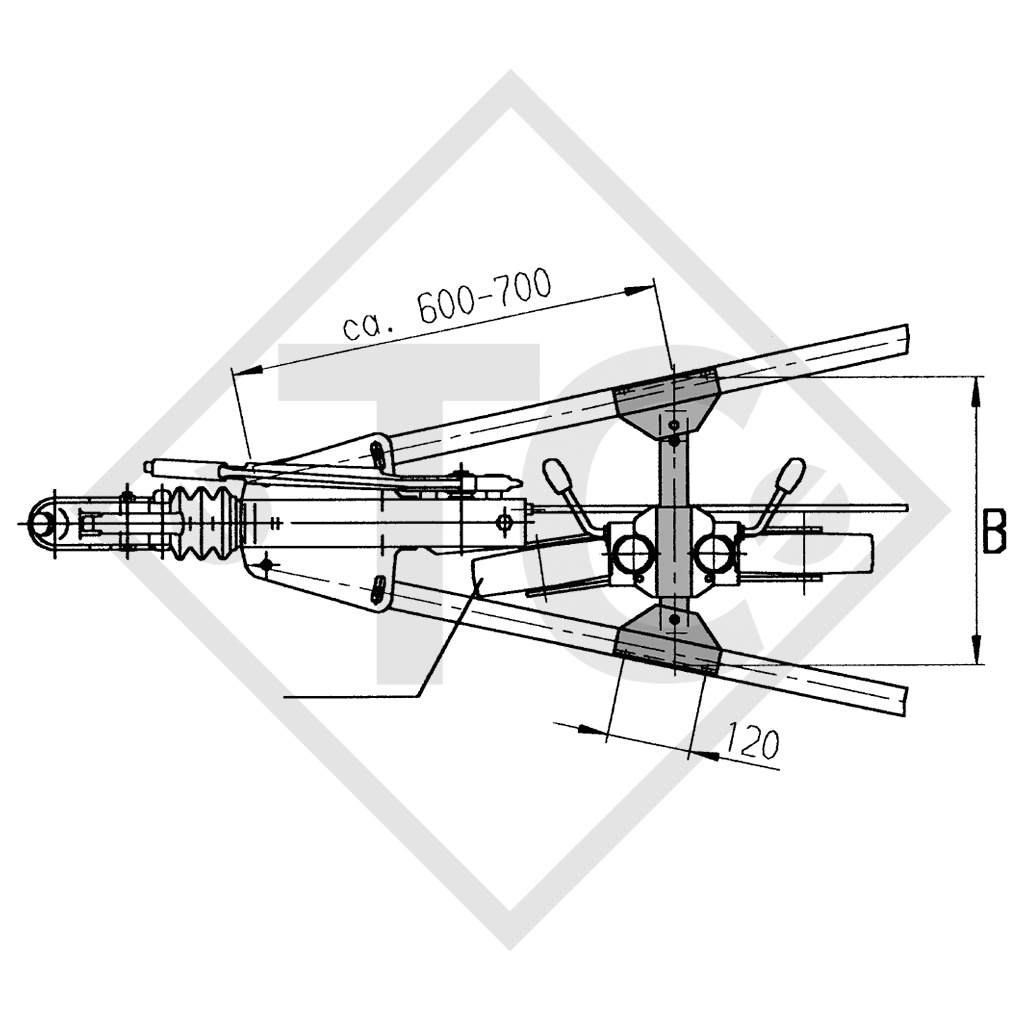

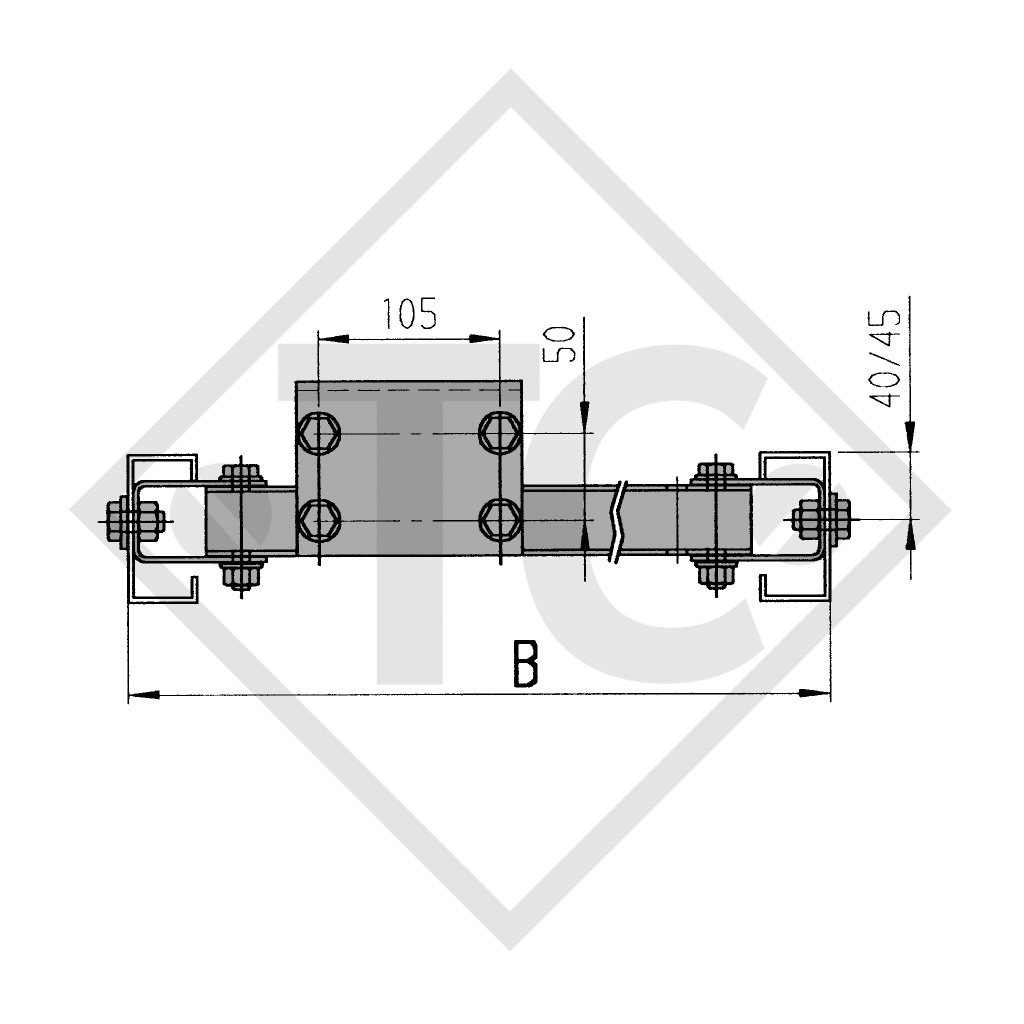

The crossmember can be mounted on AL‑ KO towbar connections (mounting position see diagram).
For this purpose, it is neces‑ sary to have 2 holes 12.5 or 13 mm each in the neutral area of the towbars (see operat‑ ing instructions for TÜV authorisation).
Attention! Jockey wheel crossmember must make contact with the upper edge of the towbar connection.
The jockey wheel can be installed either before or after the crossmember in the driv‑ ing direction.

SURFACE TREATMENT
Hot‑dip galvanised, bolts galvanised

SCOPE OF SUPPLY

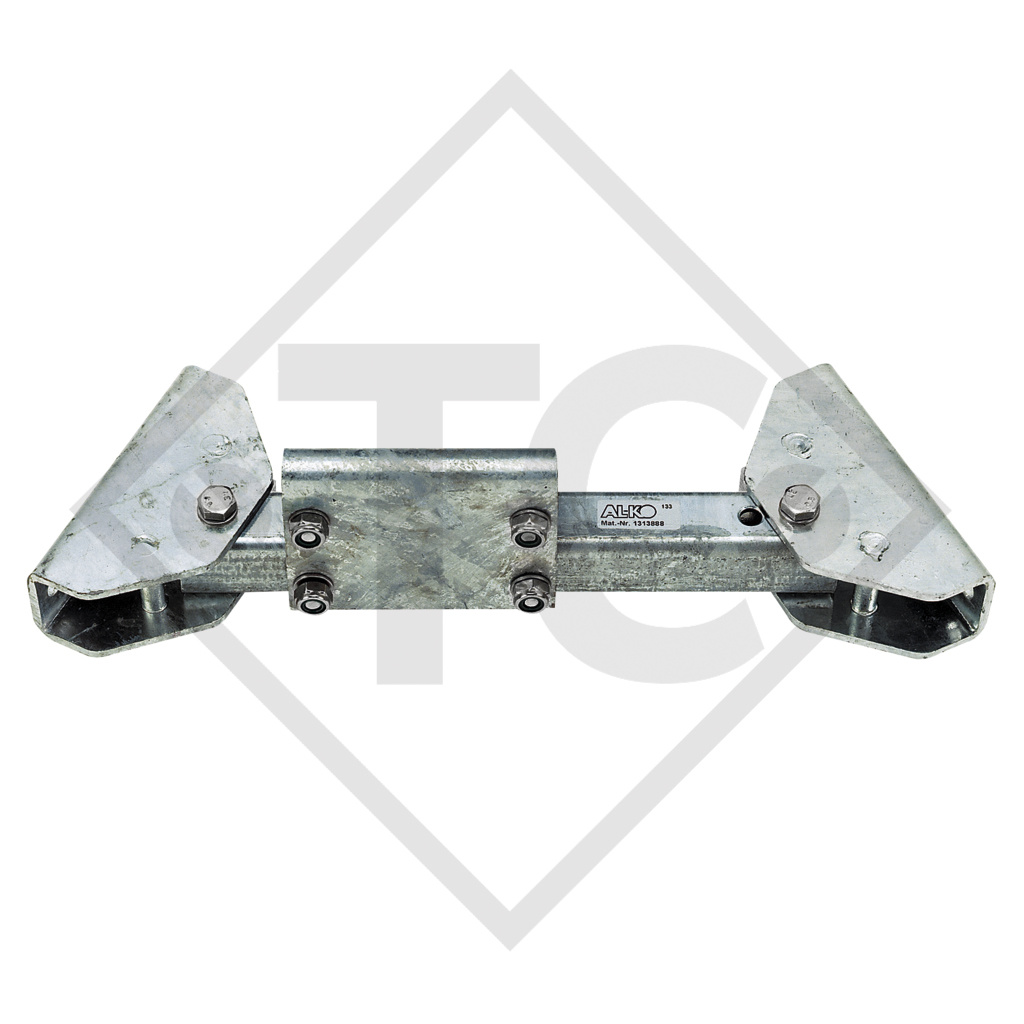

Crossmember with pre‑installed fastening brackets and pre‑installed counter‑flange for clamp Ø 48mm and Ø 60mm or AL‑KO flange jockey wheel (without packaging).
