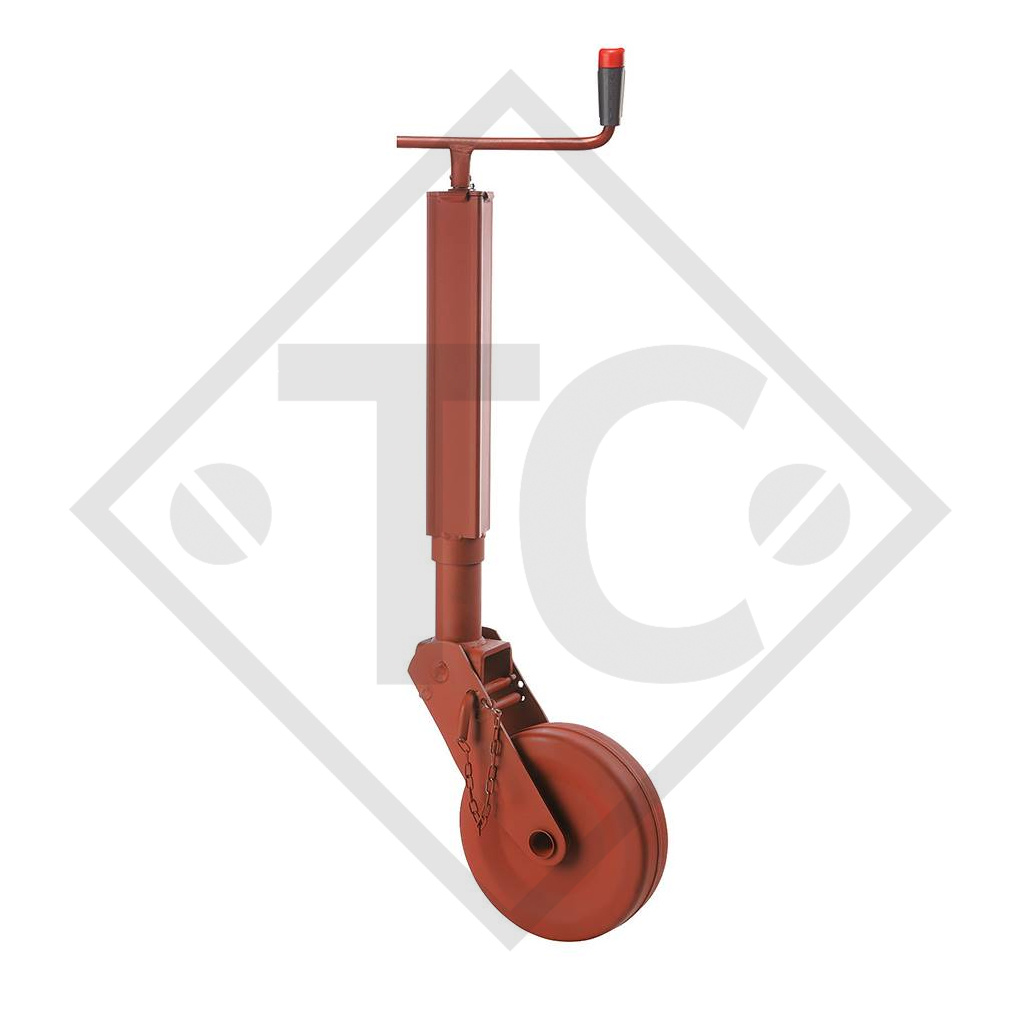

Home / Jockey wheel □70mm square with manual turnover support shoe, top crank, type S 135E, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 300mm, rim steel, wheel 280x65mm solid rubber, maxi. static load 900kg, dimension A 375mm, dimension B 460mm, dimension D 990mm, dimension E 185mm. Read more...
| Outer tube |
□70mm square |
| Screw stroke (extended length) | 300mm |
| Rubber wheel | 280x65mm |
| Maxi. static load | 900kg |

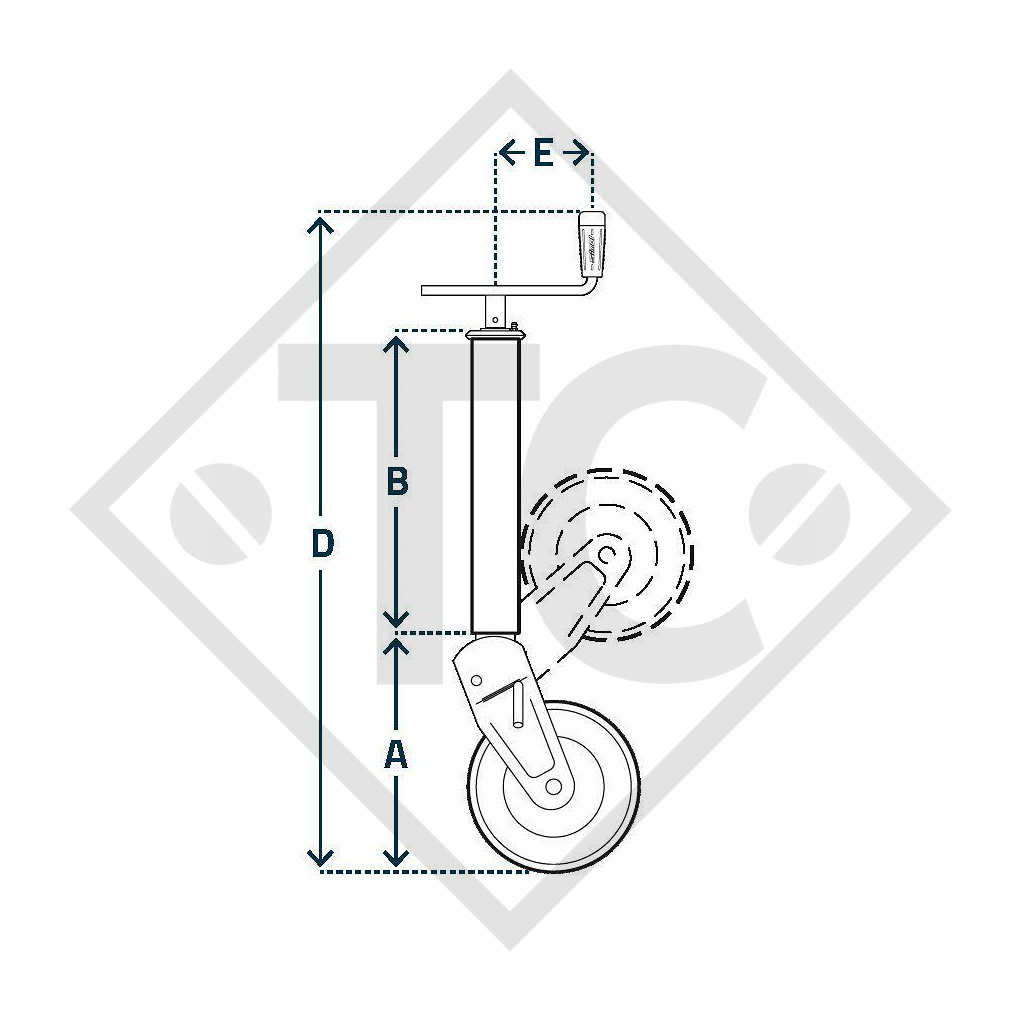

| Dimension A |
375mm |
| Dimension B |
460mm |
| Dimension D |
990mm |
| Dimension E |
185mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
