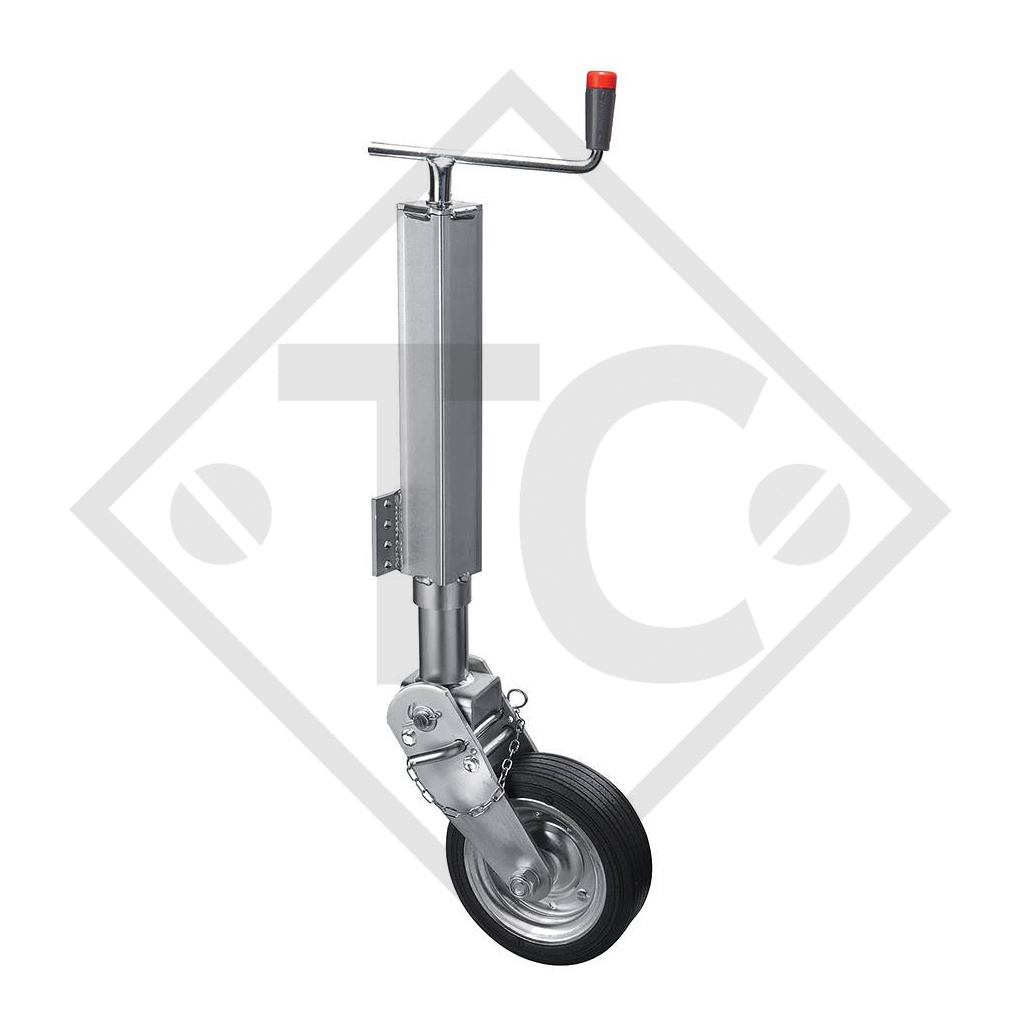

Home / Jockey wheel □70mm square, folding type S 124Z/4 with rim steel, for caravans, car trailers, machines for building industry and aircraft docking systems
screw stroke (extended length) 300mm, Solid rubber wheel 250x85mm, maxi. static load 600kg, dimension A 355mm, dimension B 460mm, dimension D 975mm, dimension E 185mm. Read more...
| Outer tube |
□70mm square |
| Screw stroke (extended length) | 300mm |
| Rubber wheel | 250x85mm |
| Maxi. static load | 600kg |

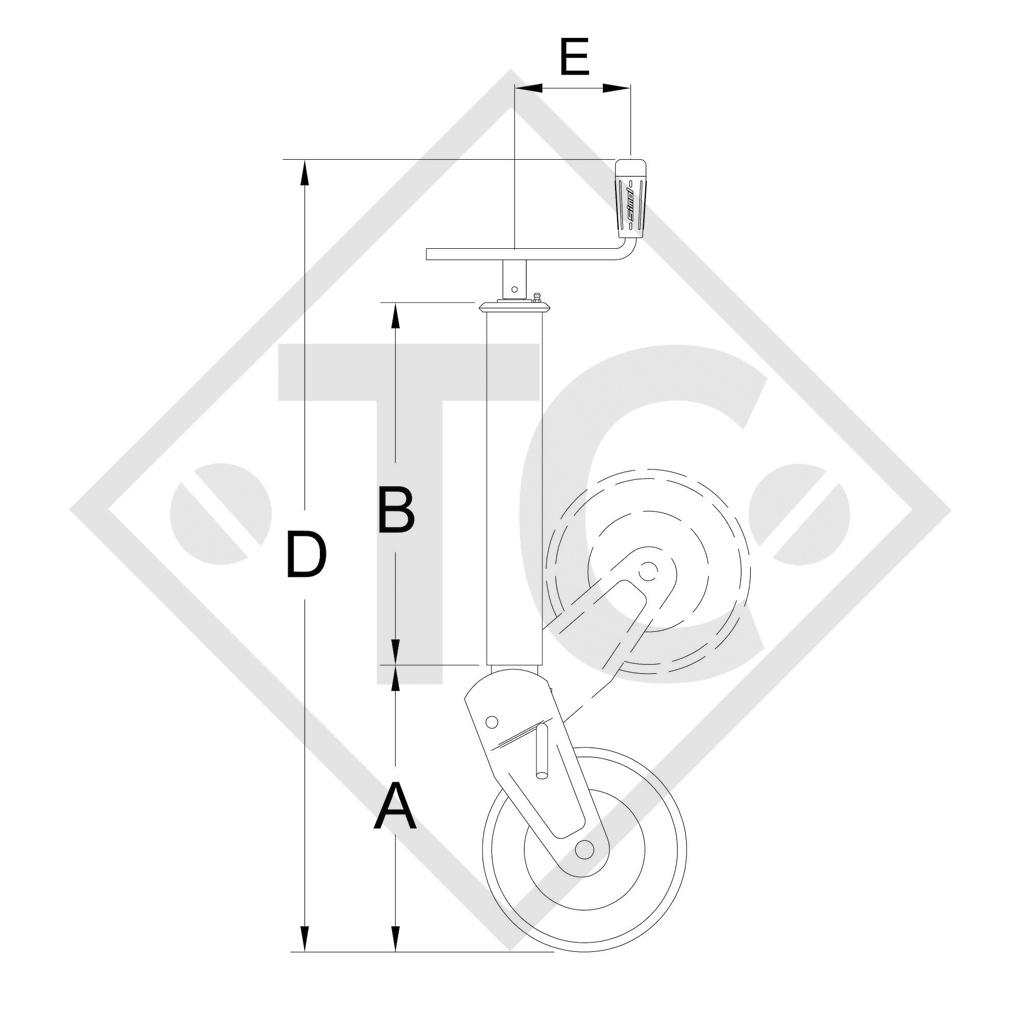

| Dimension A |
355mm |
| Dimension B |
460mm |
| Dimension D |
975mm |
| Dimension E |
185mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
