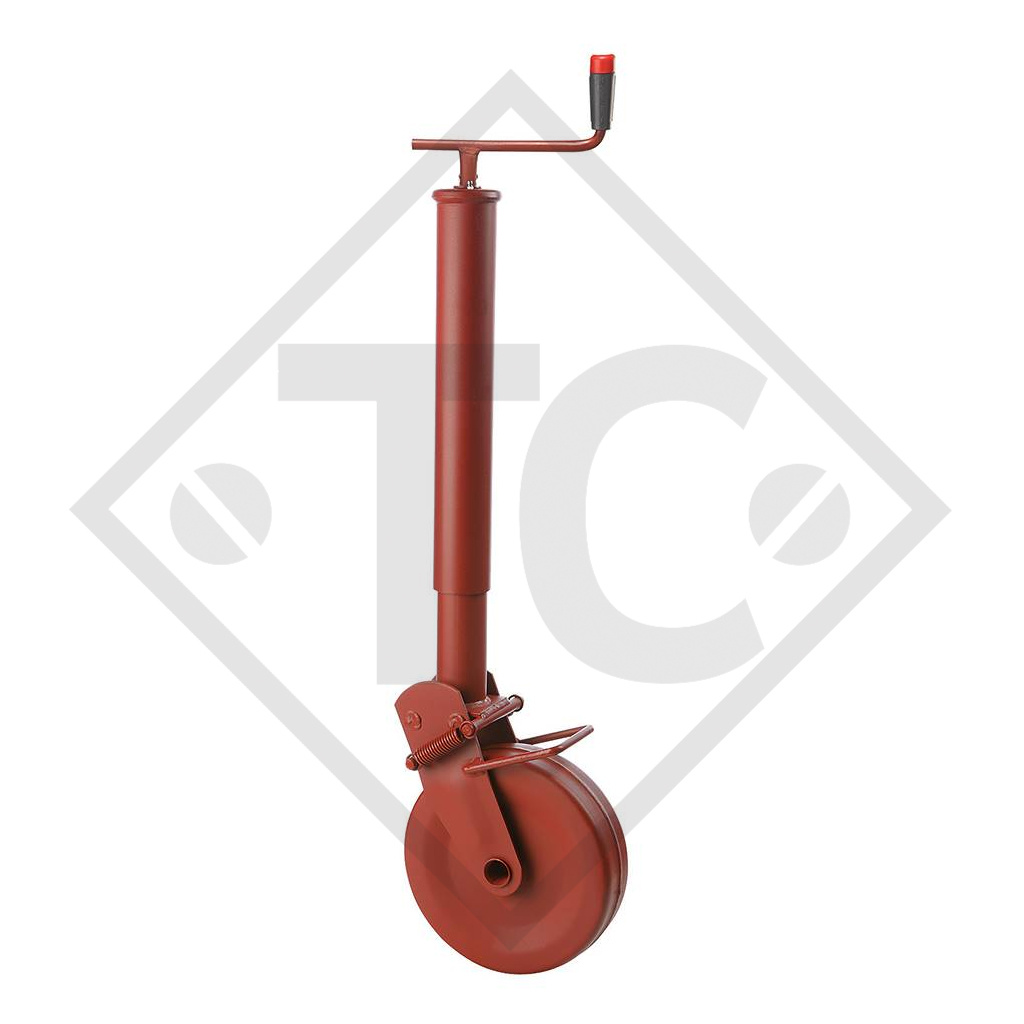

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES SQUARE / OVERRUN DEVICE SQUARE, WITH DRAWBAR SECTION / OVERRUN DEVICES SQUARE WITH DRAWBAR SECTION CRANKED 700 TO 2600KG / OVERRUN DEVICES SQUARE WITH DRAWBAR SECTION CRANKED TYPE 90S/3 - K10 VERS. A TO 1000KG / Jockey wheel □60mm square with semi-automatic support shoe, top crank, type M 195, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 220mm, rim steel, wheel 220x60mm steel plate, maxi. static load 800kg, dimension A 290mm, dimension B 385mm, dimension D 830mm, dimension E 125mm. Read more...
| Outer tube |
□60mm square |
| Screw stroke (extended length) | 220mm |
| Steel wheel | 220x60mm |
| Maxi. static load | 800kg |

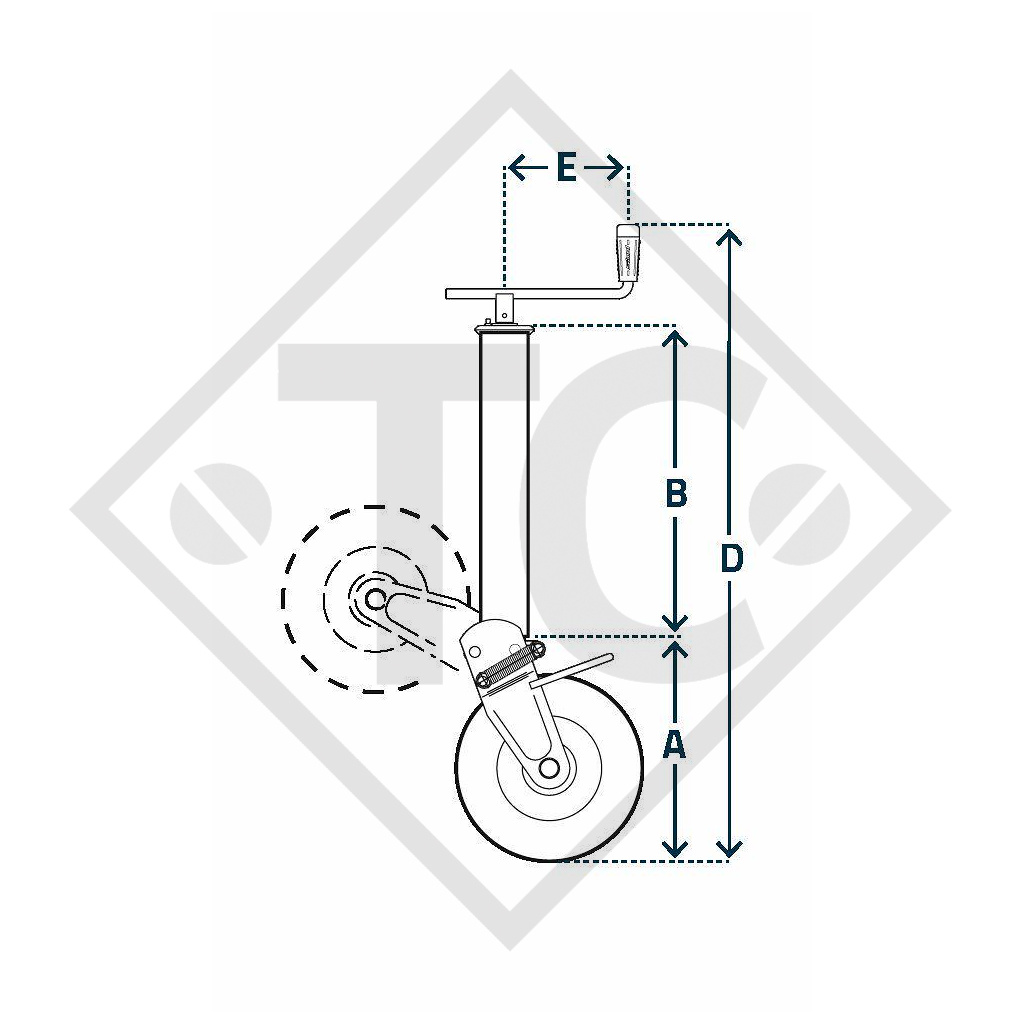

| Dimension A |
290mm |
| Dimension B |
385mm |
| Dimension D |
830mm |
| Dimension E |
125mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
