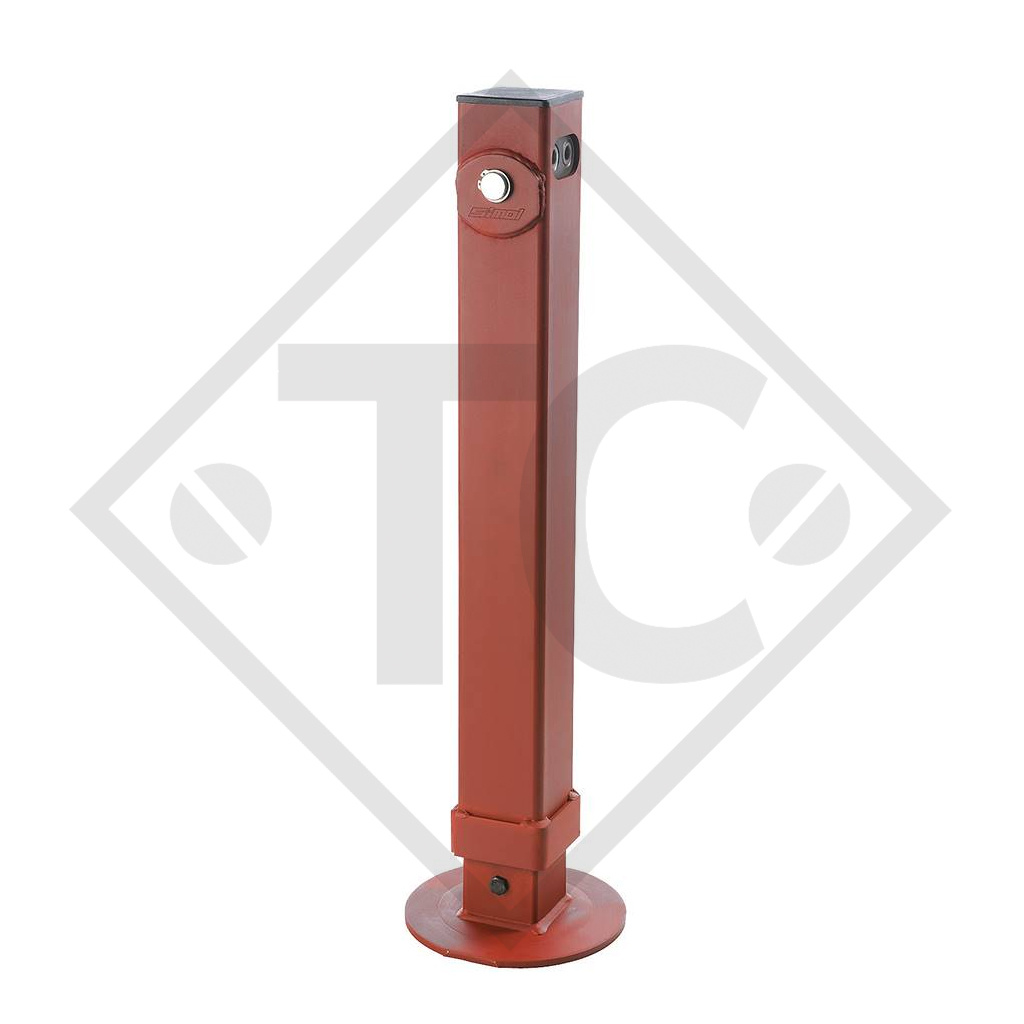

Home / Hydraulic steday leg □90mm square, double acting, with two block valves type H 942, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 400mm, maxi. static load 1950kg, working pressure 100 bar, max. working pressure 200 bar, dimension B 630mm, dimension D 720mm, dimension G 220mm. Read more...
| Outer tube |
□90mm square |
| Screw stroke (extended length) | 400mm |
| Maxi. static load | 1950kg |

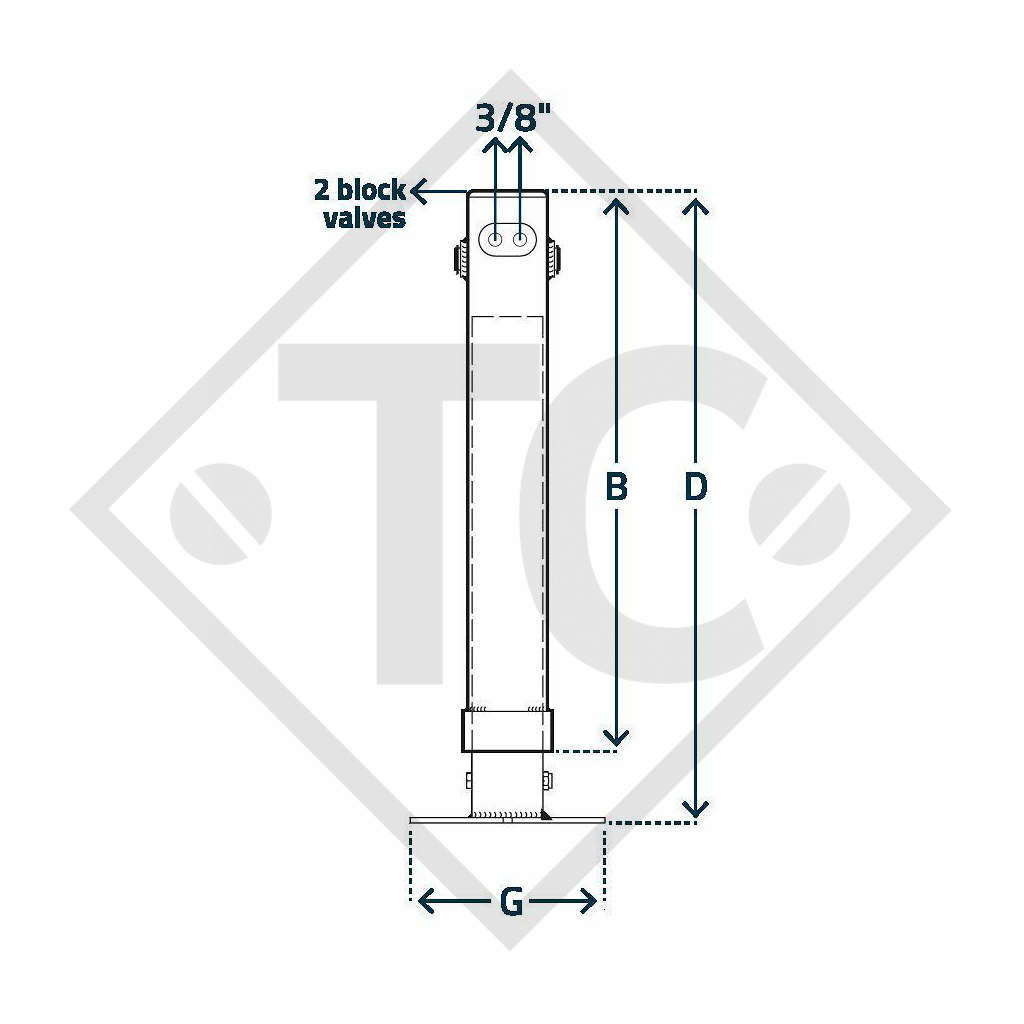

| Dimension B |
630mm |
| Dimension D |
720mm |
| Dimension G |
220mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
