Hydraulic steday leg □100mm square, double acting, with single block valve, type H 1050, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow

SIMOL Hydraulic steday leg □100mm square, double acting, with single block valve, type H 1050, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow

Home / Hydraulic steday leg □100mm square, double acting, with single block valve, type H 1050, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow

screw stroke (extended length) 500mm, maxi. static load 2800kg, working pressure 100 bar, max. working pressure 200 bar, dimension B 730mm, dimension D 820mm, dimension G 280mm. Read more...

Wishlist: Add to comparison:

Price 579,90 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 6-10 working days (Mon-Fri)

- +

Add to cart

Outer tube

□100mm square

Screw stroke (extended length)

500mm

Maxi. static load

2800kg

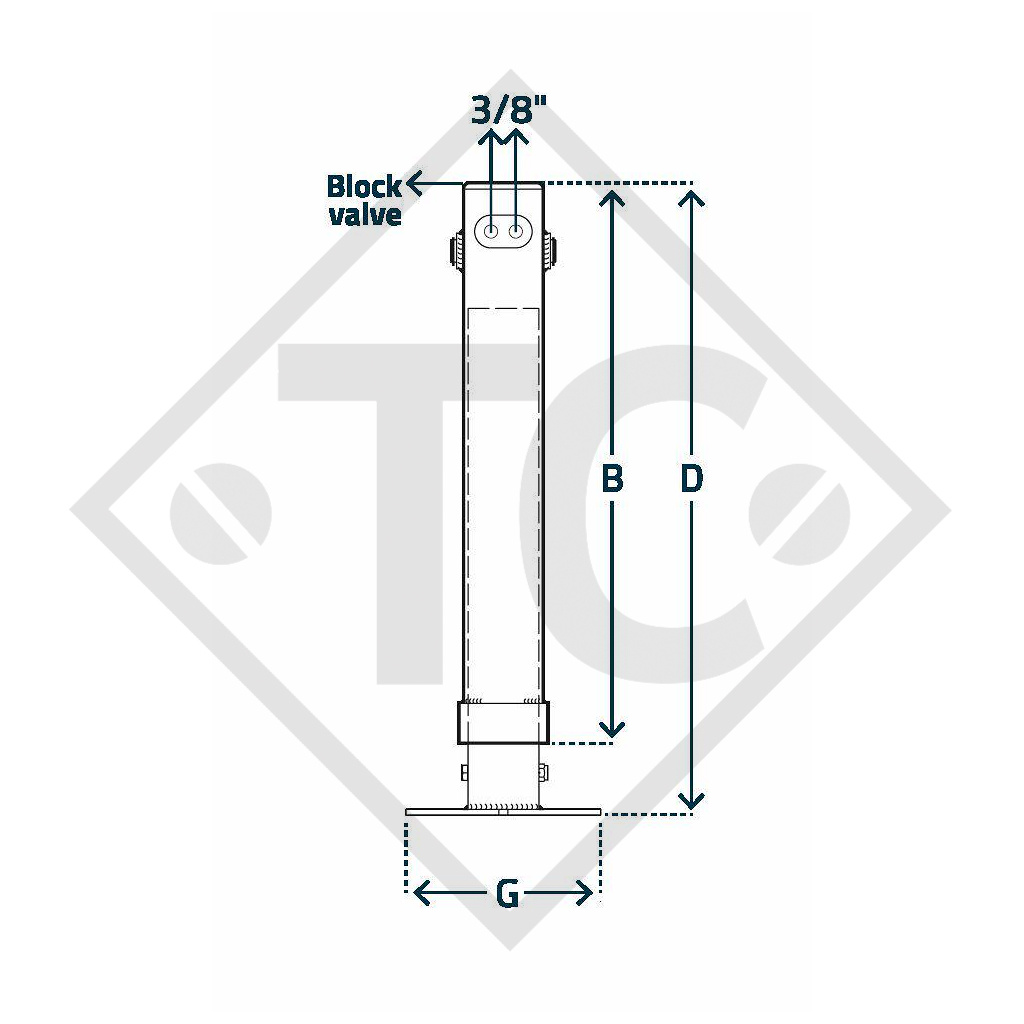

Dimension B

730mm

Dimension D

820mm

Dimension G

280mm

Here, you can find the catalogue page(s) as a convenient PDF download.

SIMOL Hydraulic steday leg □100mm square, double acting, with single block valve, type H 1050, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
