AL-KO Height-adjustable drawbar type 501 VB vers. A for trailers with pneumatic brakes 5000kg

Part no. 1732561
Drawbar cpl. with drawbar section mounted (without hitch components)

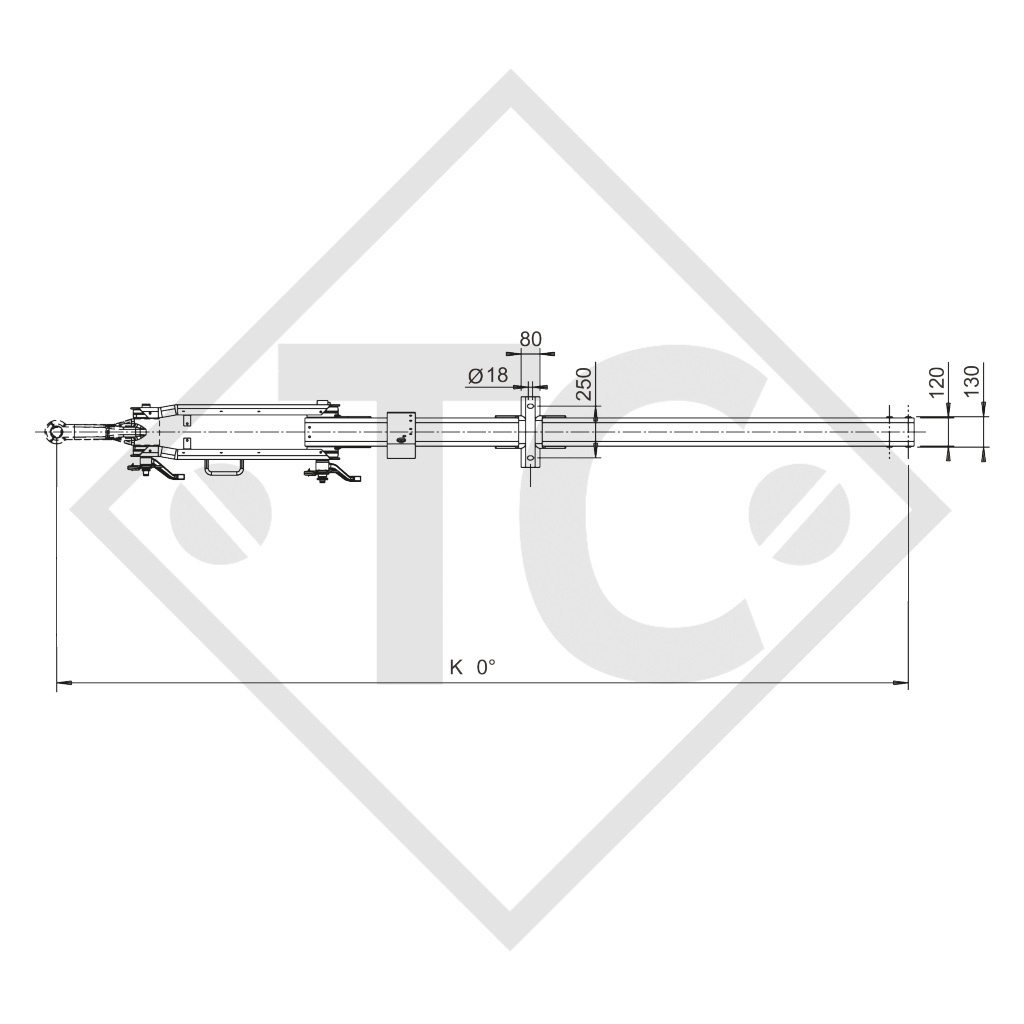

Total length K at 0°: 3420mm with assembly example for drawbar eye DIN Ø 40
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)

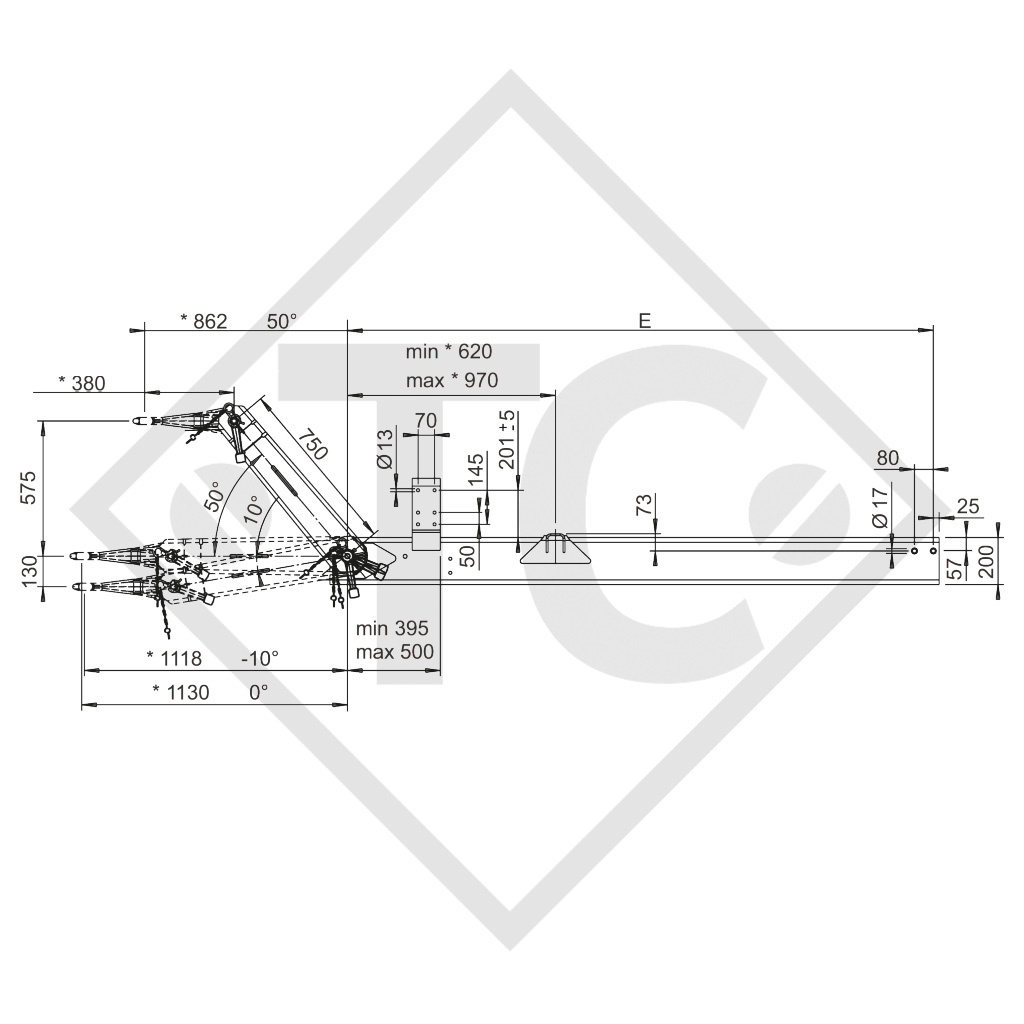

Drawbar length E: 2130mm
Intermediate piece 750mm
Assembly example = X

INSTRUCTION BOOK
SPARE PART LIST 811487

TECHNOLOGY
Drawbar type 501 VB vers. A
Intermediate piece with drawbar section
Permitted nose load 500 kg
Push-on hitch components

ECE type approval no.: E1 55R-01 0883

SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)
