Home / Height-adjustable drawbar type 353 VB vers. G for trailers with pneumatic brakes 3500kg

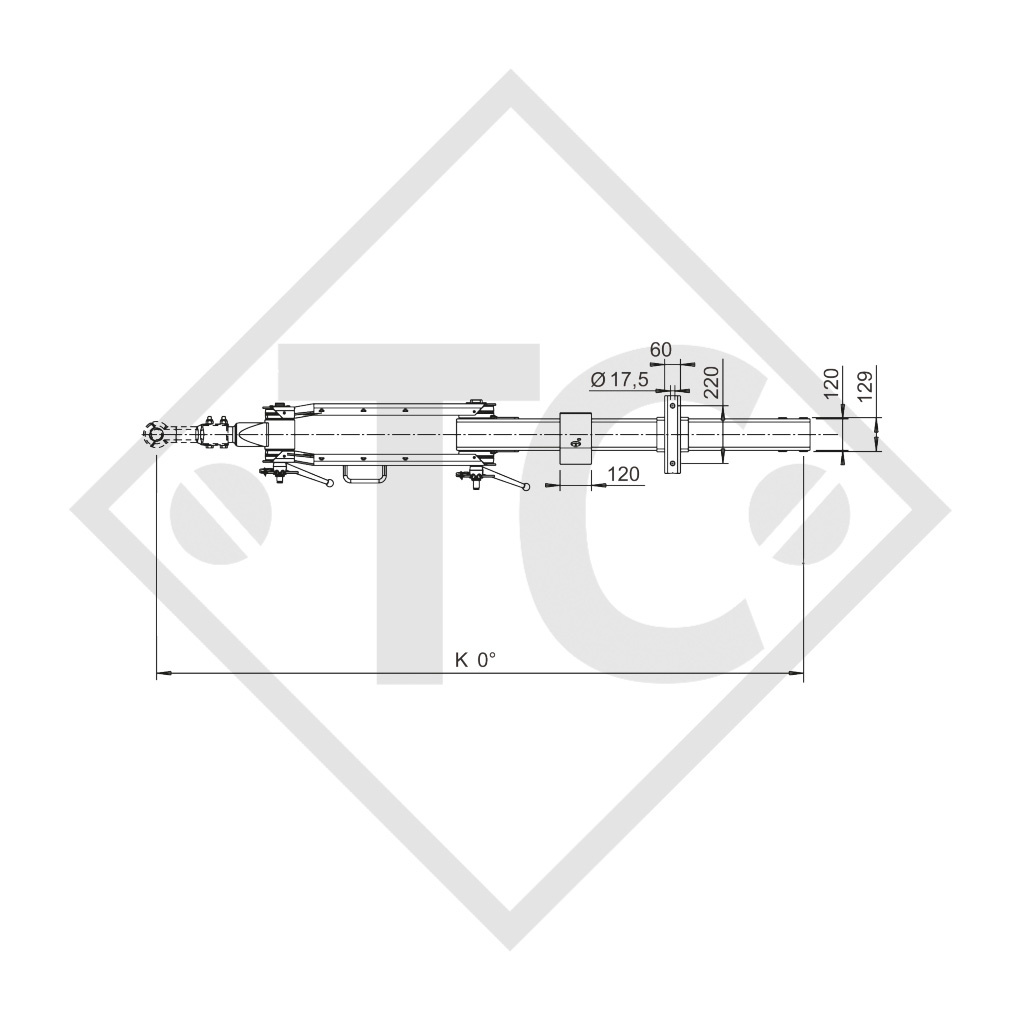

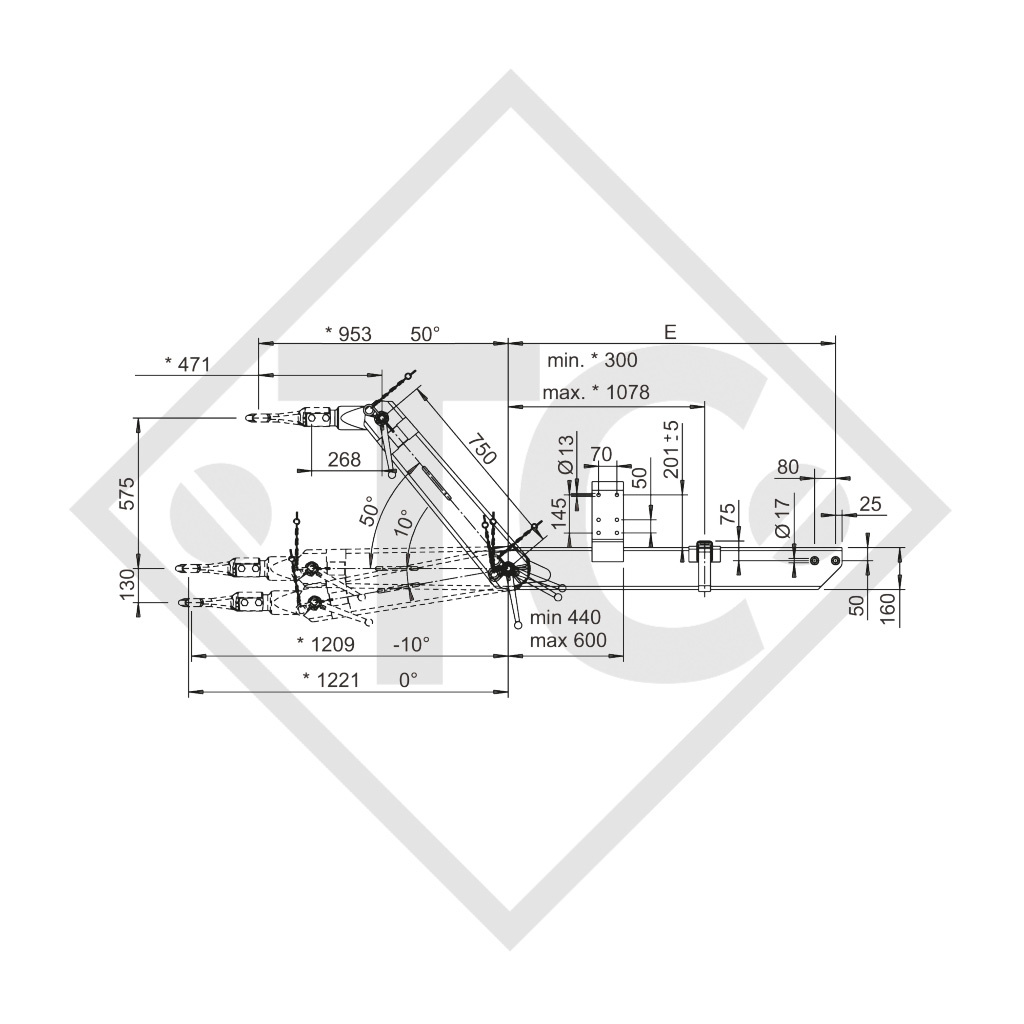

total length K (at 0°) 3190mm, drawbar length E 1970mm, drawbar section 120x160mm, intermediate piece 750mm, perm. nose load 150kg, without hitch components. Read more...
Drawbar cpl. with drawbar section mounted (without hitch components)
INSTRUCTION BOOK
SPARE PART LIST 811551
TECHNOLOGY
Drawbar type 353 VB vers. G

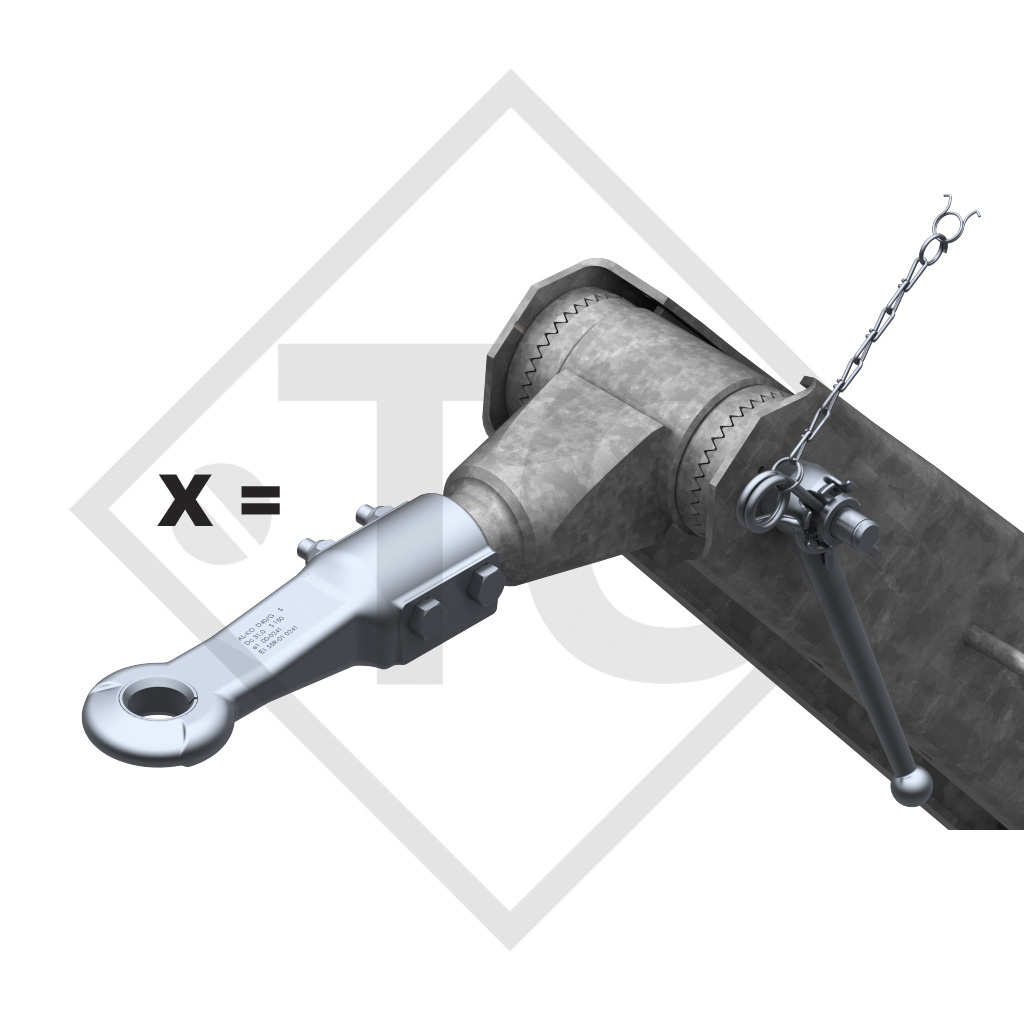

Intermediate piece with drawbar section
Permitted nose load 150 kg
ECE type approval no.:
E1 55R-01 0239
SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)

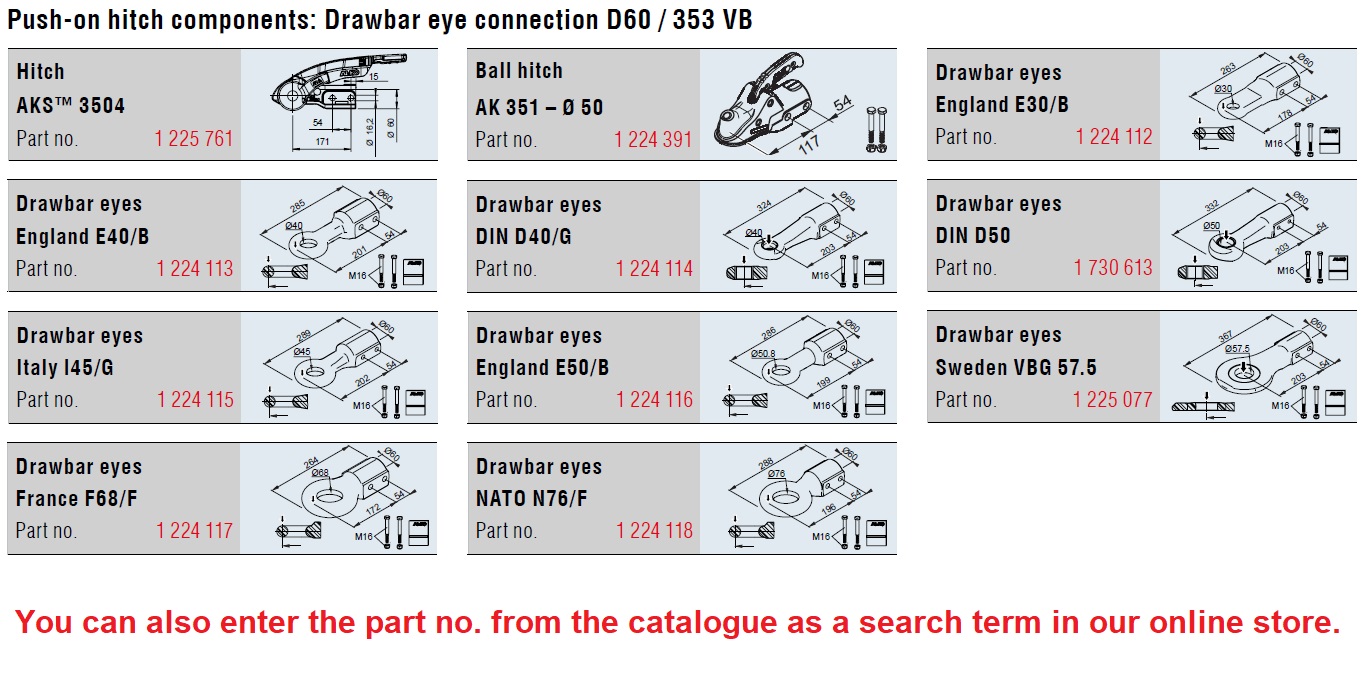

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
