AL-KO Height-adjustable drawbar type 353 VB vers. G for trailers with pneumatic brakes 3500kg

Part no. 20061542

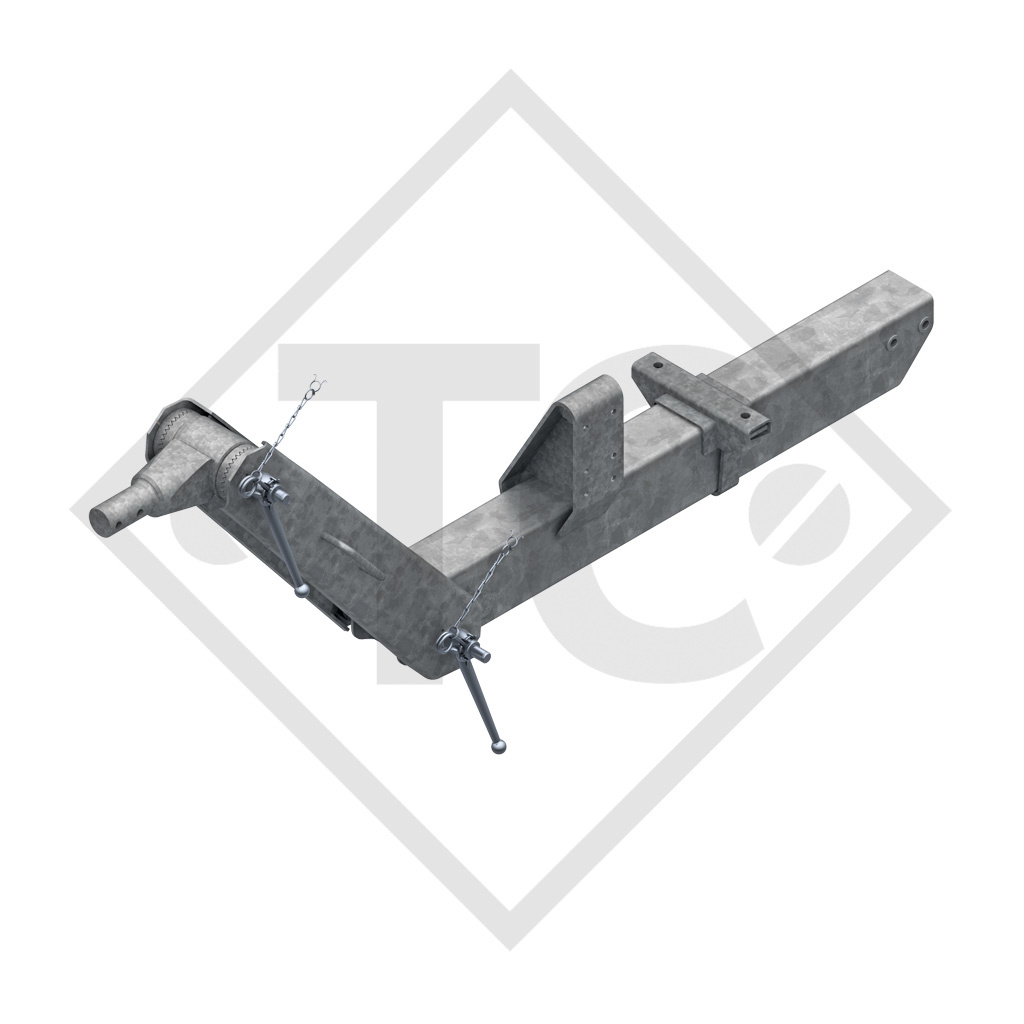

Drawbar cpl. with drawbar section mounted (without hitch components)

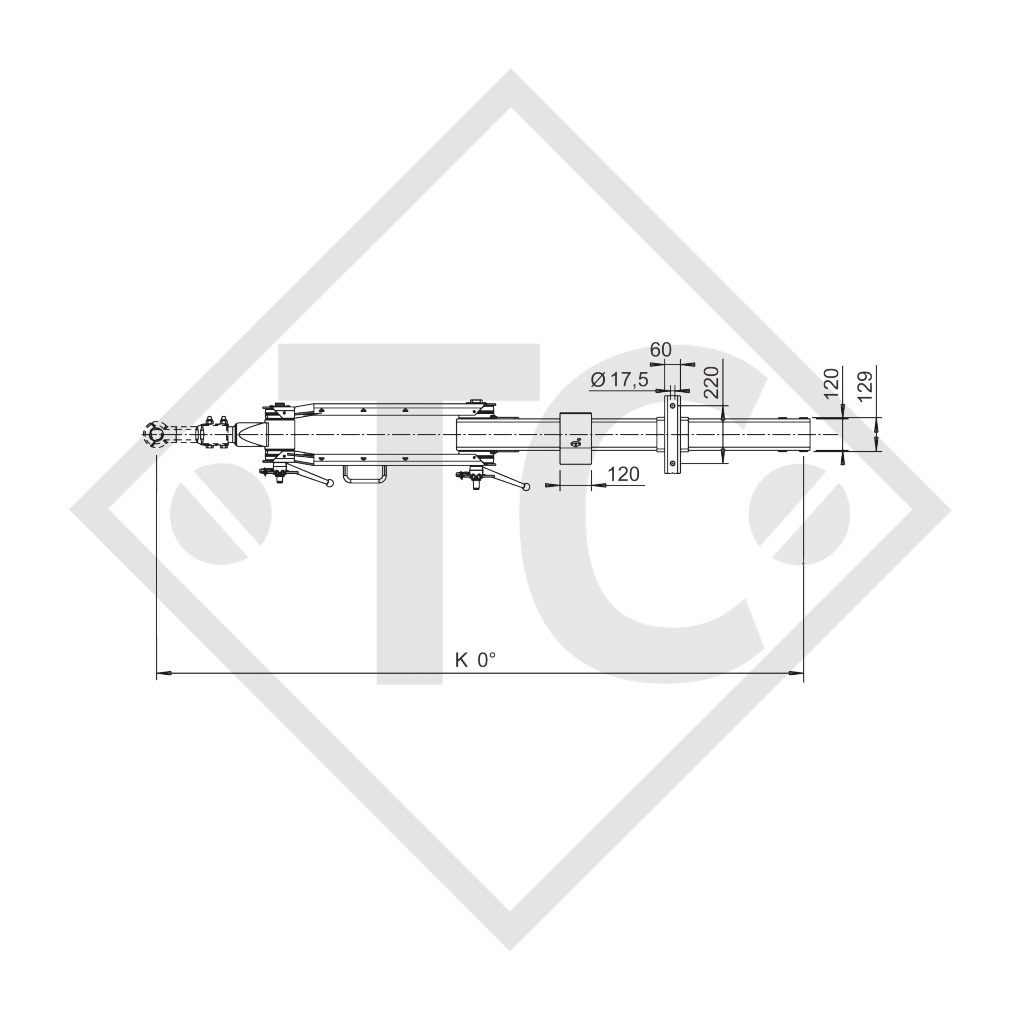

Total length K at 0°: 3350mm with assembly example for drawbar eye DIN D40/G
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)

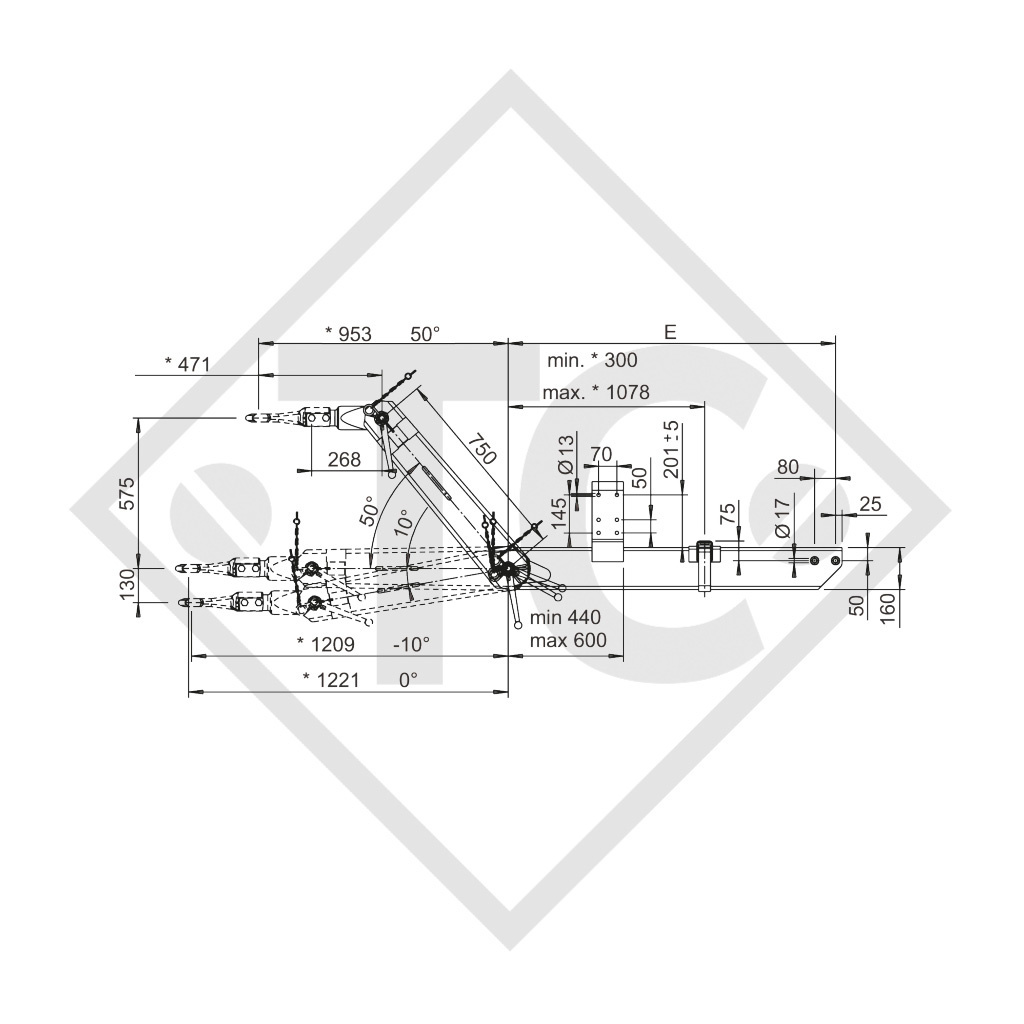

Drawbar length E: 2130mm
Intermediate piece 750mm

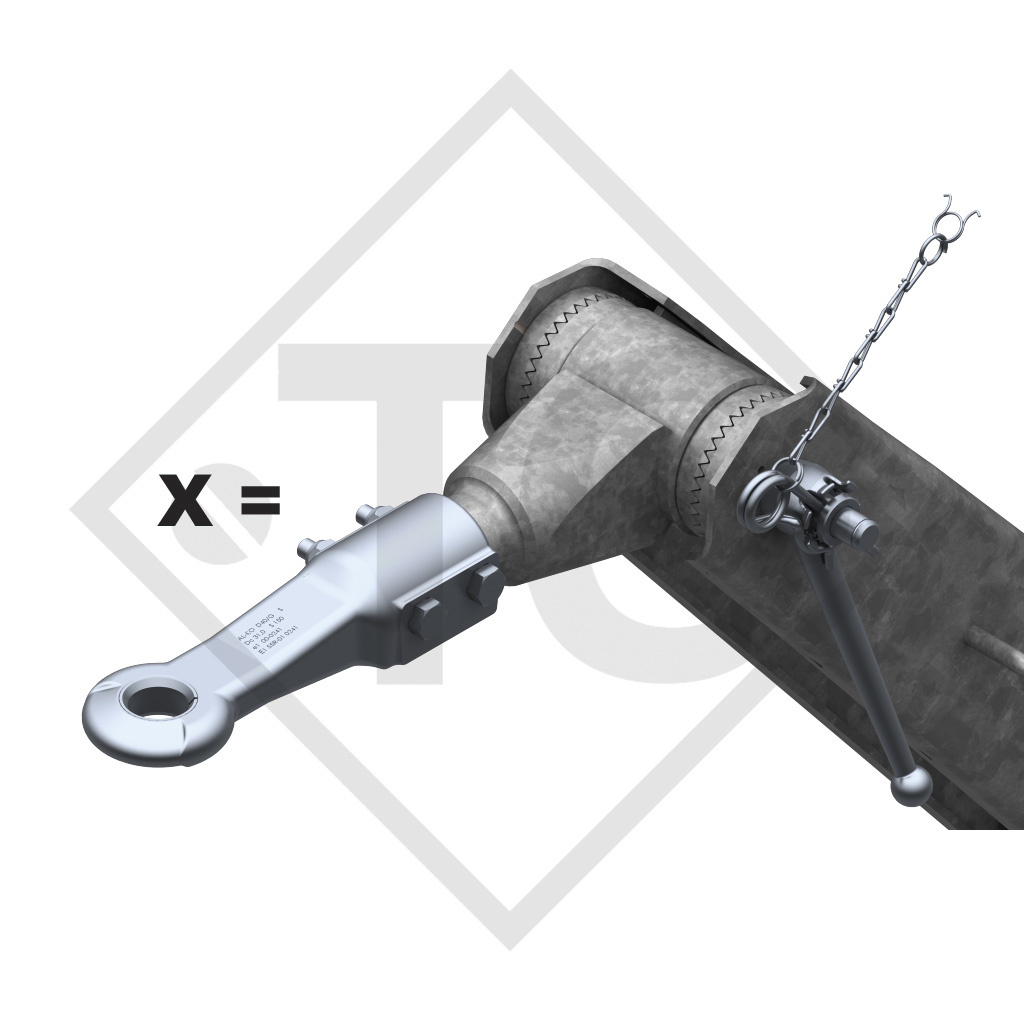

Assembly example = X

INSTRUCTION BOOK
SPARE PART LIST 811551

TECHNOLOGY
Drawbar type 353 VB vers. G
Intermediate piece with drawbar section
Permitted nose load 150 kg
Push-on hitch components

ECE type approval no.: E1 55R-01 0239

SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)
