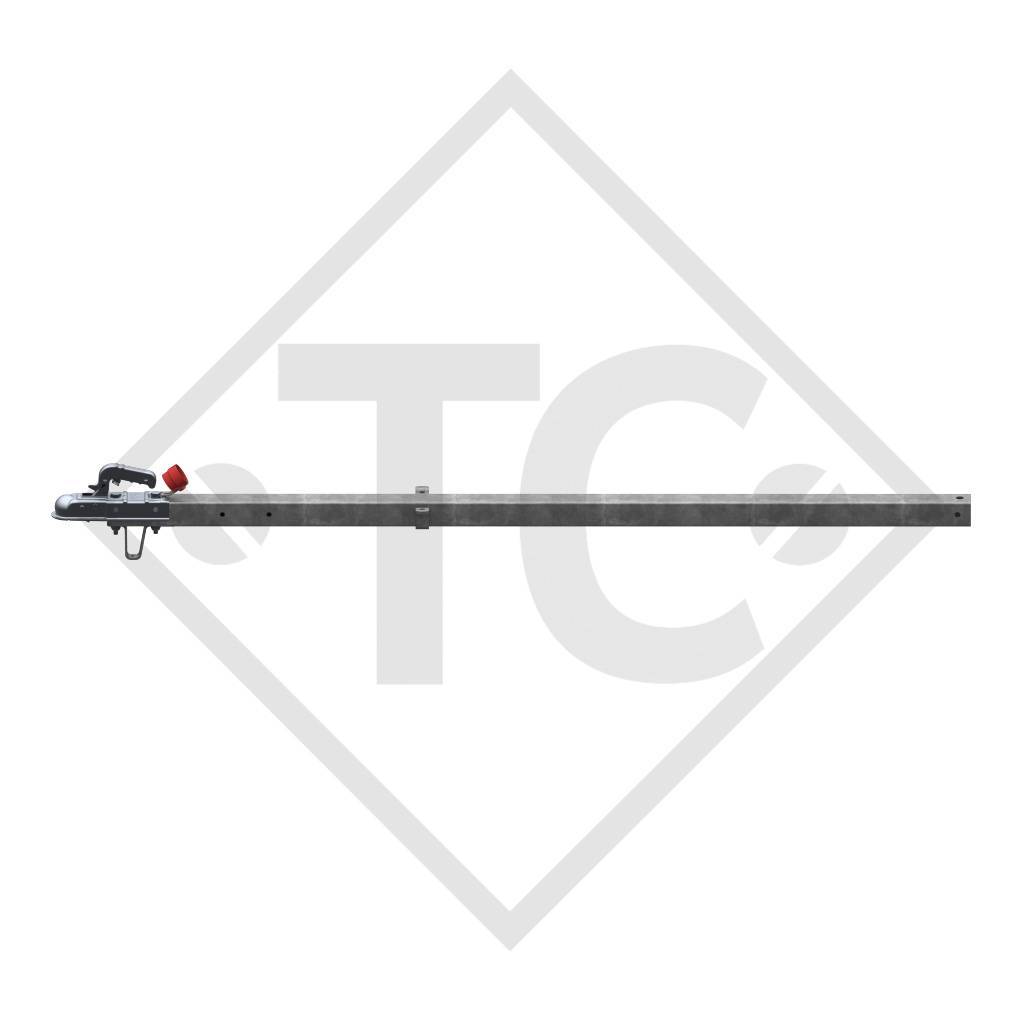

Home / Drawbar type R4 vers. A3 square tube straight up to 750kg
dimension A 3495mm, drawbar section 60x60x4mm, perm. nose load 75kg, coupling head type AK 7, inclusive skid bracket, clamping bracket and plug holder. Read more...
Part no. 1225655
dimension A 3495mm
TECHNOLOGY
Type R4 - vers. A3
GA max. 750 kg
Perm. nose load 75 kg
Coupling head type AK 7
ECE type approval no.: E1 55R-01 0388
YOUR ADVANTAGE
Standard safety indicator
Clamp for jockey wheel, can be retrofitted
SCOPE OF DELIVERY

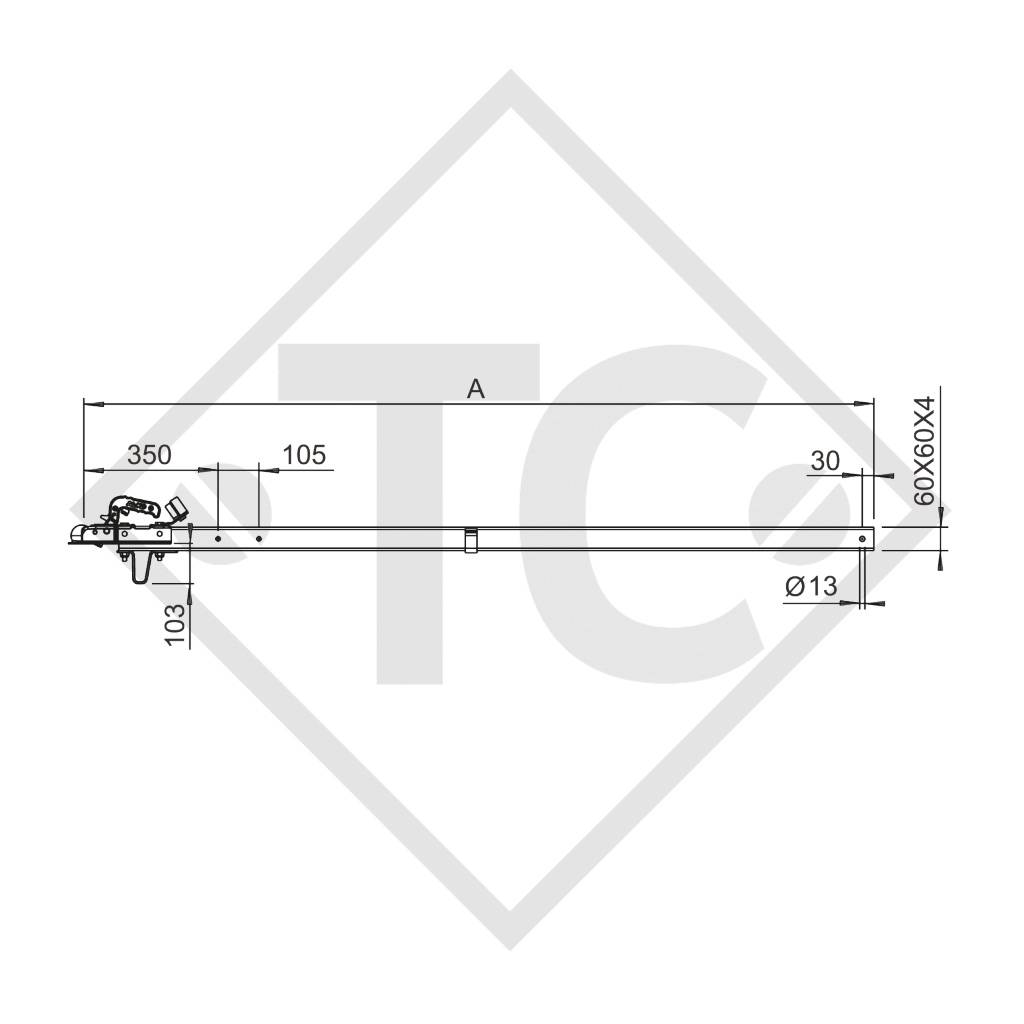

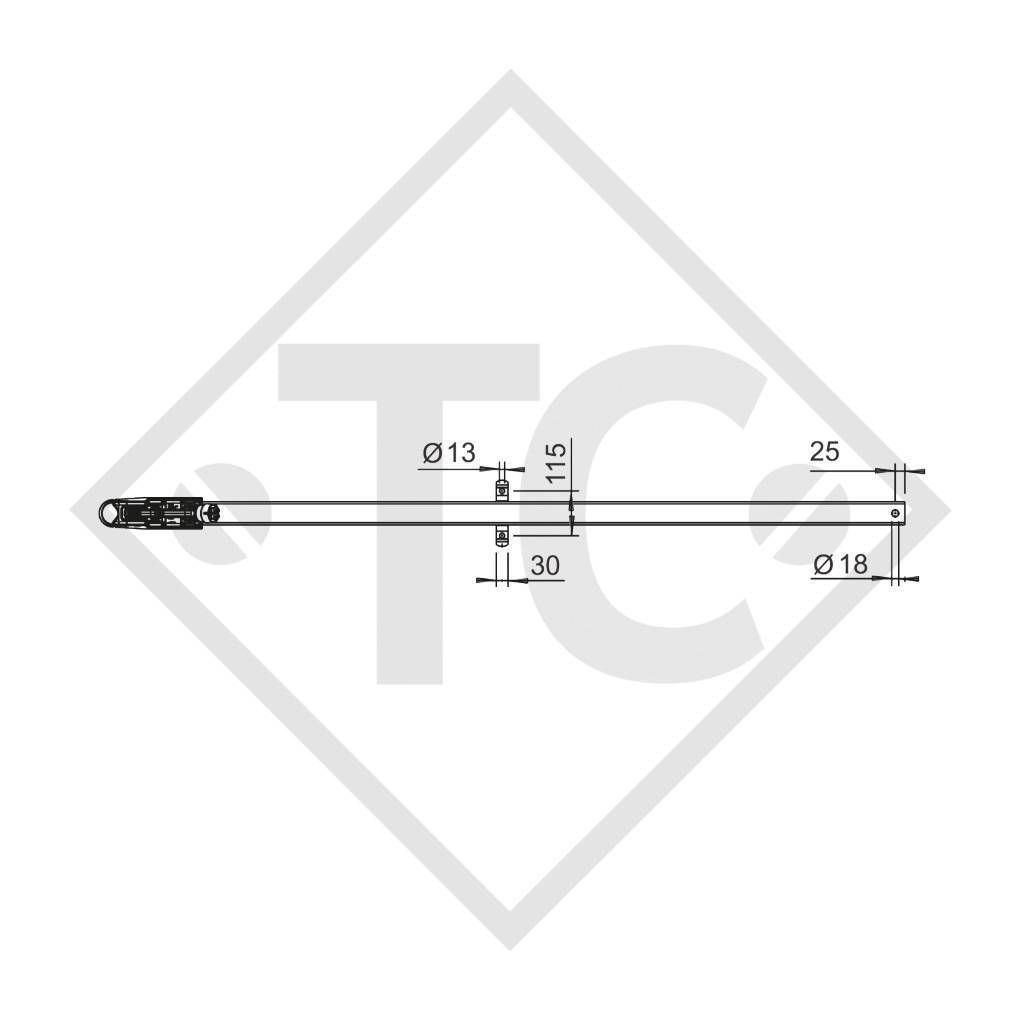

See drawing, inclusive
Skid bracket 203 037
Clamping bracket 589 087
Plug holder 218 260 00 04
SURFACE TREATMENT
Hot-dip galvanised
