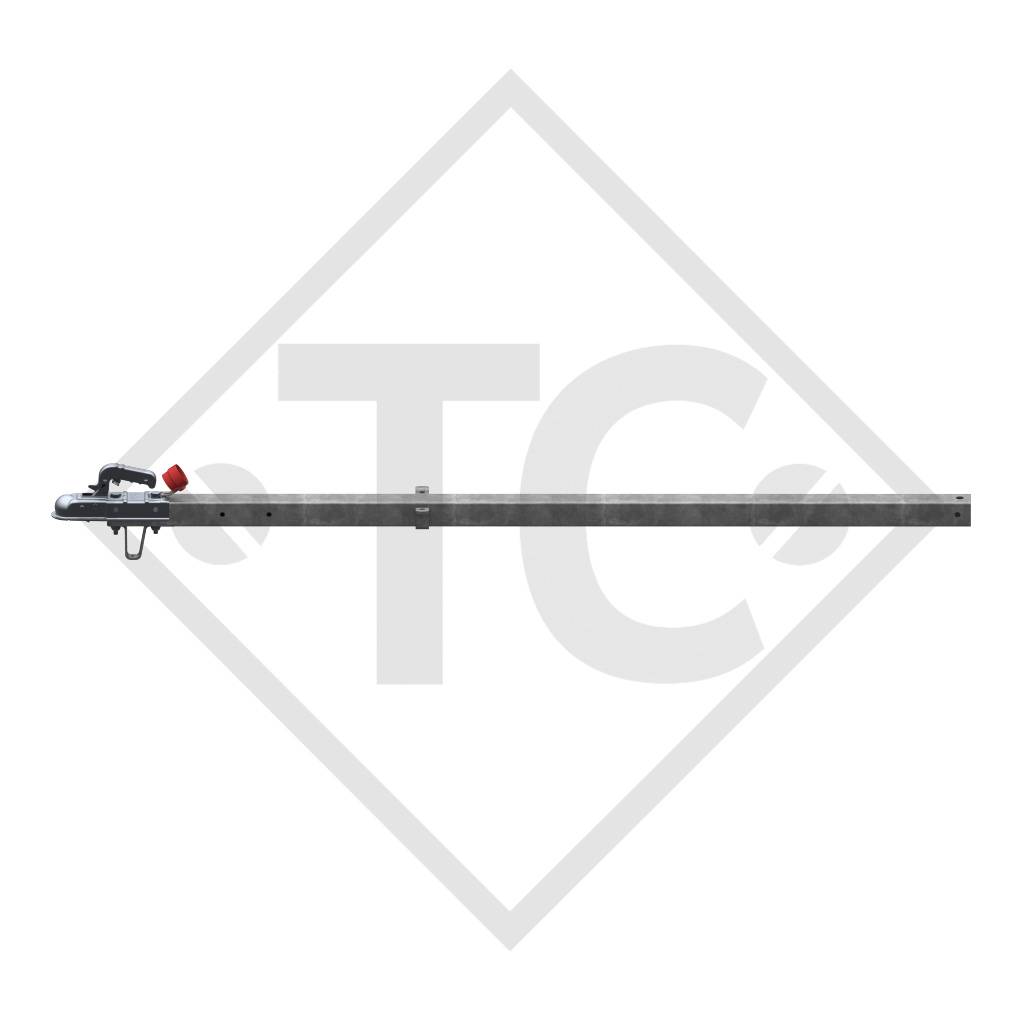

AL-KO Drawbar type R4 vers. A1 square tube straight up to 750kg

Part no. 1213742 (1336121)
dimension A 3295mm

INSTALLATION MANUAL

TECHNOLOGY
Type R4 - vers. A1
GA max. 750 kg
Perm. nose load 75 kg
Coupling head type AK 7

ECE type approval no.: E1 55R-01 0388

YOUR ADVANTAGE
Standard safety indicator
Clamp for jockey wheel, can be retrofitted

SCOPE OF DELIVERY

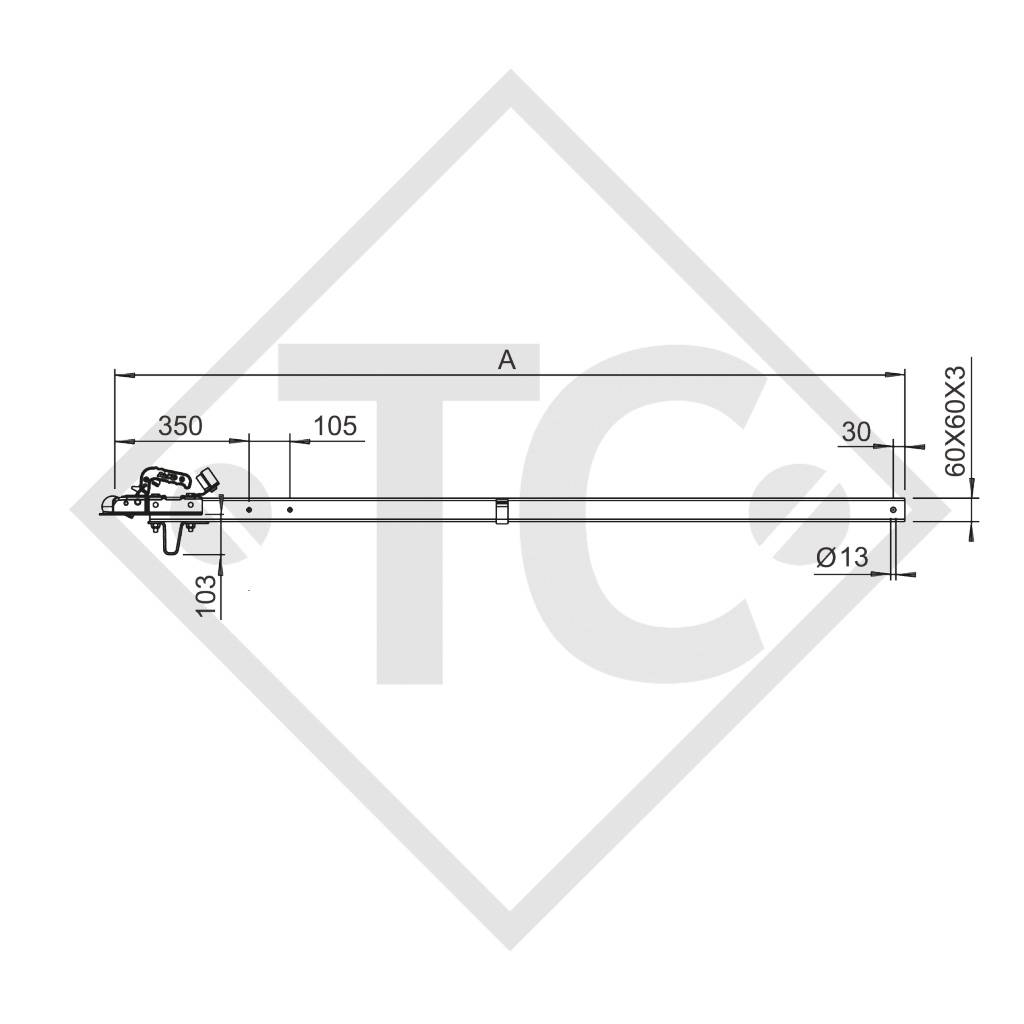

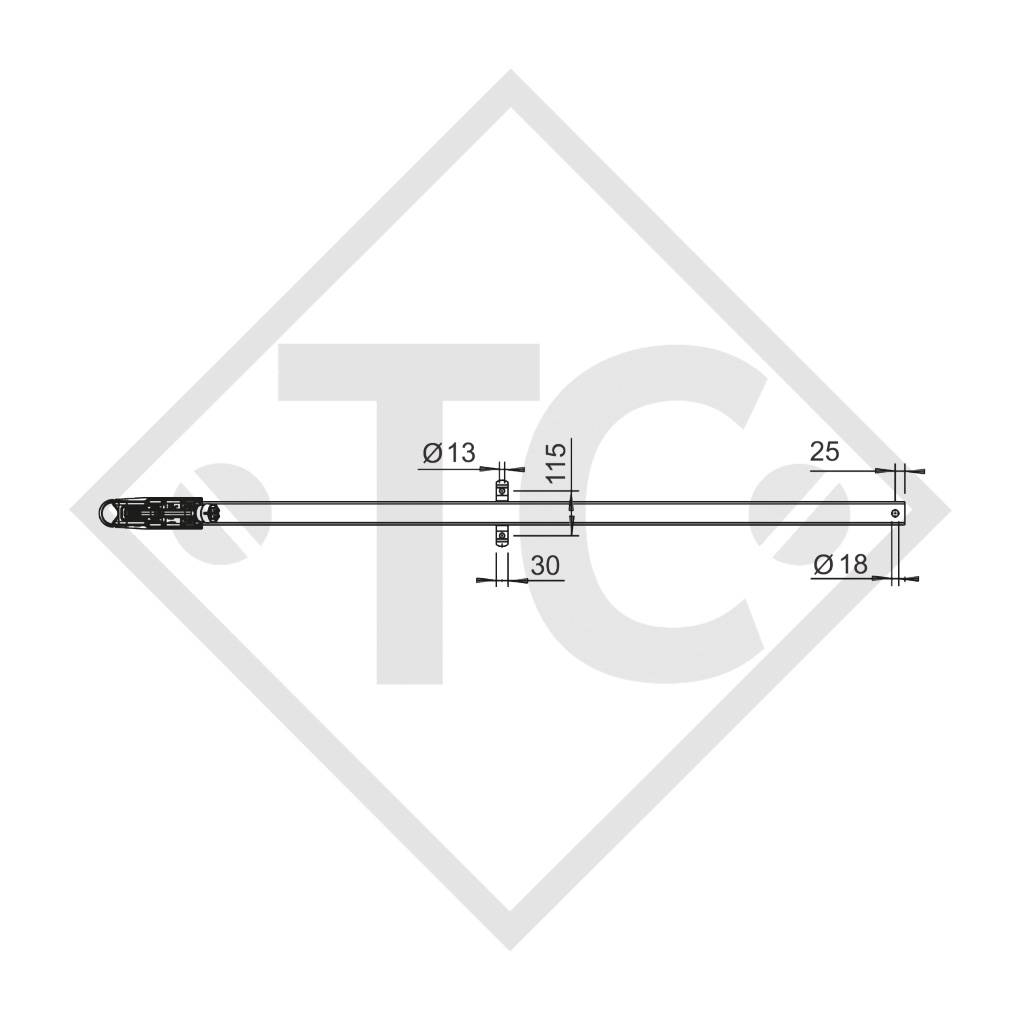

See drawing, inclusive
Skid bracket 203 037
Clamping bracket 589 087
Plug holder 218 260 00 04

SURFACE TREATMENT
Hot-dip galvanised
