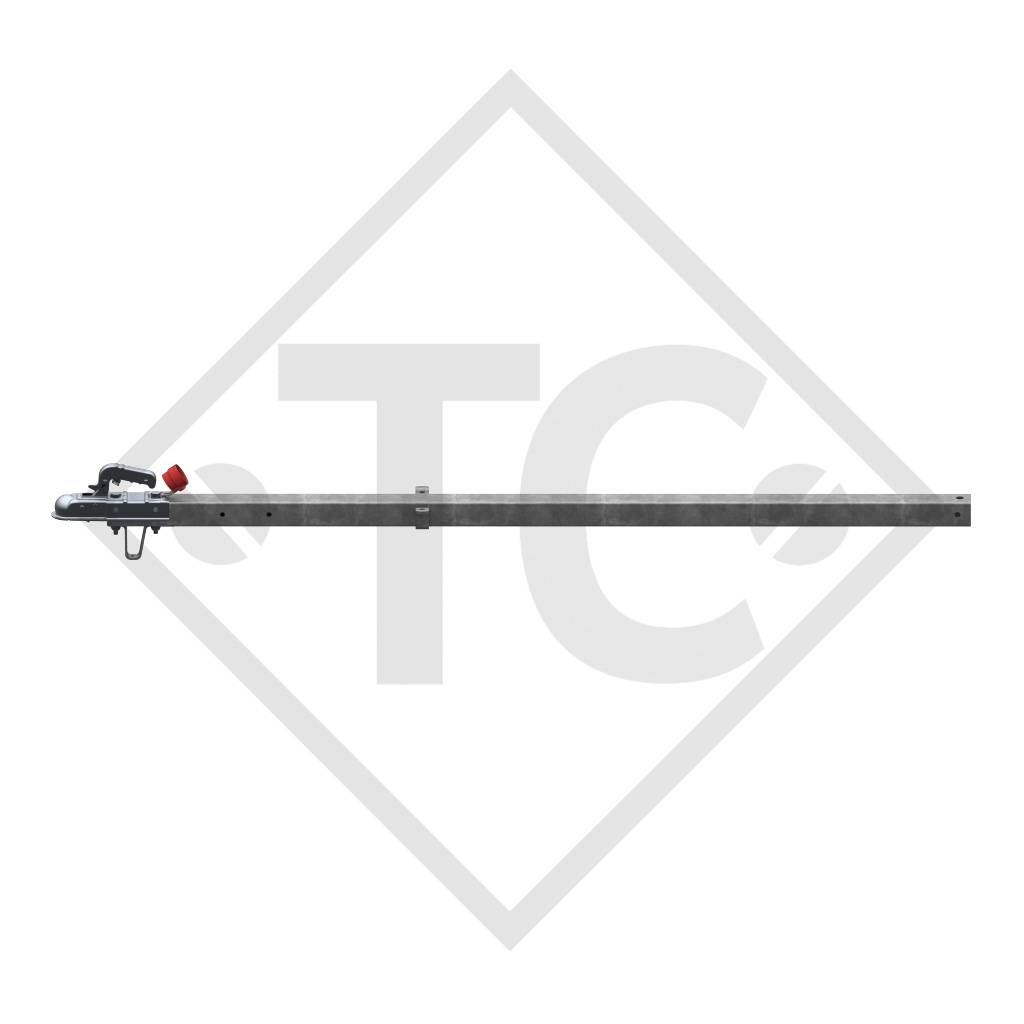

Drawbar type R4 vers. A4 square tube straight up to 750kg

dimension A 2515mm, drawbar section 60x60x5mm, perm. nose load 75kg, coupling head type AK 7, inclusive skid bracket, clamping bracket and plug holder. Read more...

Wishlist: Add to comparison:

Price 310,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1225042

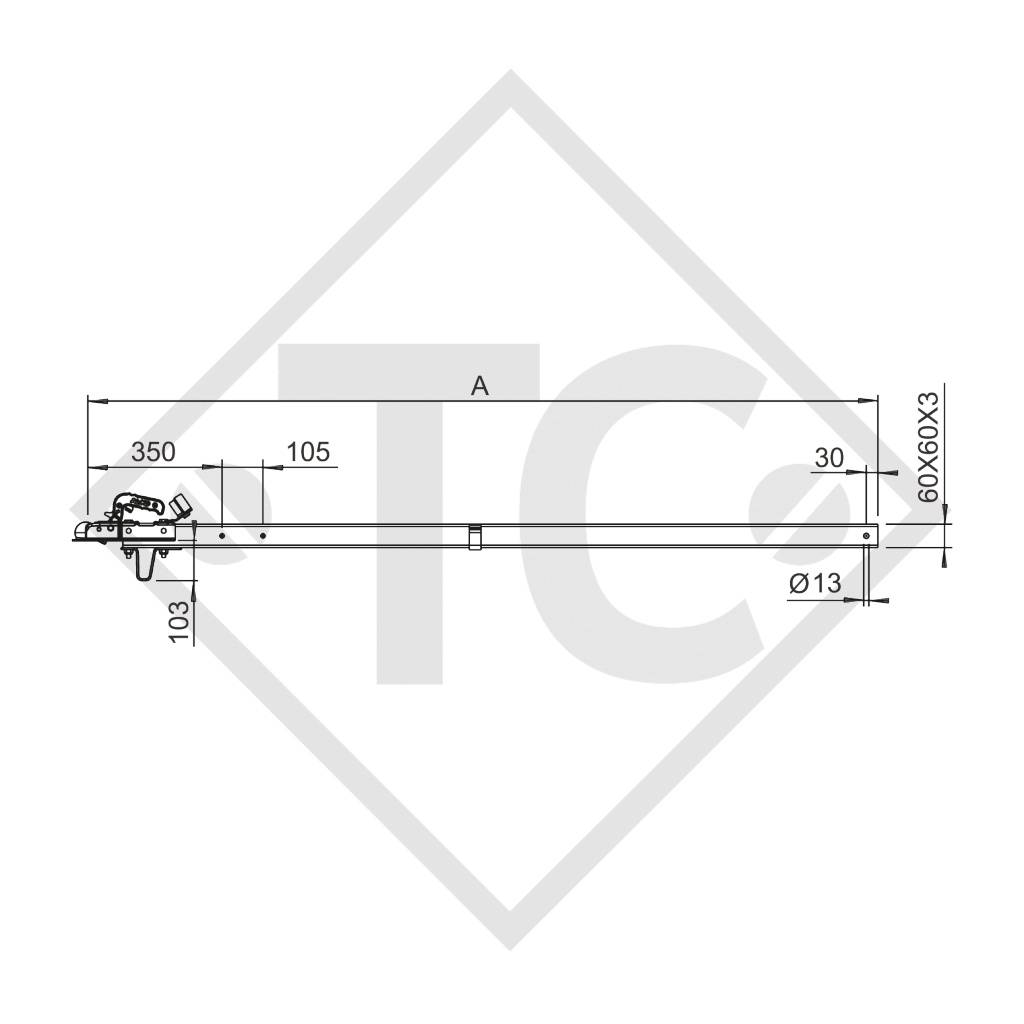

dimension A 2515mm

INSTALLATION MANUAL

TECHNOLOGY
Type R4 - vers. A4
GA max. 750 kg
Perm. nose load 75 kg
Coupling head type AK 7 V

ECE type approval no.: E1 55R-01 0388

YOUR ADVANTAGE
Standard safety indicator
Clamp for jockey wheel, can be retrofitted

SCOPE OF DELIVERY

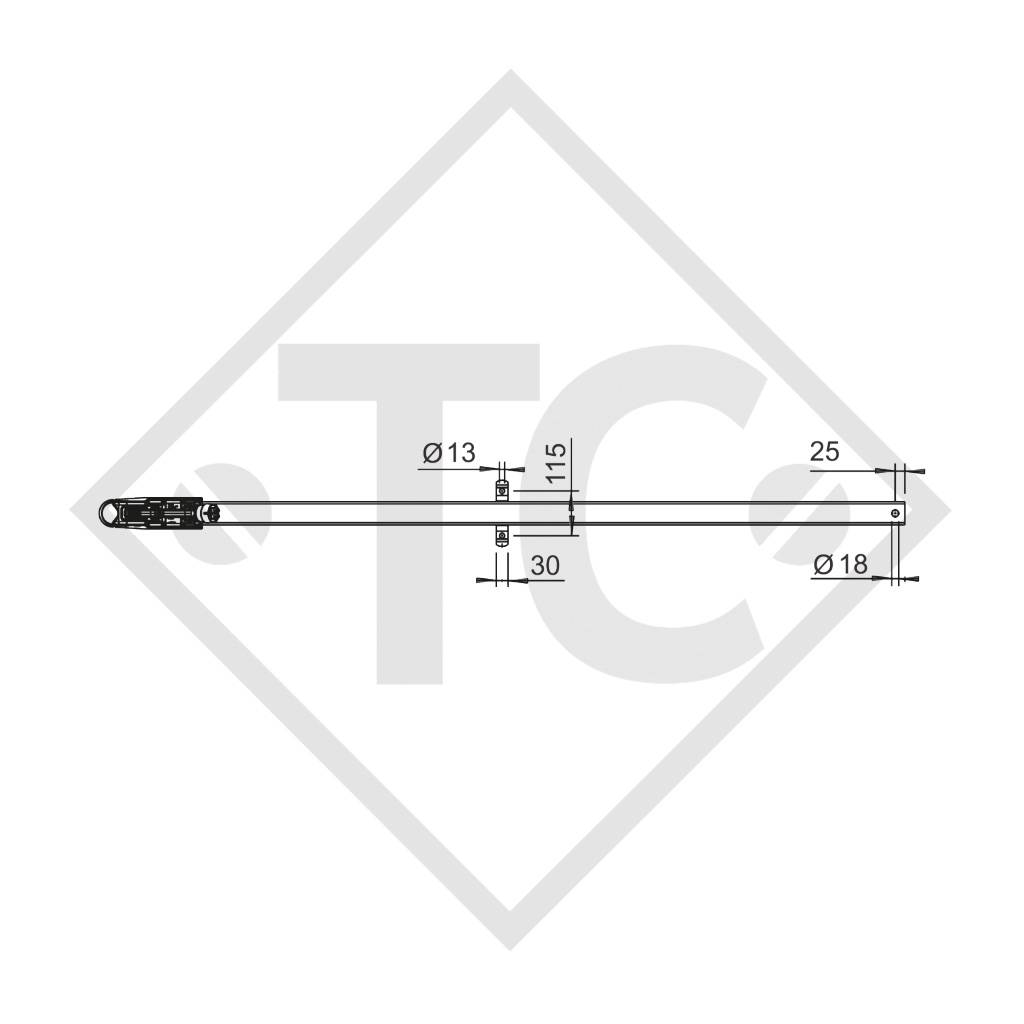

See drawing, inclusive
Skid bracket 203 037
Clamping bracket 589 087
Plug holder 218 260 00 04

SURFACE TREATMENT
Hot-dip galvanised

AL-KO Drawbar type R4 vers. A4 square tube straight up to 750kg
