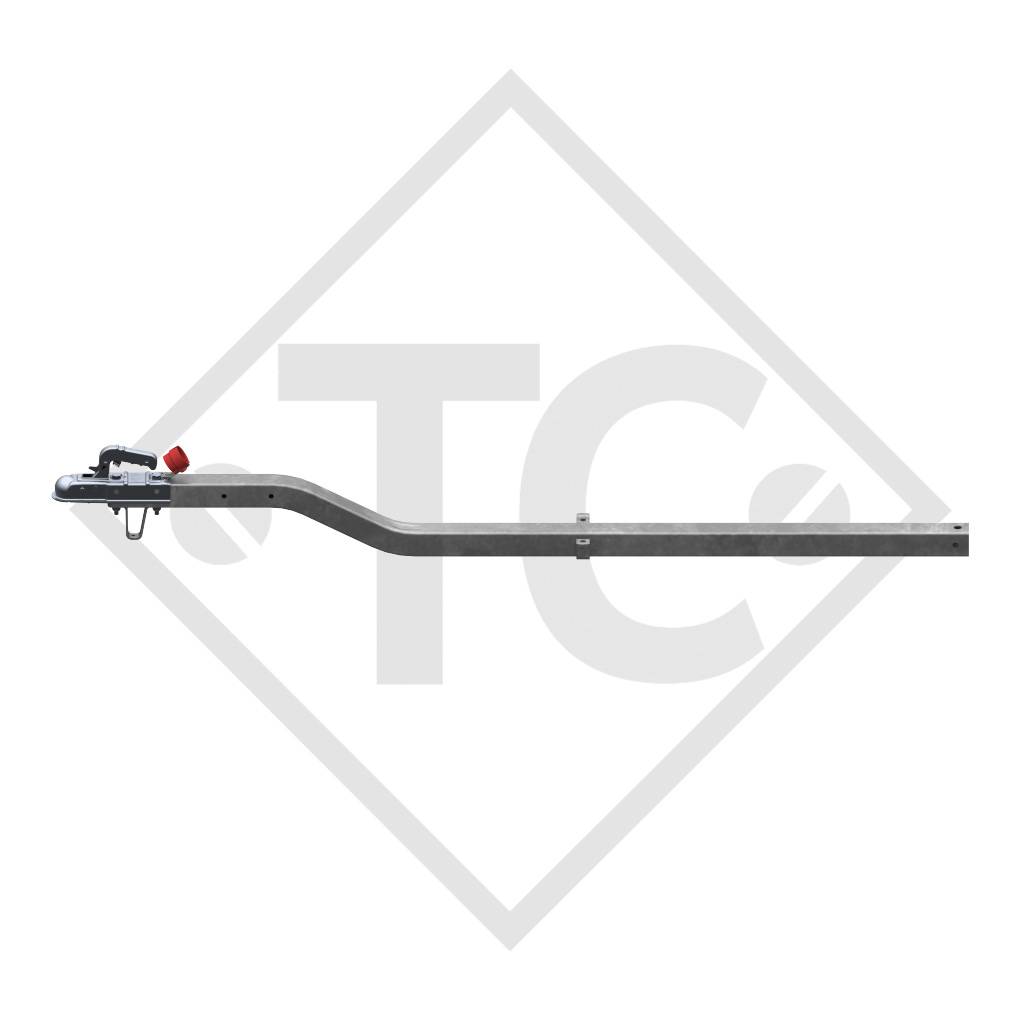

AL-KO Drawbar type K4 vers. A1 square tube cranked up to 750kg

Part no. 20035106

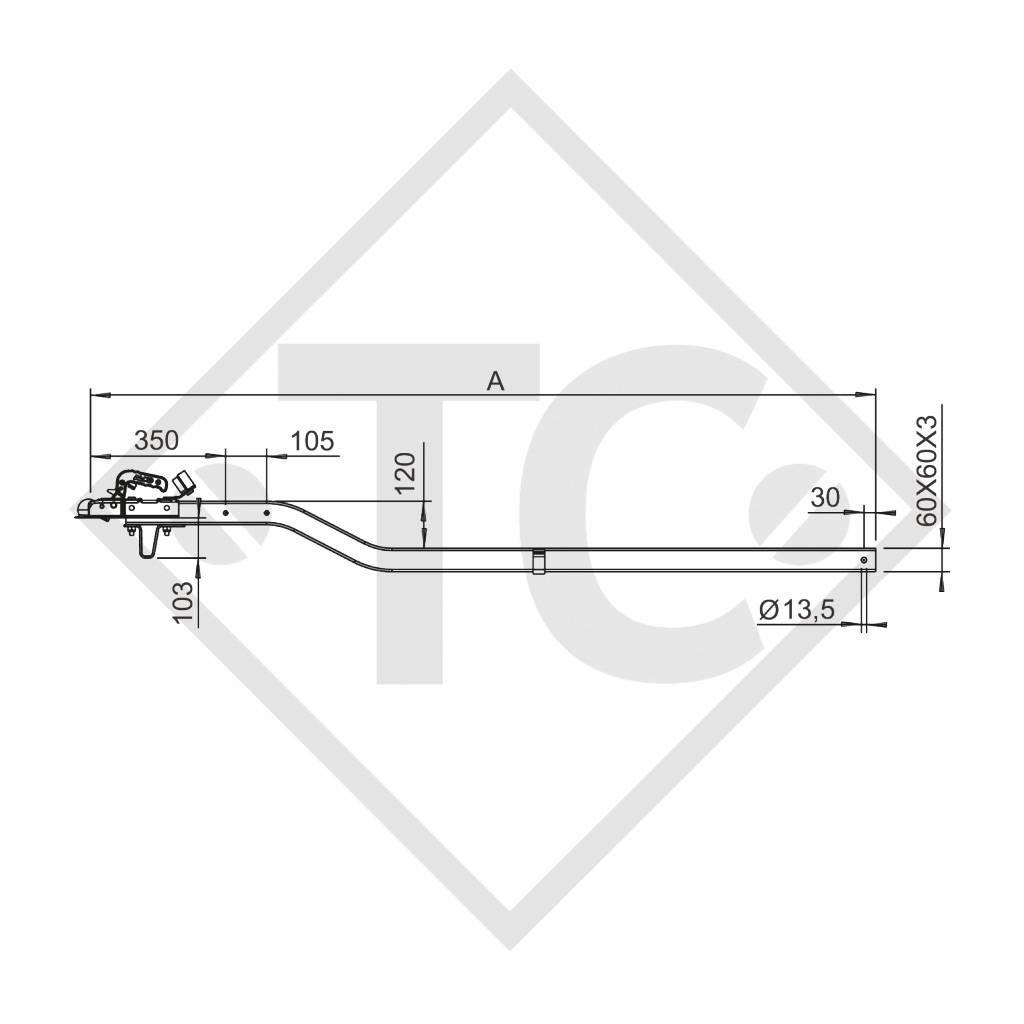

dimension A 2330mm

INSTALLATION MANUAL

TECHNOLOGY
Type K4 - vers. A1
GA max. 750 kg
Perm. nose load 75 kg
Coupling head type AK 7

ECE type approval no.: E1 55R-01 0914

YOUR ADVANTAGE
Standard safety indicator
Clamp for jockey wheel, can be retrofitted

SCOPE OF DELIVERY

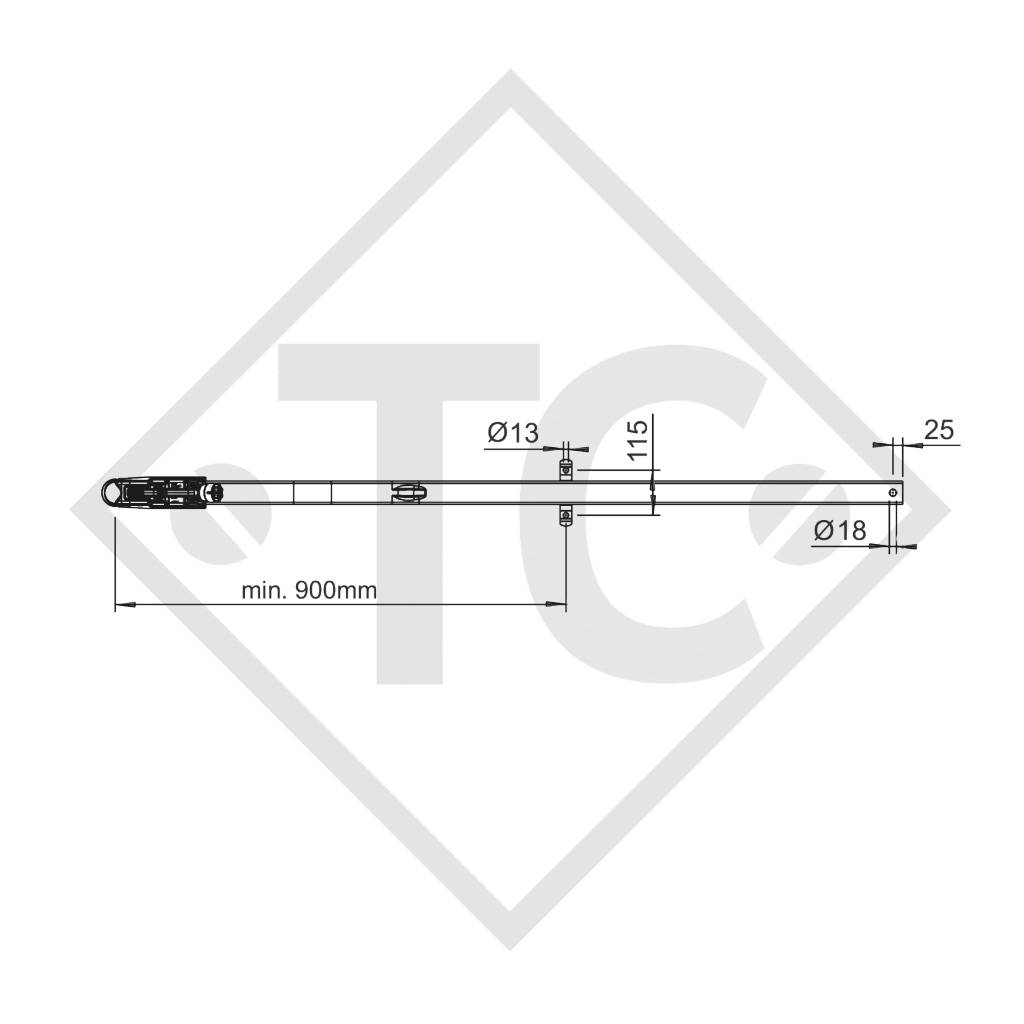

See drawing, inclusive
Skid bracket 203 037
Clamping bracket 589 087
Plug holder 218 260 00 04

SURFACE TREATMENT
Hot-dip galvanised
