total length A 2300mm, dimension F 186mm, nose load 150kg, suitable for overrun device top installation type 2,8VB/1-C. Read more...
Part no. per pair 249392
| Towbar connection |
| Type | 351T |
| Test code | ECE: E1 55R-01 0539 |
| Gross weight trailer | 3500kg |
| Nose load | 150kg |

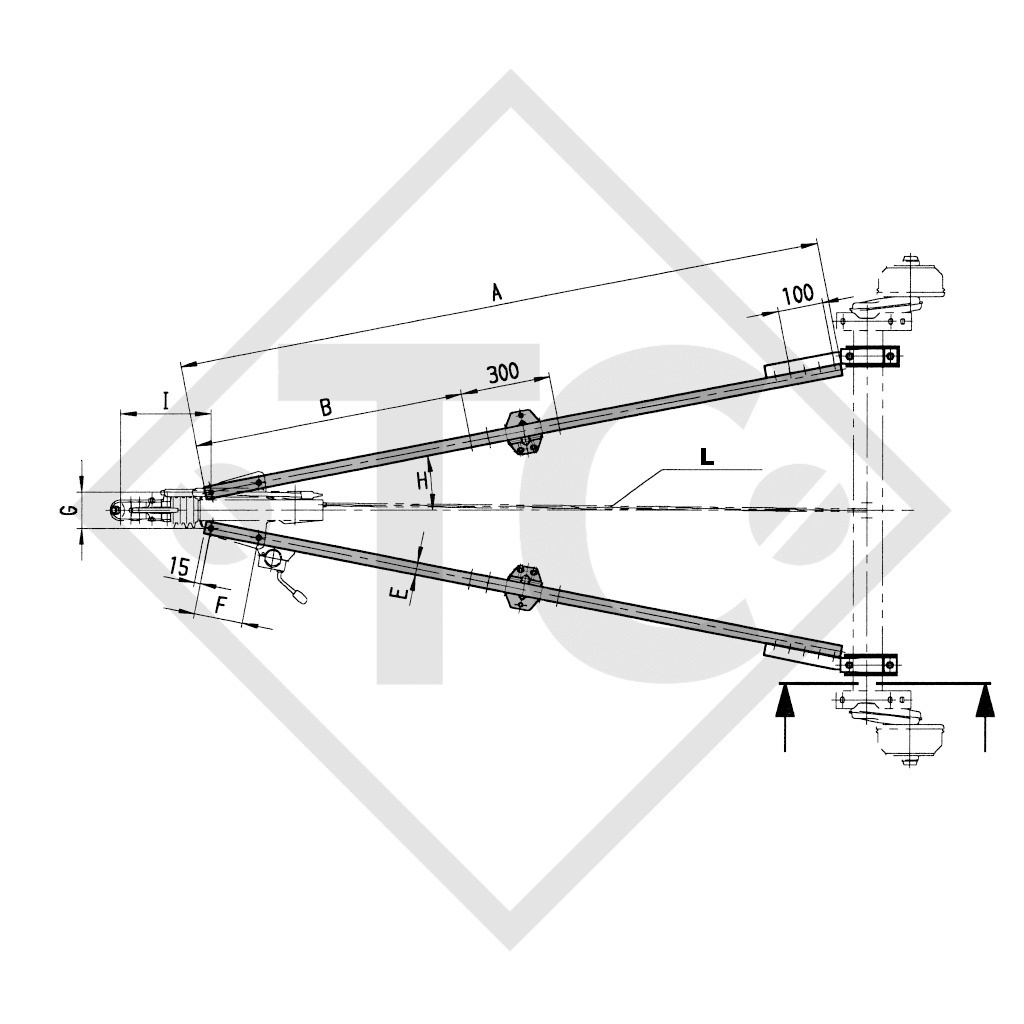

| Dimensions Length |
| A | 2300mm |
| B | 1100 to 1400mm |
| C | 80mm |
| D | 53mm |
| E | 50mm |
| F | 186mm |
| G | 135mm |
| Overrun device |
| H with top installation | 13° to 17° |
| H with bottom installation | 16° to 17° |
| I | 330mm |

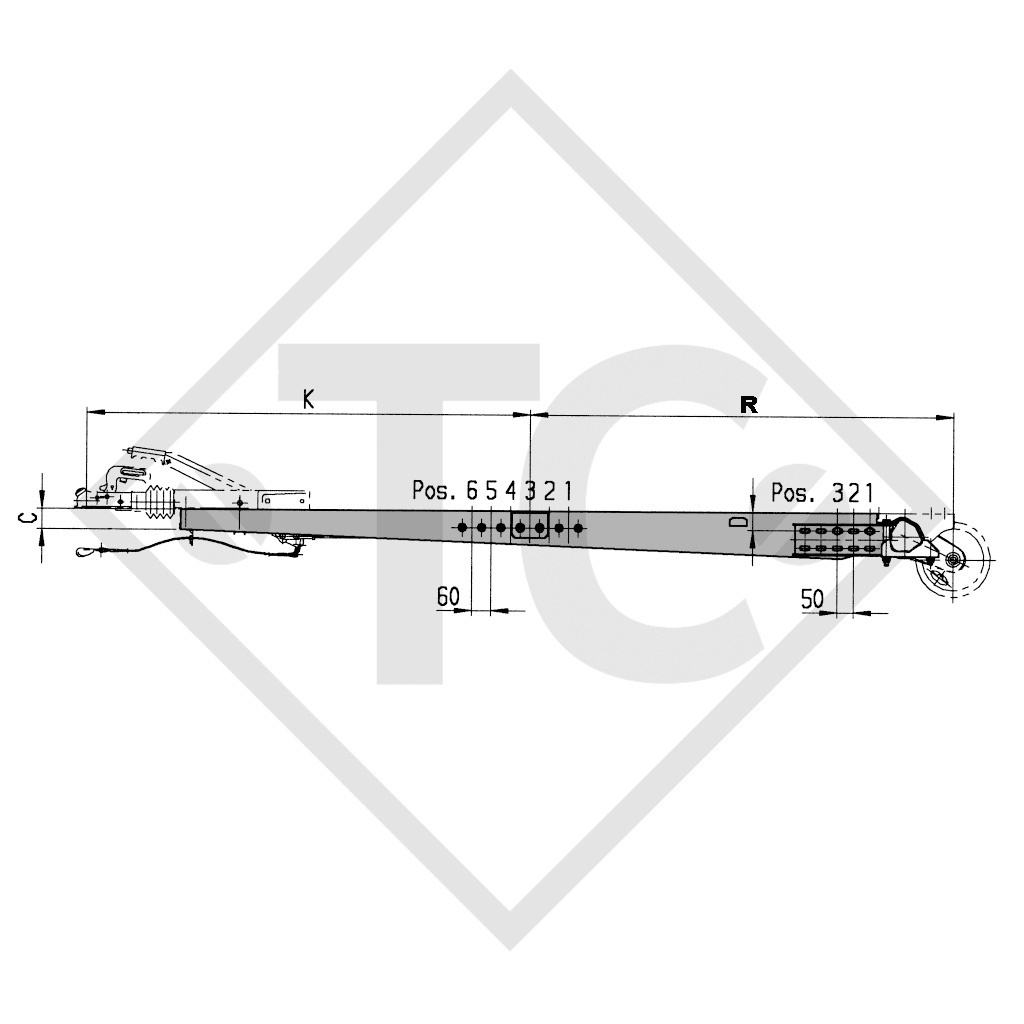

| K with |
H 14° 1385 to 1680mm |
| R (loaded) |
1125 - 1515mm |
| K max. permitted acc. to report | 1945mm |
| Matching overrun device top installation type | 2.8VB/1-C |

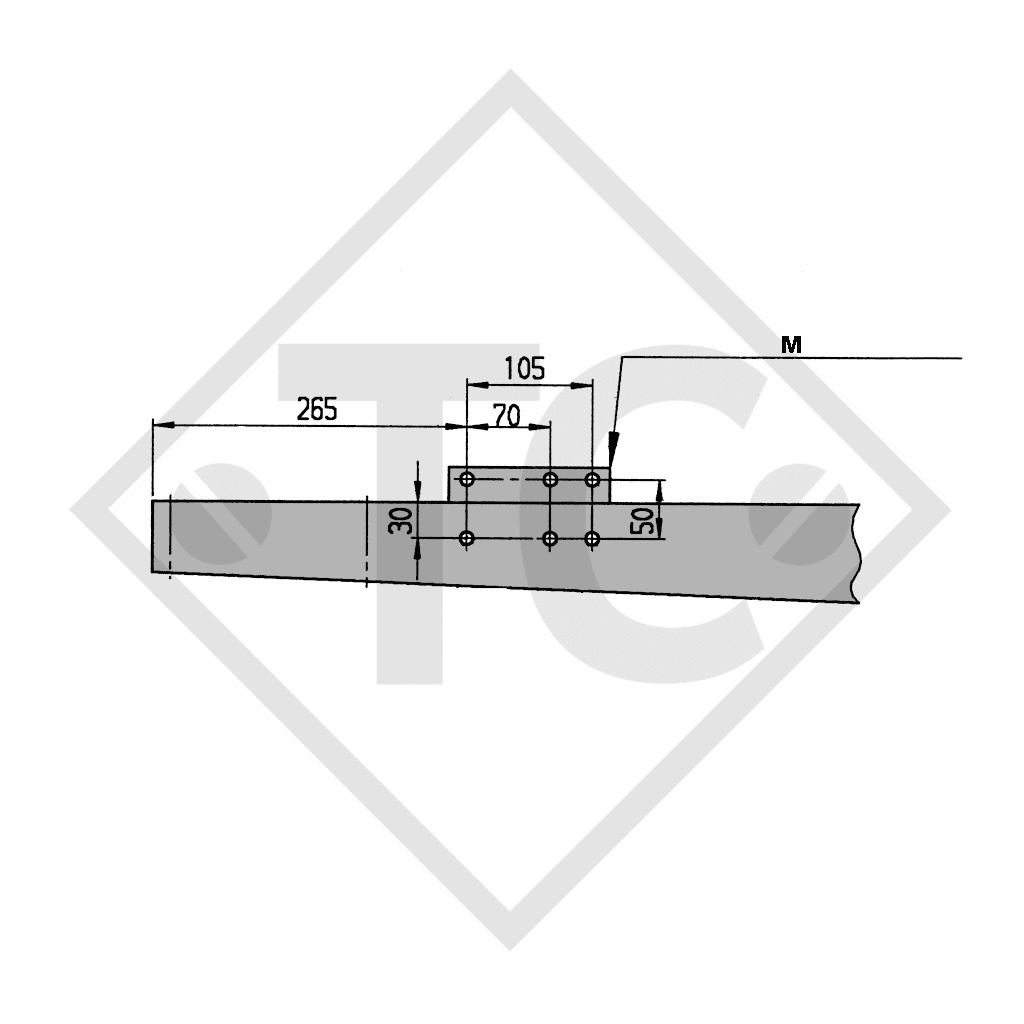

| M |
Plate for 251T and 351T |
TOWBAR CONNECTIONS
Calculation diagram and setting values
SURFACE TREATMENT
Hot-dip galvanised
SCOPE OF DELIVERY

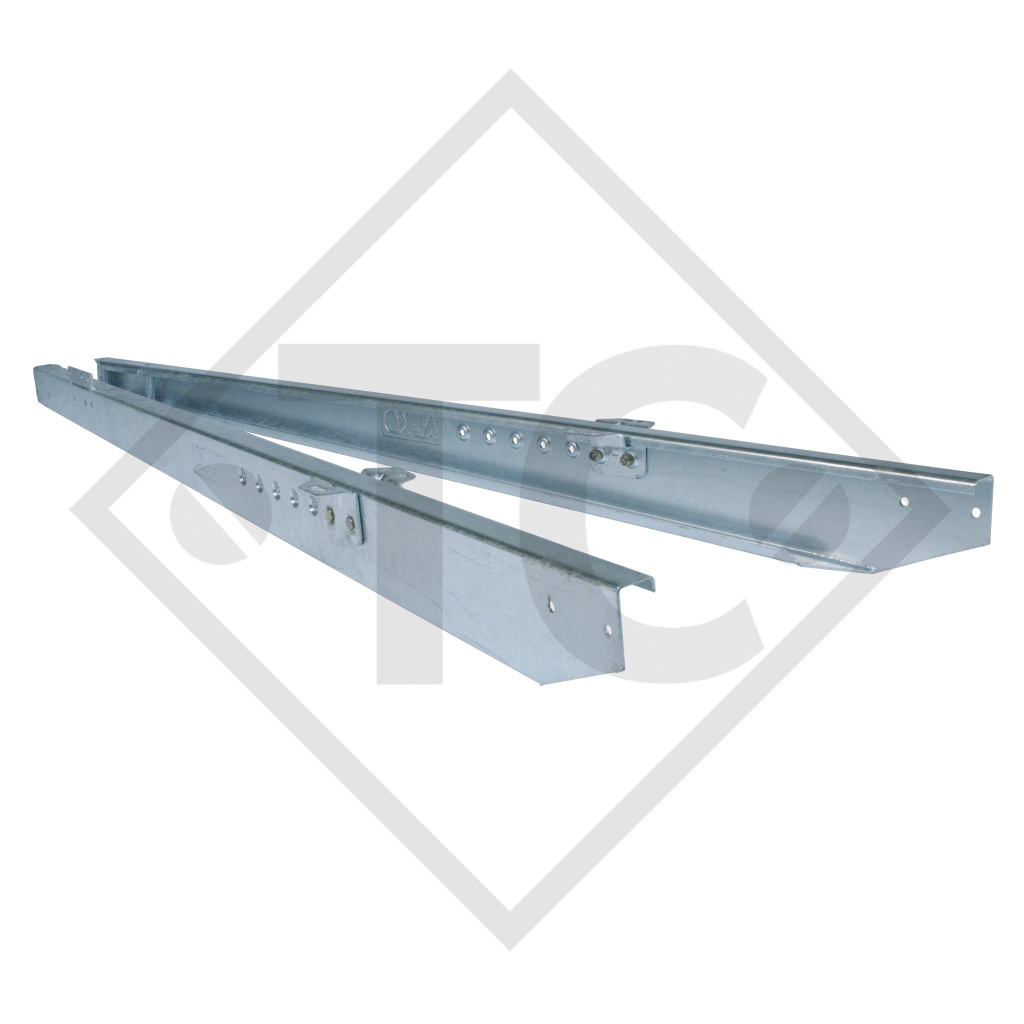

Towbar connection (pair) including:
Fixing bolts
Jockey wheel attachment
ACCESSORIES (please order separately)
Towbar connection (pair) with fixing bolts for attachment to the axle
Pull bar (L) with fixing bolts part no. 249368, M12 length 1950mm
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
