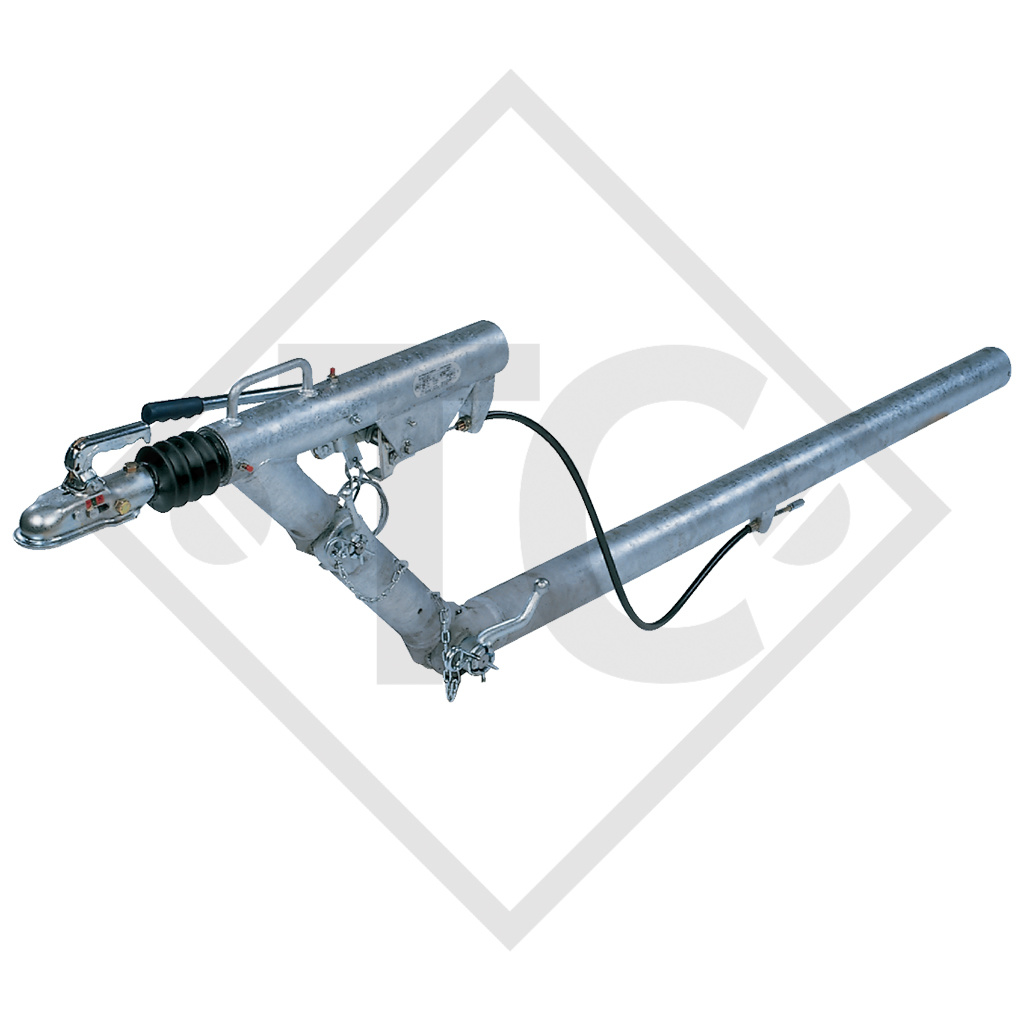

Home / Drawbar installation ZKV 13.1 B with overrun device AK 1308 height-adjustable, with drawbar section 650 to 1300kg, 47.24.471.086

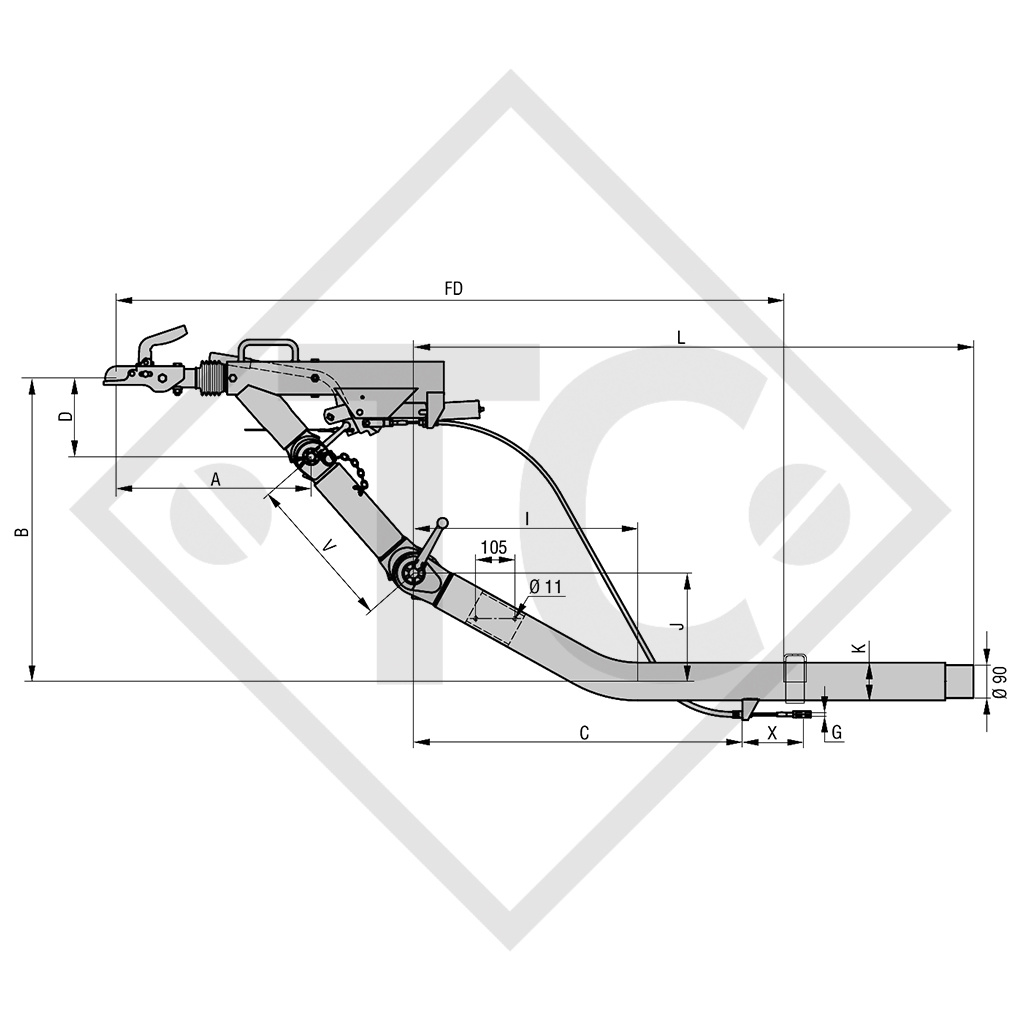

drawbar length L 1500mm, FD at max. 1300kg: 2223mm, drawbar section K round 88.9x8.8mm, spacer V 415mm, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7.
