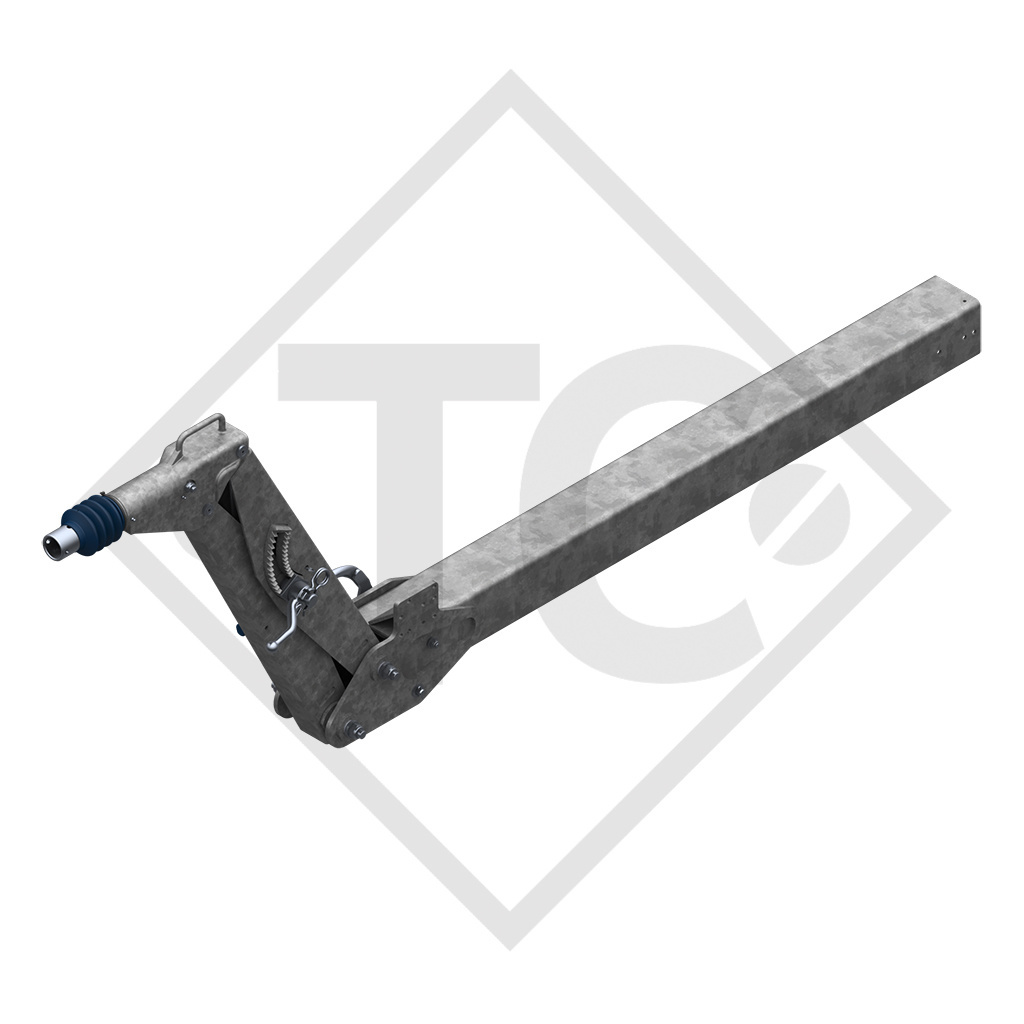

Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.041 Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.041 Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.041
Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.041
Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.041
Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.041

BPW Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.041

Home / Drawbar installation ZAV 3.5-1 with overrun device AE 3.5-1 A height-adjustable, with drawbar section 2500 to 3500kg, 47.51.470.041

drawbar length L 2500mm, measure B 0-767mm, FD at max. 3500kg: 3500mm, drawbar section K square 150mm, spacer V 875mm, perm. nose load 150kg, without hitch components, for wheel brake S 2005-7, S 2504-7 and S 3006-5. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 47.51.470.041
Part no. NEW 4014140

Gross vehicle weight rating
 2500-3500kg
Marketed under ZAV 3,5-1
Overrun hitch AE 3,5-1 A

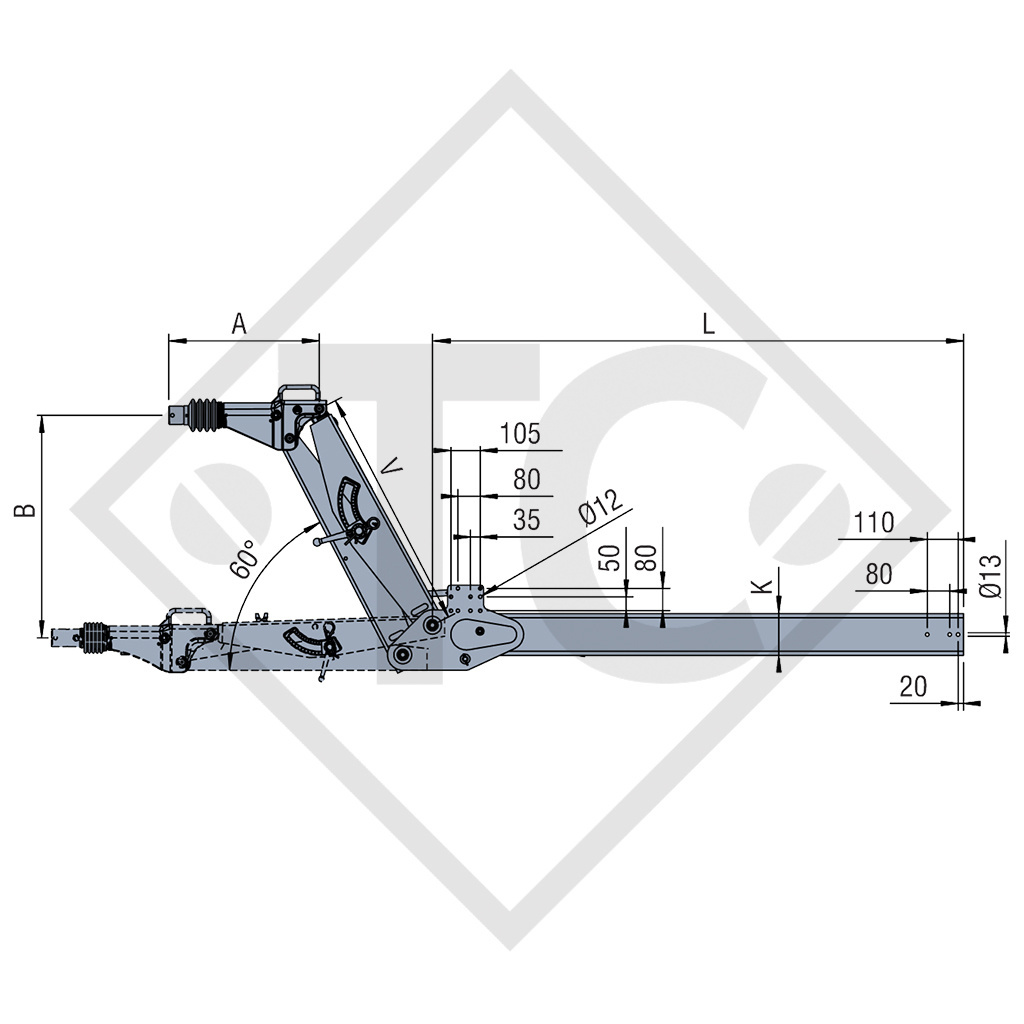

Dimension K
 square 150mm
Dimension A
 535mm
Dimension L
 2800mm
Dimension B
 0-767mm
Dimension V
 875mm
Permitted drawbar load 150kg
EC test symbol e1*0798*94/20



Original operating instructions
Replacement part identification number (ETI) OLD 47.36.47X.XXX
Replacement part identification number (ETI) NEW 827105, 827105-1 and 827105-2

DETAILS

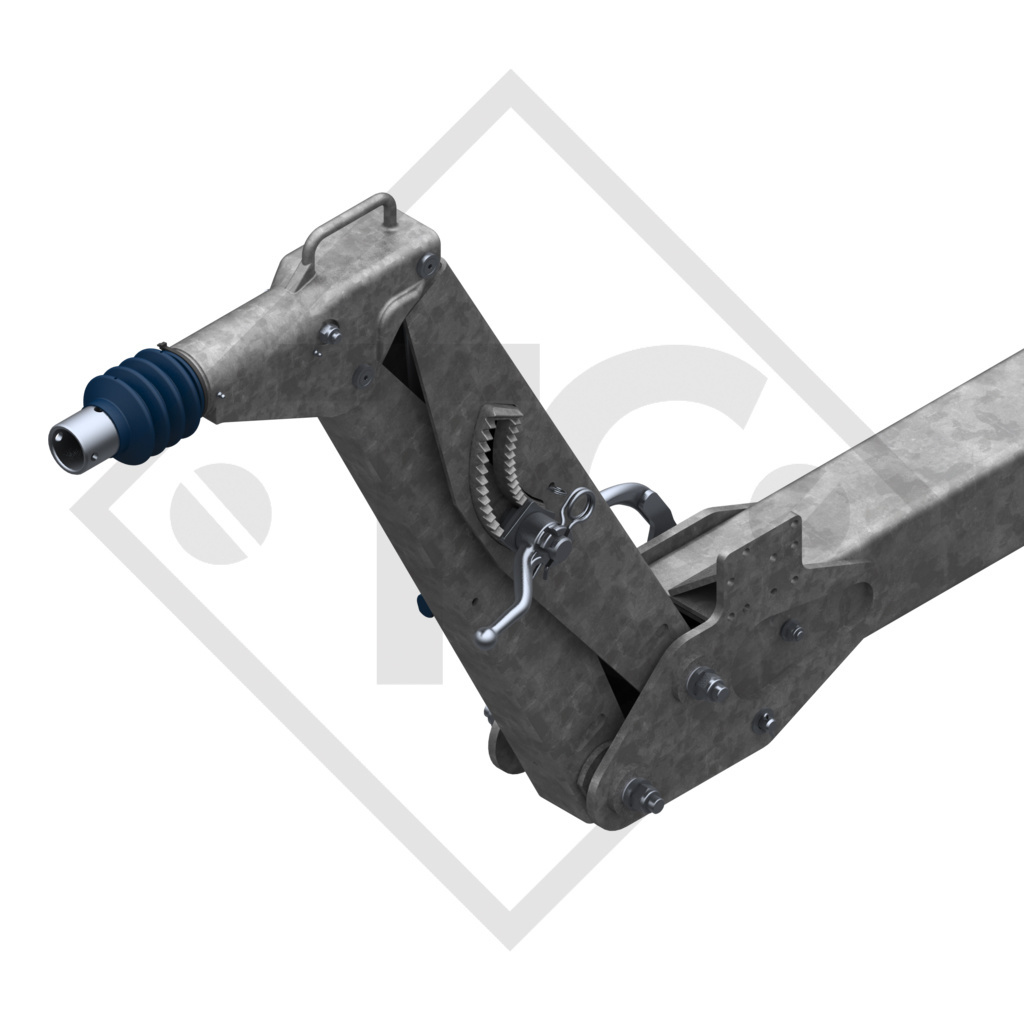

  • The towing attachment for the professionals: Features include a protected, intemal transmission device with a straightforward and fast height adjustment function up to 1,100 mm hitching height (even with the handbrake appliecl) and integrated jockey wheel holder, as well as the hot-dip galvanised surface. The whole unit is supplied ready-to-install - a product that satisfies all requirements.

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
