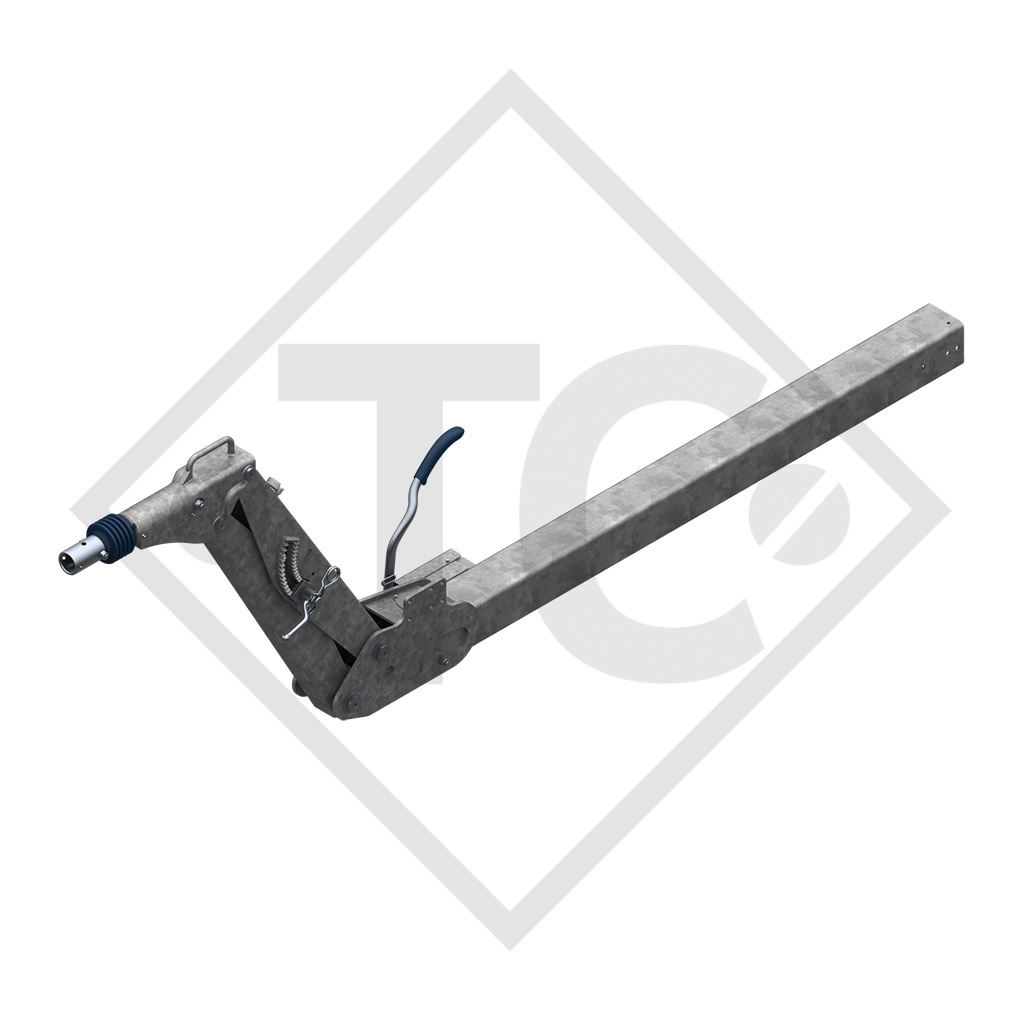

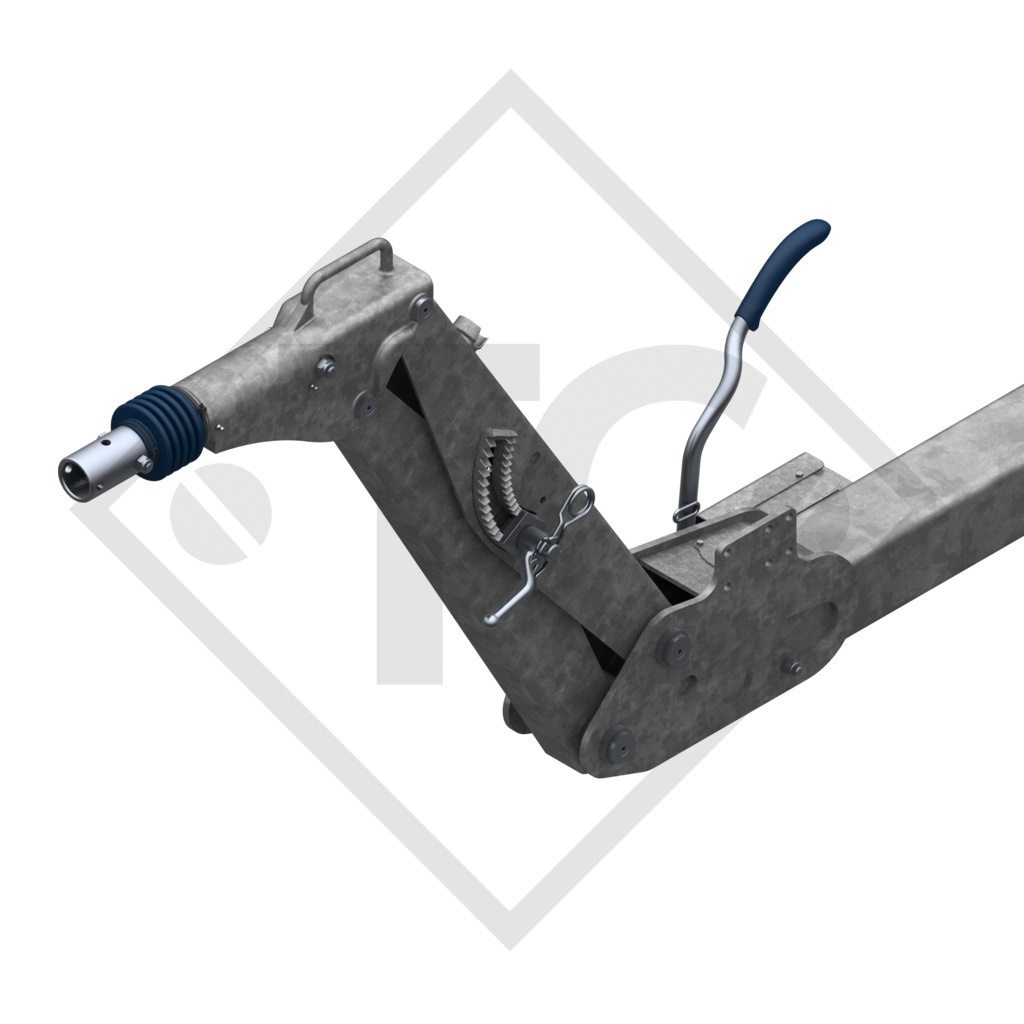

Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.112

drawbar length L 2800mm, measure B 0-693mm, FD at max. 2000kg: 3000mm, drawbar section K square 120mm, spacer V 800mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7, S 2005-7 and S 2504-7. Read more...

Wishlist: Add to comparison:

Price 2.200,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. OLD 47.36.470.112
Part no. NEW 4021597

Gross vehicle weight rating

1500-2000kg

Marketed under

ZAV 2,0-5

Overrun hitch

AE 2,7-1 C

Dimension K

square 120mm

Dimension A

535mm

Dimension L

2800mm

Dimension B

0-693mm

Dimension V

800mm

Permitted drawbar load

150kg

ECE test code

E1 55R-01 1284

Original operating instructions
Replacement part identification number (ETI) OLD 47.36.47X.XXX
Replacement part identification number (ETI) NEW 827106

DETAILS

The towing attachment for the professionals: Features include a protected, intemal transmission device with a straightforward and fast height adjustment function up to 1,100 mm hitching height (even with the handbrake appliecl) and integrated jockey wheel holder, as well as the hot-dip galvanised surface. The whole unit is supplied ready-to-install - a product that satisfies all requirements.

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

BPW Drawbar installation ZAV 2.0-5 with overrun device AE 2.7-1 C height-adjustable, with drawbar section 1500 to 2000kg, 47.36.470.112

Product description
