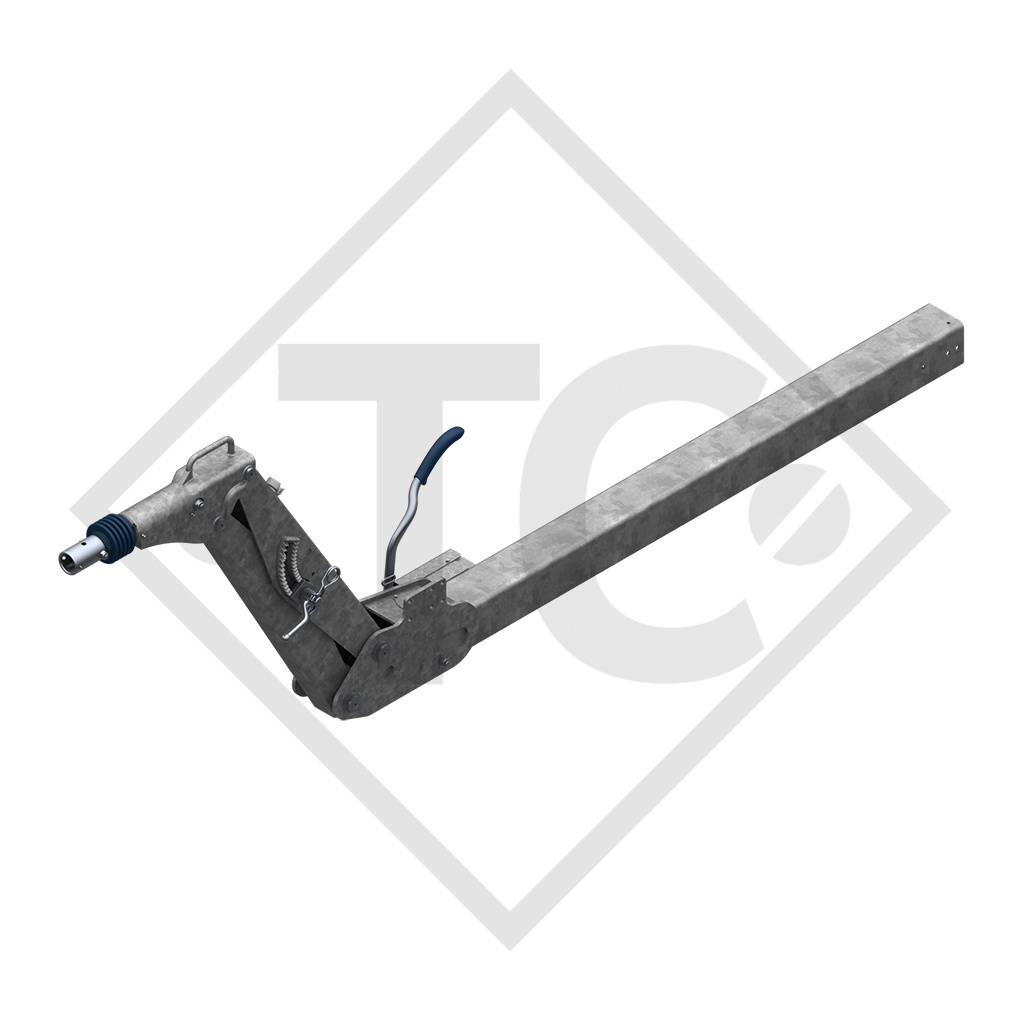

Home / Drawbar installation ZAV 1.6-5 with overrun device AE 2.7-1 D height-adjustable, with drawbar section 1200 to 1600kg, 47.29.470.061
drawbar length L 2800mm, measure B 0-520mm, FD at max. 1600kg: 3000mm, drawbar section K square 120mm, spacer V 600mm, perm. nose load 150kg, without hitch components, for wheel brake S 1704-7 and S 2005-7. Read more...
Part no. OLD 47.29.470.061
Part no. NEW 4021595
Gross vehicle weight rating |
1200-1600kg |
Marketed under | ZAV 1,6-5 |
Overrun hitch | AE 2,7-1 D |

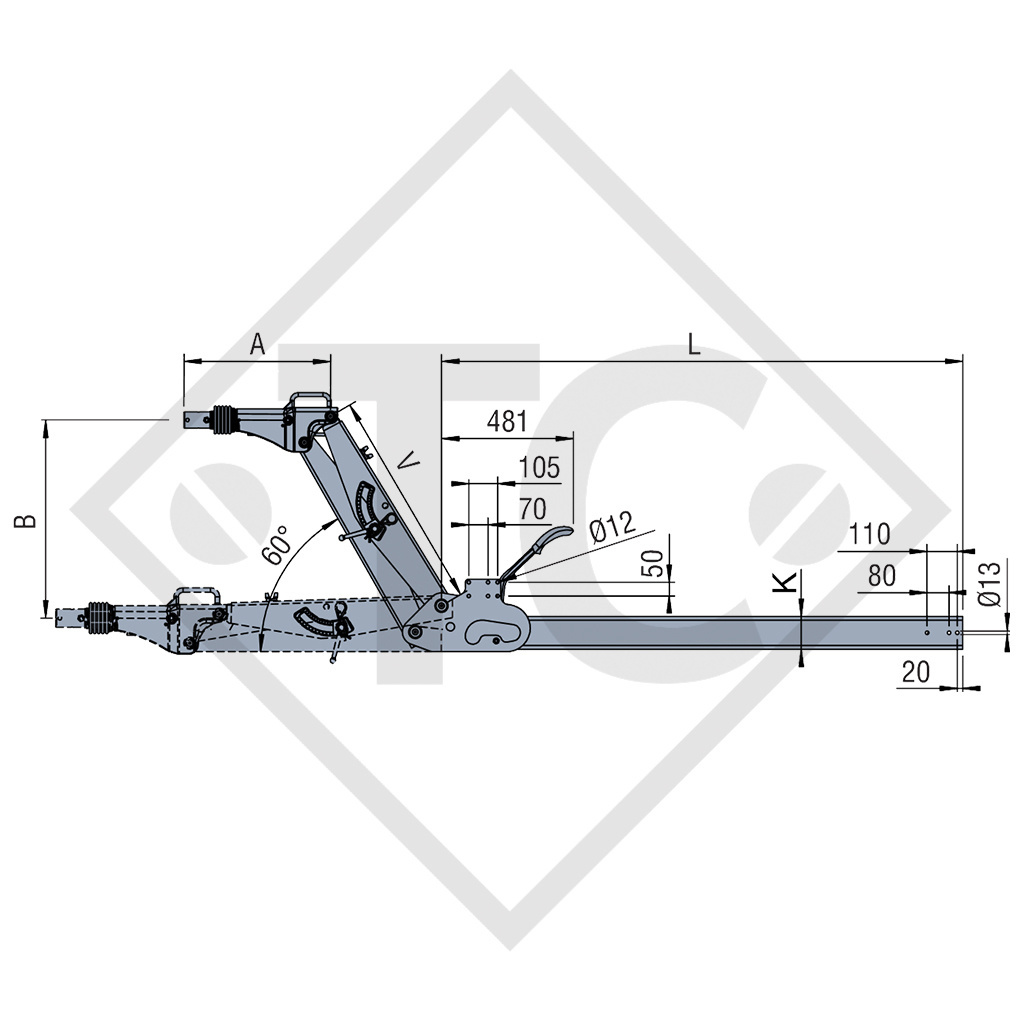

Dimension K |
square 120mm |
Dimension A |
535mm |
Dimension L |
2800mm |
Dimension B |
0-520mm |
Dimension V |
600mm |
Permitted drawbar load | 150kg |
ECE test code | E1 55R-01 1284 |
Original operating instructions
Replacement part identification number (ETI) OLD 47.29.47X.XXX
Replacement part identification number (ETI) NEW 827106
DETAILS
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
