Home / Drawbar installation ZAAR 3.0-1 with overrun device ZAAQ3.0 / ZDG10-3 drawbar section straight 1800 to 2800kg, 48.46.181.005

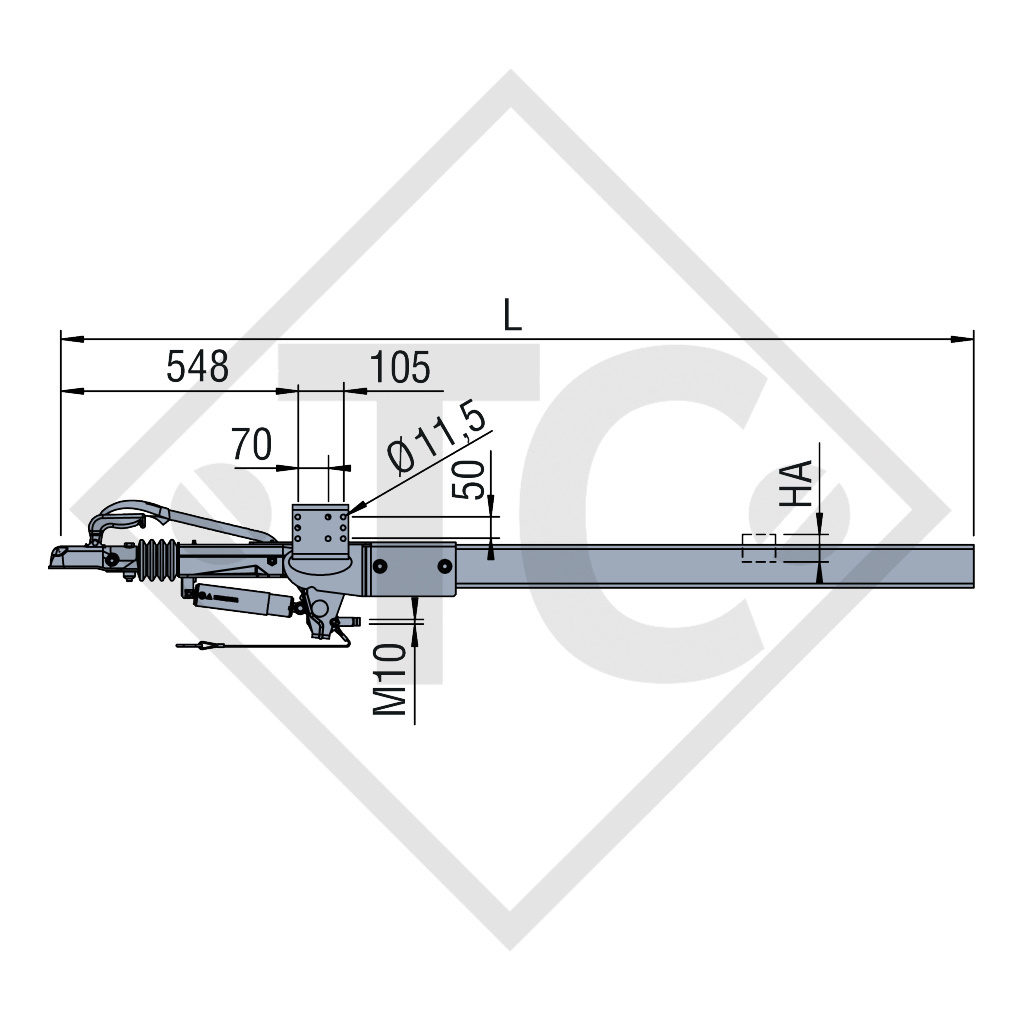

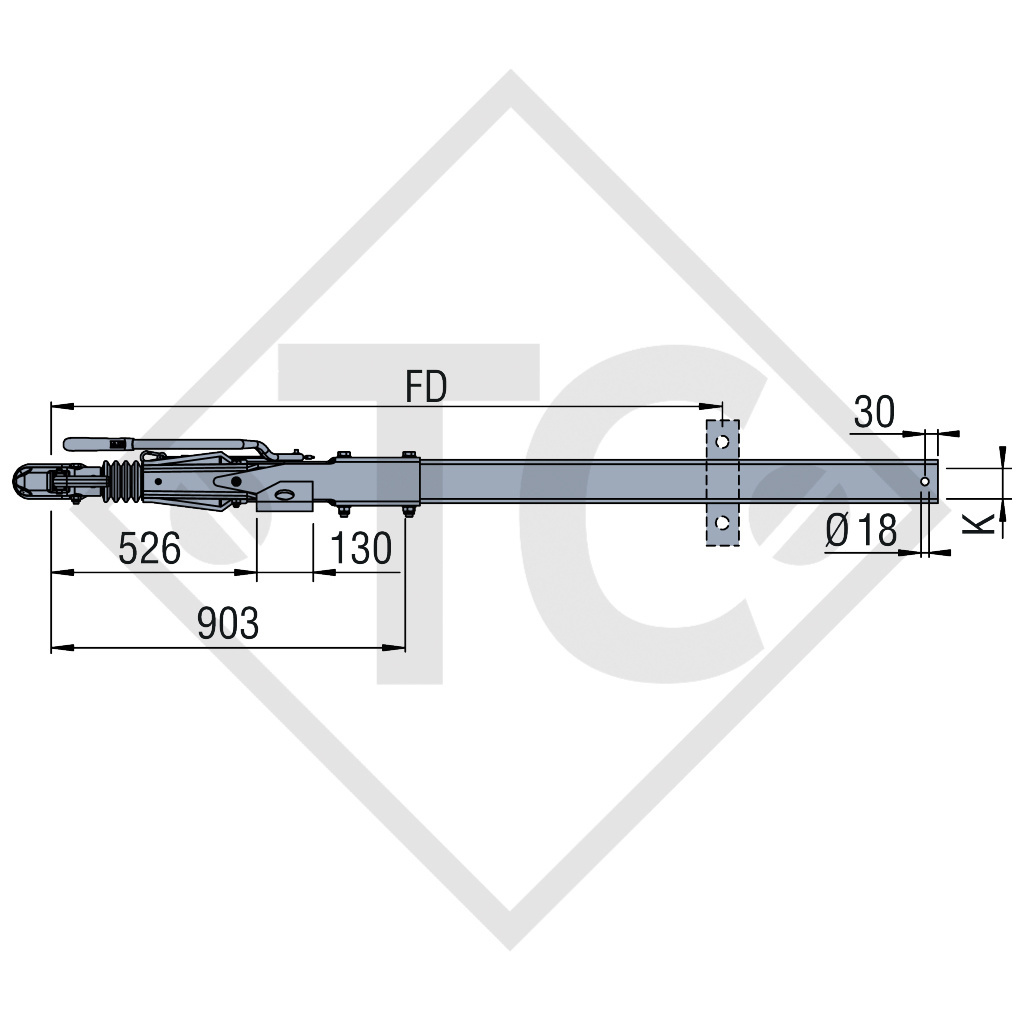

drawbar length L 3500mm, FD at max. 2800kg: 1780mm, drawbar section K square 100x6.3mm, measure HA 65mm, thread G M10, perm. nose load 100kg, with coupling head EM 300 R-B-K1212, for wheel brake S 2005-7, S 2504-7 and S 3006-7. Read more...
| Permitted gross weight (kg) | 1800-2800 |
| Sales designation |
ZAAR 3.0‑1 |
| Type | ZAAQ3,0 / ZDG10‑3 |
| Order No. | 4014439 |
| Reference No. | 48.46.181.005 |
| Dimension K |
sq. 100x6.3mm |
| Dimension HA |
65mm |
| Dimension L |
3500mm |
| Perm. nose load (kg) | 100 |
| Combined wheel brakes (RASK) | S2005-7, S2504-7 and S3006-7 |
| Replacement part identification number (ETI) NEW | 827009 |
DETAILS
The square profile offers high stability and ensures a secure connection in every application.
The hot-dip galvanised surface provides permanent corrosion protection.
