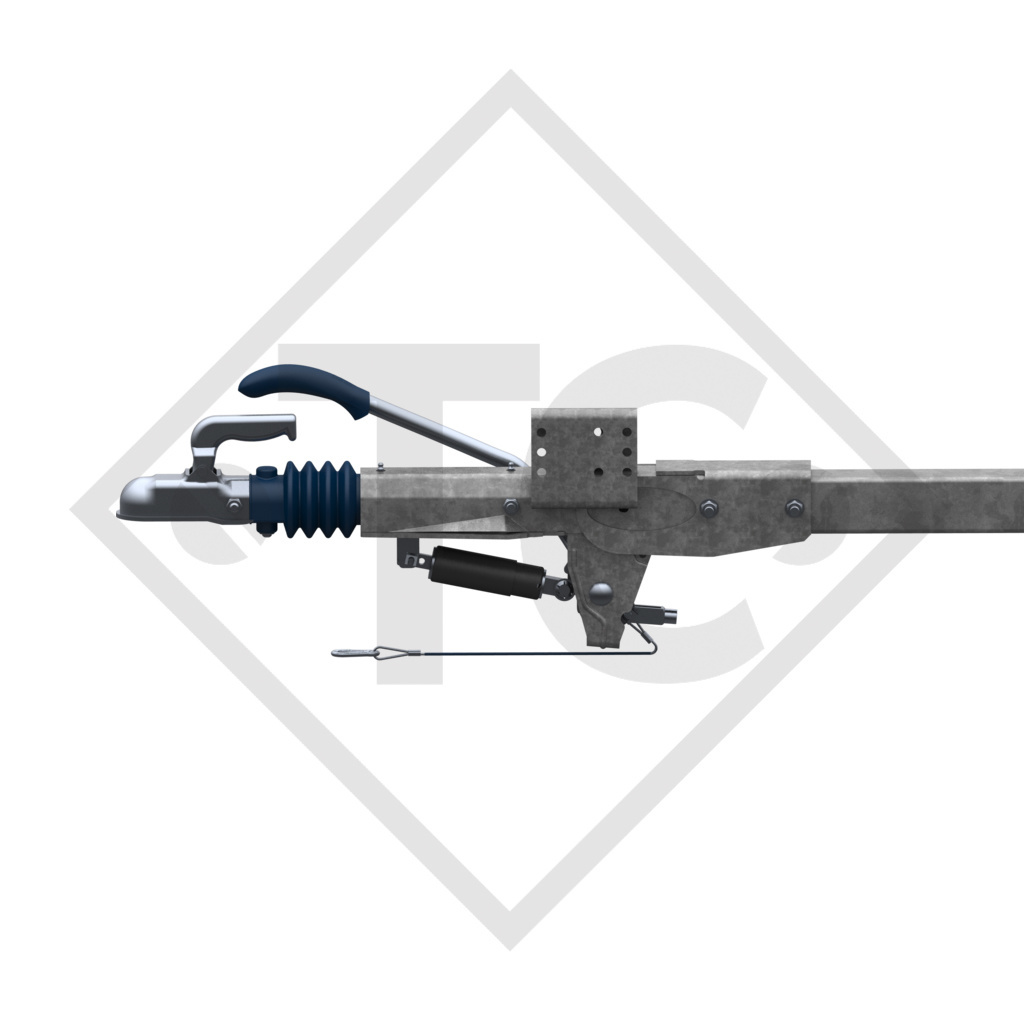

Home / Drawbar installation ZAAR 2.0-1 with overrun device ZAAQ2.0 / ZDG8-3 drawbar section straight 1250 to 2000kg, 48.36.181.075

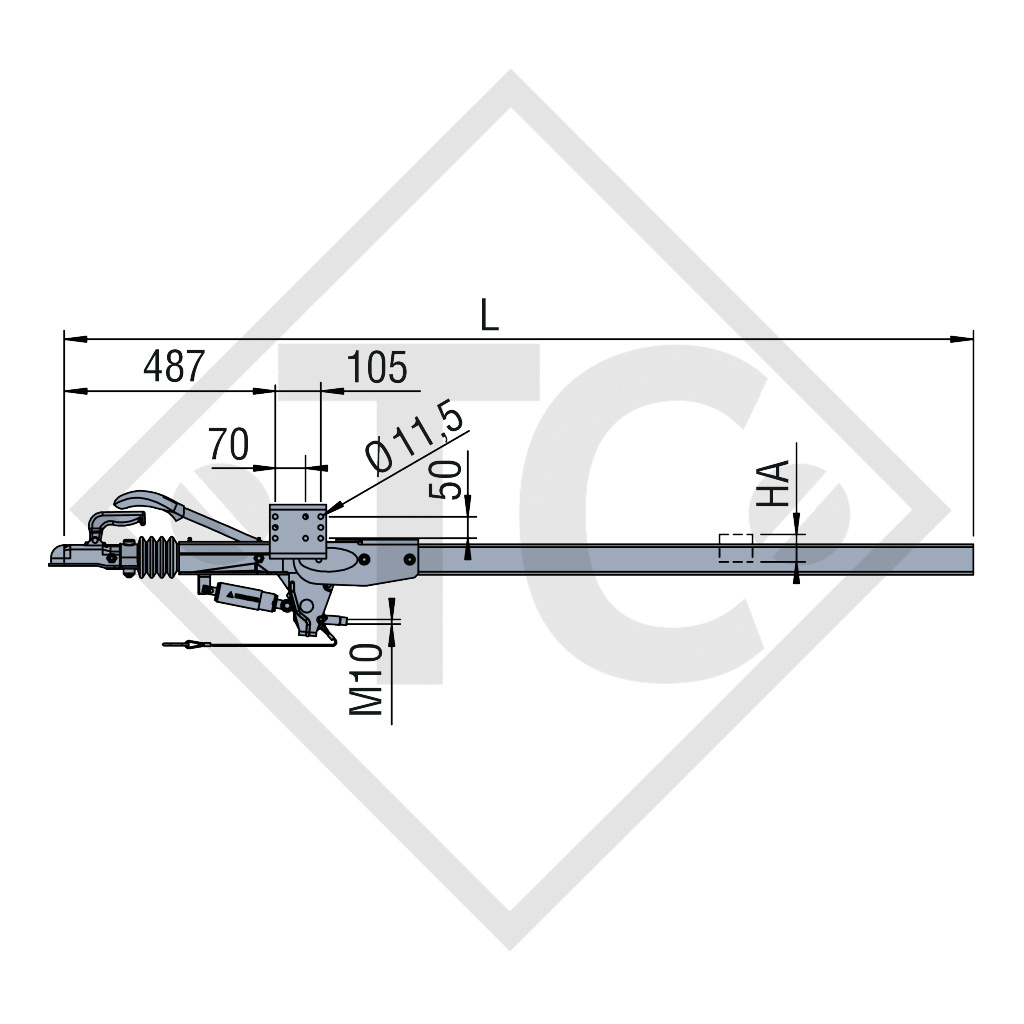

drawbar length L 2500mm, FD at max. 2000kg: 1360mm, drawbar section K square 80x5.0mm, measure HA 55mm, thread G M10, perm. nose load 100kg, with coupling head EM 220 R-B, for wheel brake S 1704-7, S 2005-7 and S 2504-7. Read more...
| Permitted gross weight (kg) | 1250-2000 |
| Sales designation |
ZAAR 2.0‑1 |
| Type | ZAAQ2,0 / ZDG8‑3 |
| Order No. | 4014329 |
| Reference No. | 48.36.181.075 |
| Dimension K |
sq. 80x5.0mm |
| Dimension HA |
55mm |
| Dimension L |
2500mm |
| Perm. nose load (kg) | 100 |
| Combined wheel brakes (RASK) | S1704-7, S2005-7 and S2504-7 |
| Replacement part identification number (ETI) NEW | 827006 |
DETAILS
The square profile offers high stability and ensures a secure connection in every application.
The hot-dip galvanised surface provides permanent corrosion protection.
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
