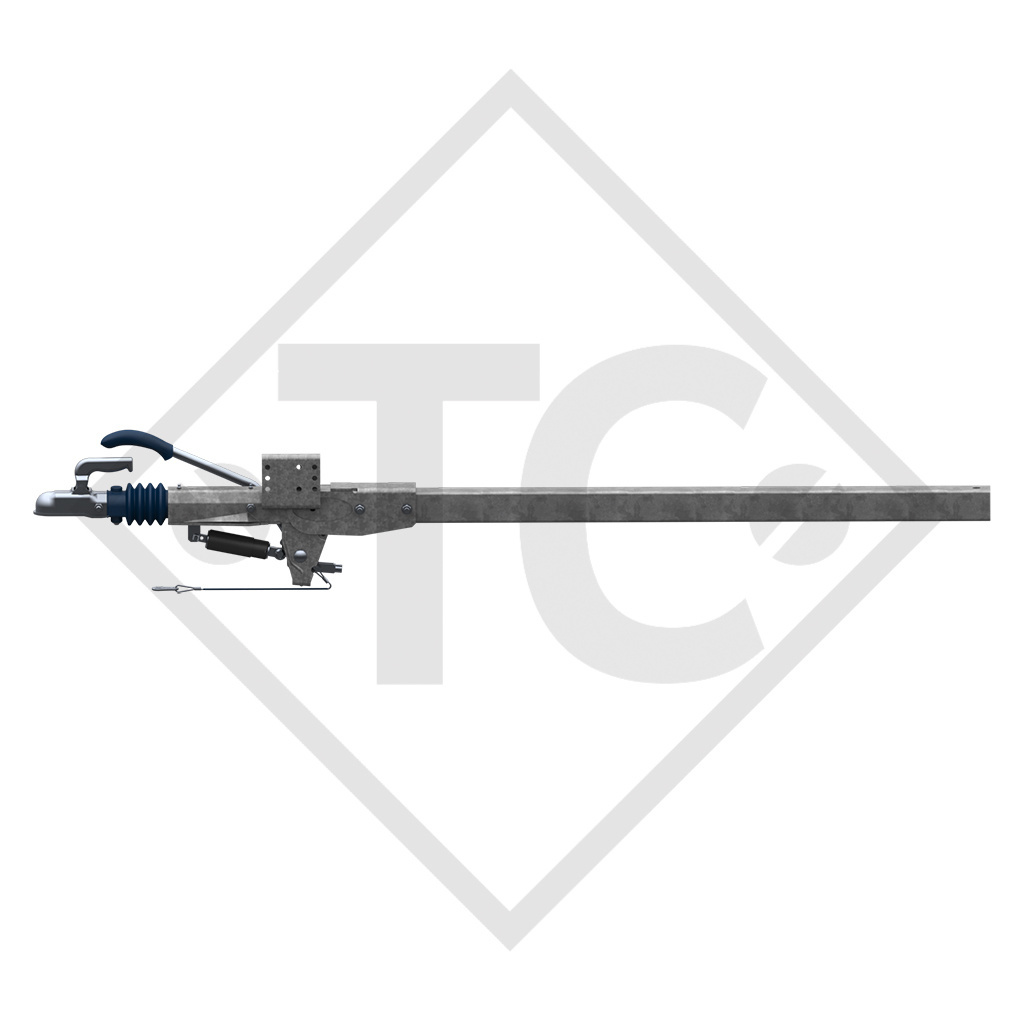

Home / Drawbar installation ZAAR 1.35-1 with overrun device ZAAQ1.35-3 / ZDG7-3 drawbar section straight 750 to 1350kg, 48.25.181.109
drawbar length L 3000mm, FD at max. 1350kg: 1210mm, drawbar section K square 70x4.0mm, measure HA 50mm, thread G M10, perm. nose load 100kg, with coupling head EM 150 R-B, for wheel brake S 1704-7 and S 2005-7. Read more...
| Permitted gross weight (kg) | 750-1350 |
| Sales designation |
ZAAR 1.35‑1 |
| Type | ZAAQ1,35‑3 / ZDG7‑3 |
| Order No. | 4014232 |
| Reference No. | 48.25.181.109 |
| Dimension K |
sq. 70x4.0mm |
| Dimension HA |
50mm |
| Dimension L |
3000mm |
| Perm. nose load (kg) | 100 |
| Combined wheel brakes (RASK) | S1704-7 and S2005-7 |
| Replacement part identification number (ETI) NEW | 827102 |
| Replacement part identification number (ETI) OLD | 48.25.181.xxx and 48.29.181.xxx |
DETAILS
The square profile offers high stability and ensures a secure connection in every application.
The hot-dip galvanised surface provides permanent corrosion protection.
