IMPORTANT INFORMATION: The manufacturer Winterhoff has been sold. WILL NO LONGER BE AVAILABLE FOR DELIVERY in the future. Item 1225712 will be automatically supplied as an alternative. This item exhibits identical characteristics. It is merely produced by a different manufacturer.

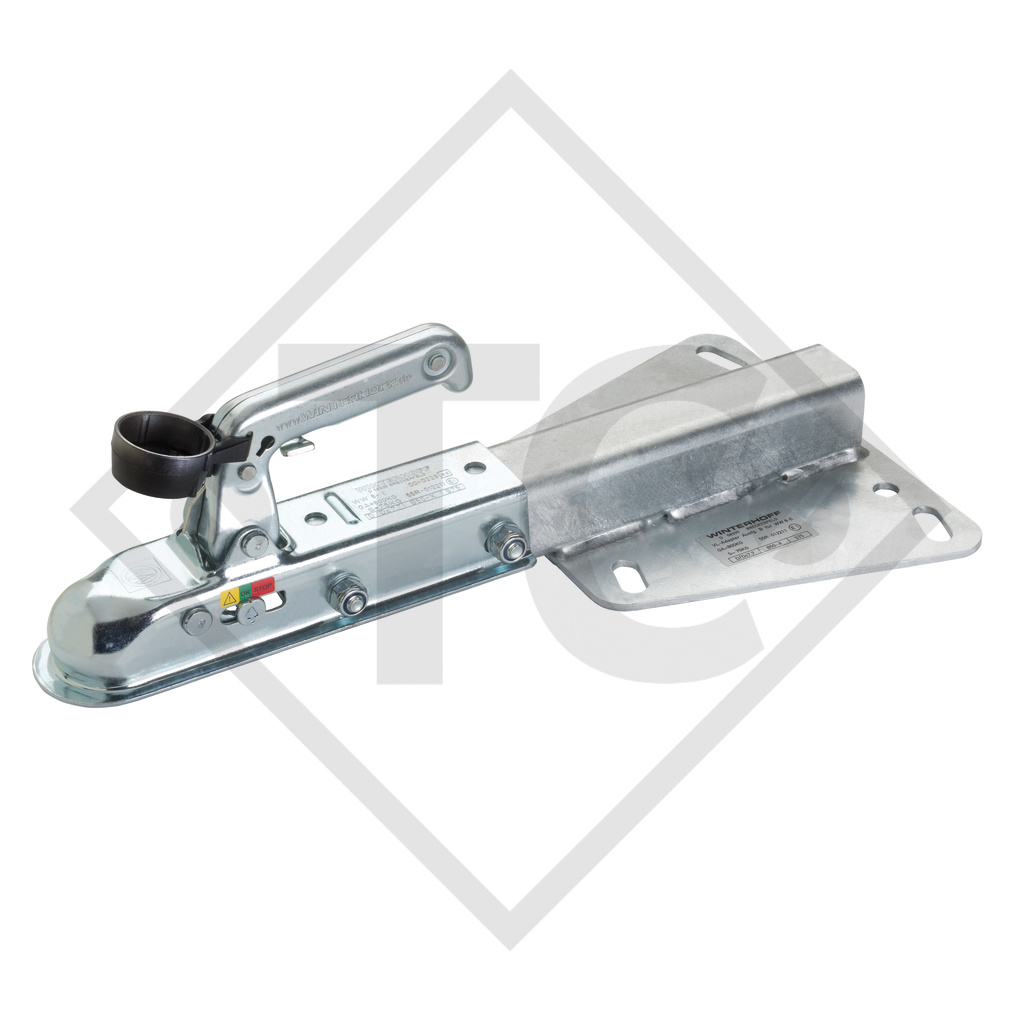

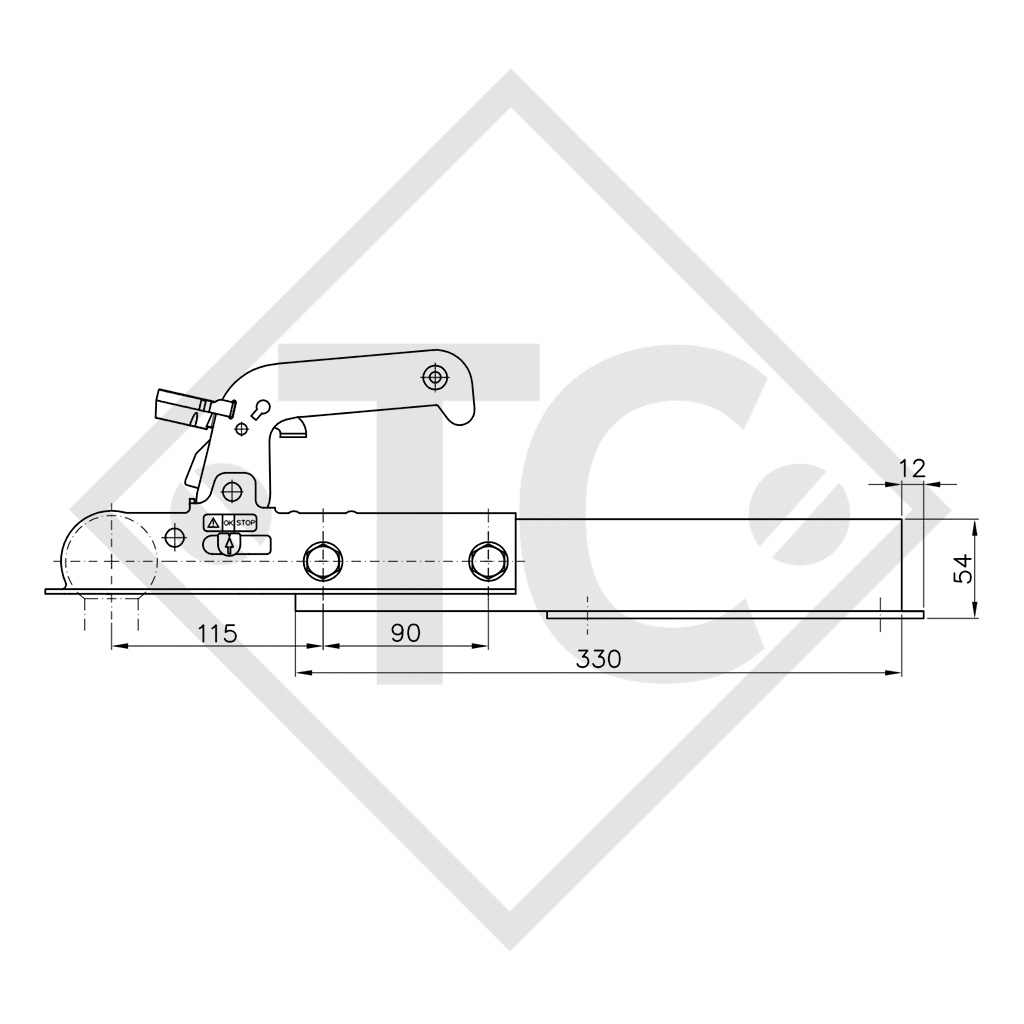

Drawbar
|

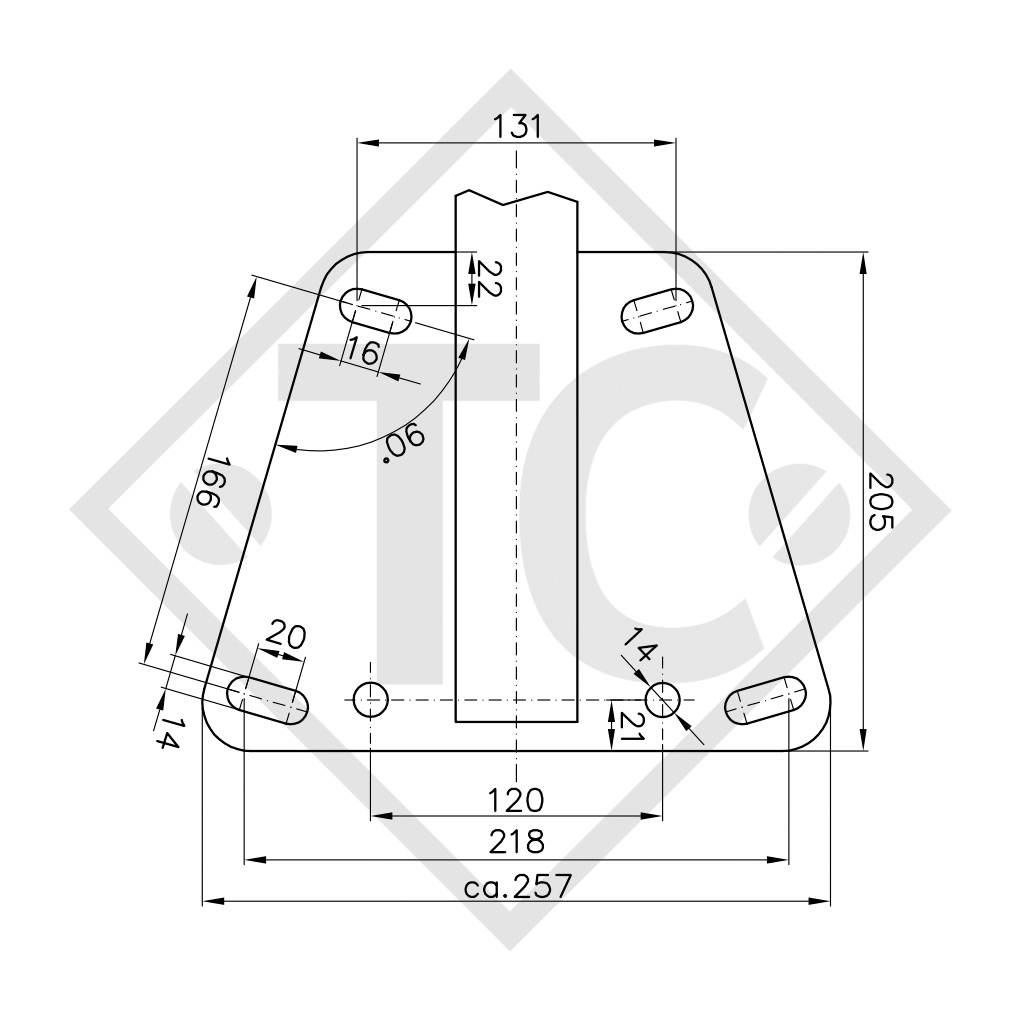

□ 54mm + mounting plate V |
| Holes (screw connection) |
14mm |
| Hole distance |
131/166/120/218mm |
| Perm. gross weight |
800 kg |
| ECE type approval no. |
E1 55R-01 2211 |
- Galvanised
Standard corrosion protection
- Wear indicator
Wear indicator for the coupling head
- Lock option (not included in scope of delivery)
Anti-theft device to prevent rapid access
BASIC PRODUCT LINE
The BASIC products are entirely solid and robust.
They are characterised by very good processing properties for the respective area of application and are essential in day-to-day trailer use, as they fulfil the basic needs of the trailer users.
We ensure that these Basic variants also meet our high quality standards and exceed the legal minimum requirements.
Here, you can find the catalogue page as a convenient PDF download, page 31.
You can also enter the part no. from the catalogue as a search term in our online store.
