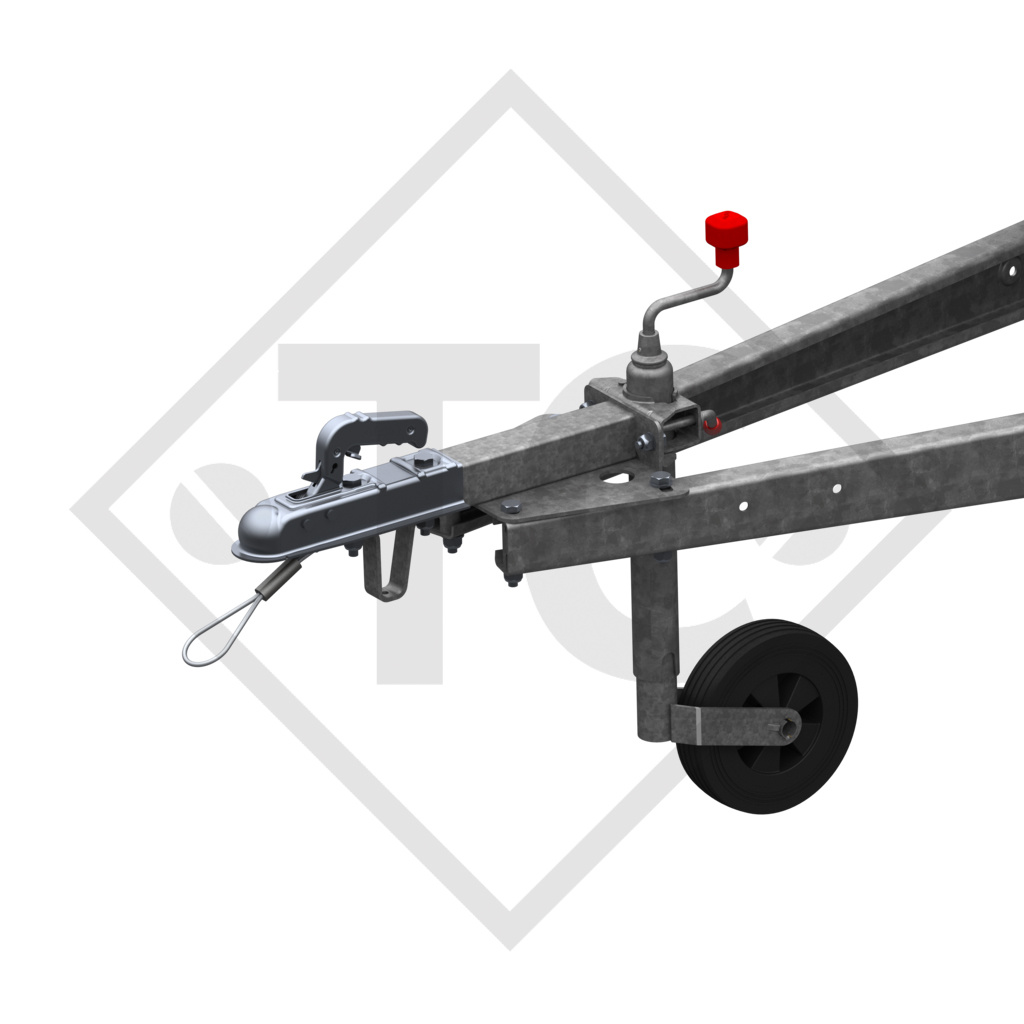

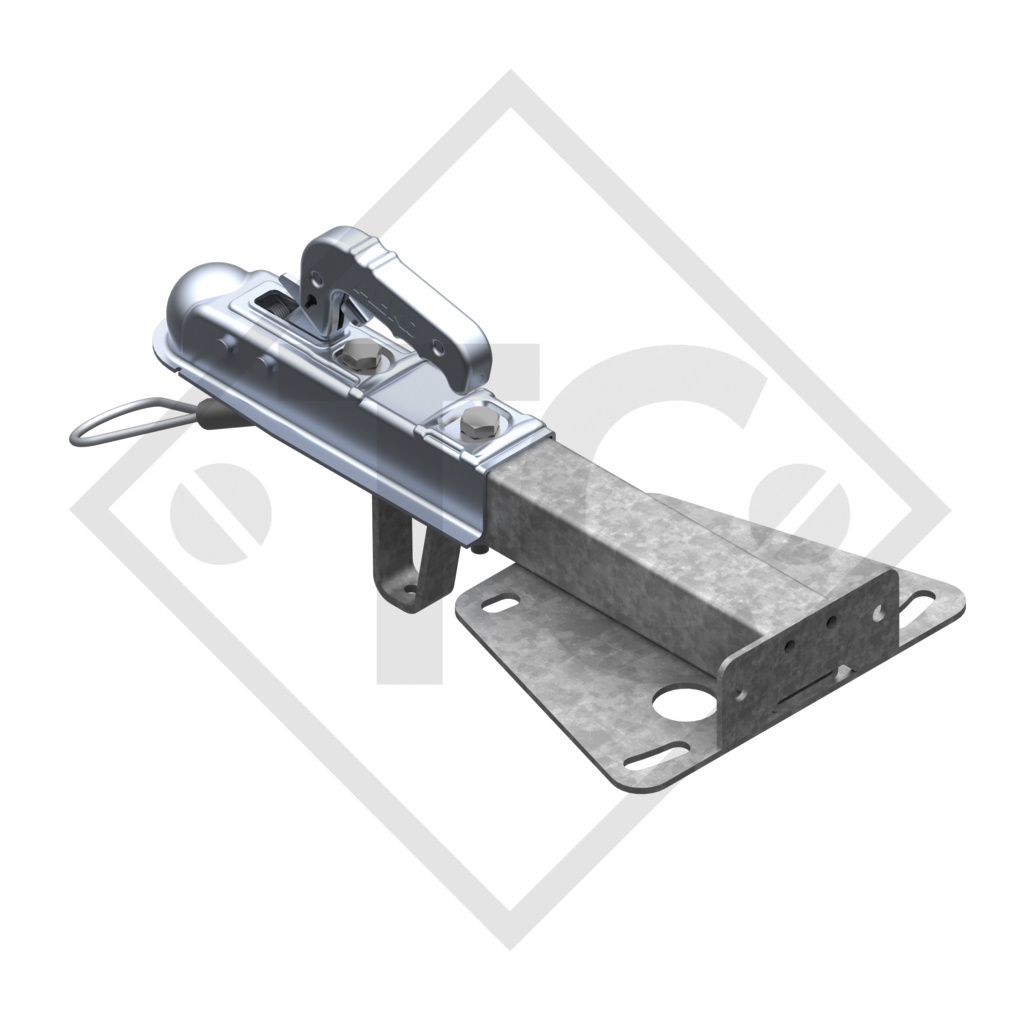

Home / Drawbar installation 75 VR with coupling head AK 7 PLUS 50 - top installation with safety wire for unbraked trailers

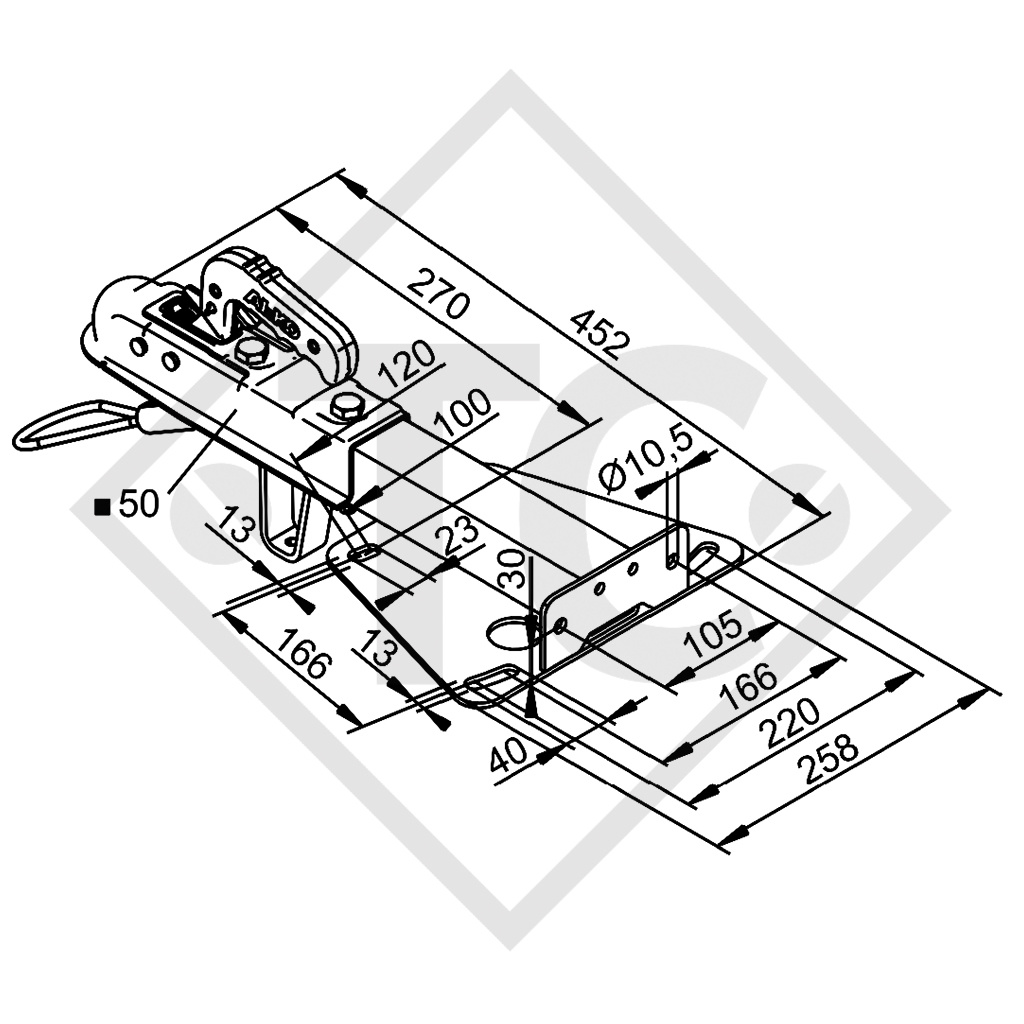

drawbar ⌀50mm square with mounting plate V, holes (screw connection) vertical 13mm, hole distance 166mm, perm. gross weight 750kg, nose load 75kg, material: steel. Read more...
| Perm. gross weight | 750 kg |
| Nose load |
75 kg |
| D / Dc value |
7,19 kN |
| Material | steel |
| Tightening torque |
M10: 46 Nm; M12: 75 Nm |
| ECE type approval no. | Drawbar installation: E155R-012358 Coupling head: E1 55R-01 0232 |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
