single axle 850-10, B 850 and B 1000, axle profile 80mm, drawbar tube square 70x110mm, 70x140mm and 80x140mm. Read more...
Part no. 249116
| for Compact, Plus hexagonal rubber suspension axle (from year of manufacture 1999) |
| Single axle | type 850-10, B 850 and B 1000 |
| Tandem | 1600kg |
| Axle profile | 80mm |
| drawbar tube round Ø |
- - - |
| Square | 70x110mm, 70x140mm and 80x140mm |

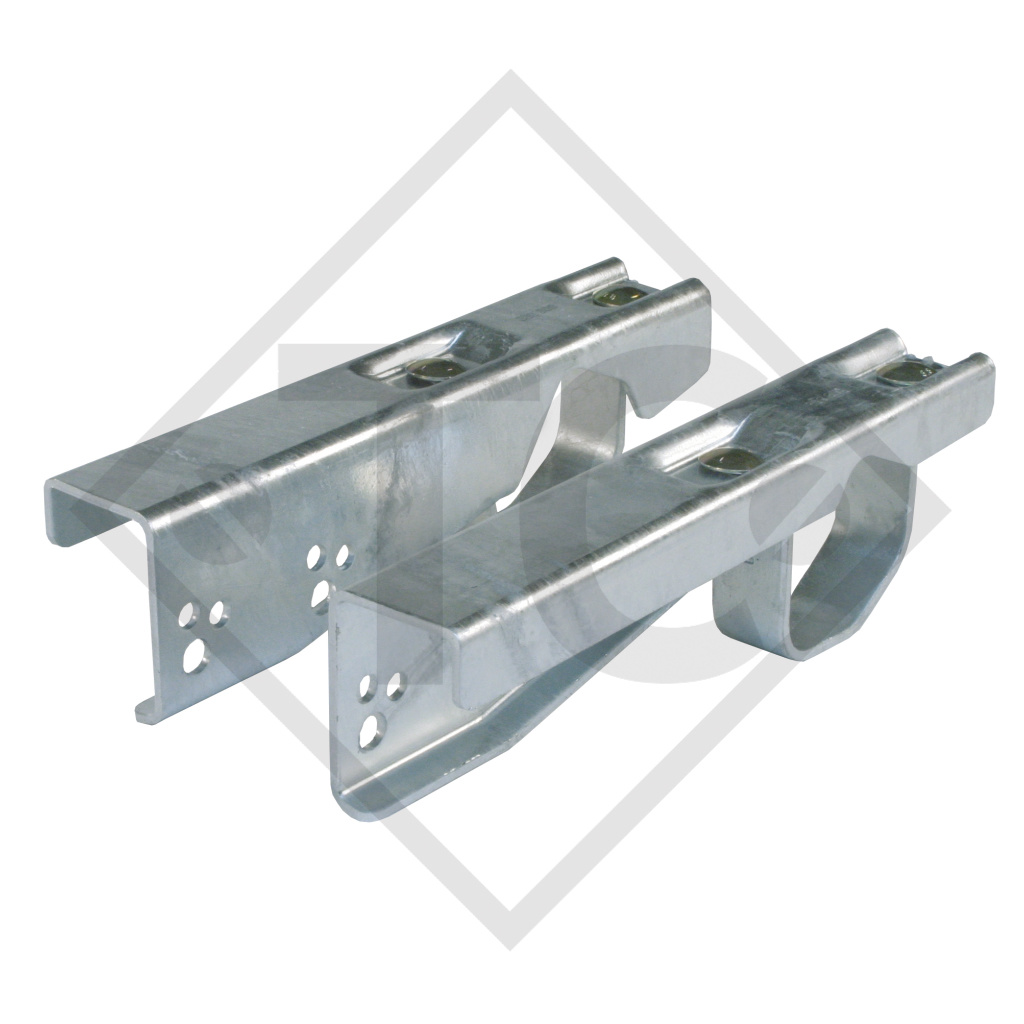

BOLT-ON DRAWBAR CONNECTION PROFILES
for COMPACT and PLUS axles
YOUR ADVANTAGE
Combine your special chassis from stocked parts.
Time-consuming welding on a top hat profile is no longer necessary.
SURFACE TREATMENT
Hot-dip galvanised

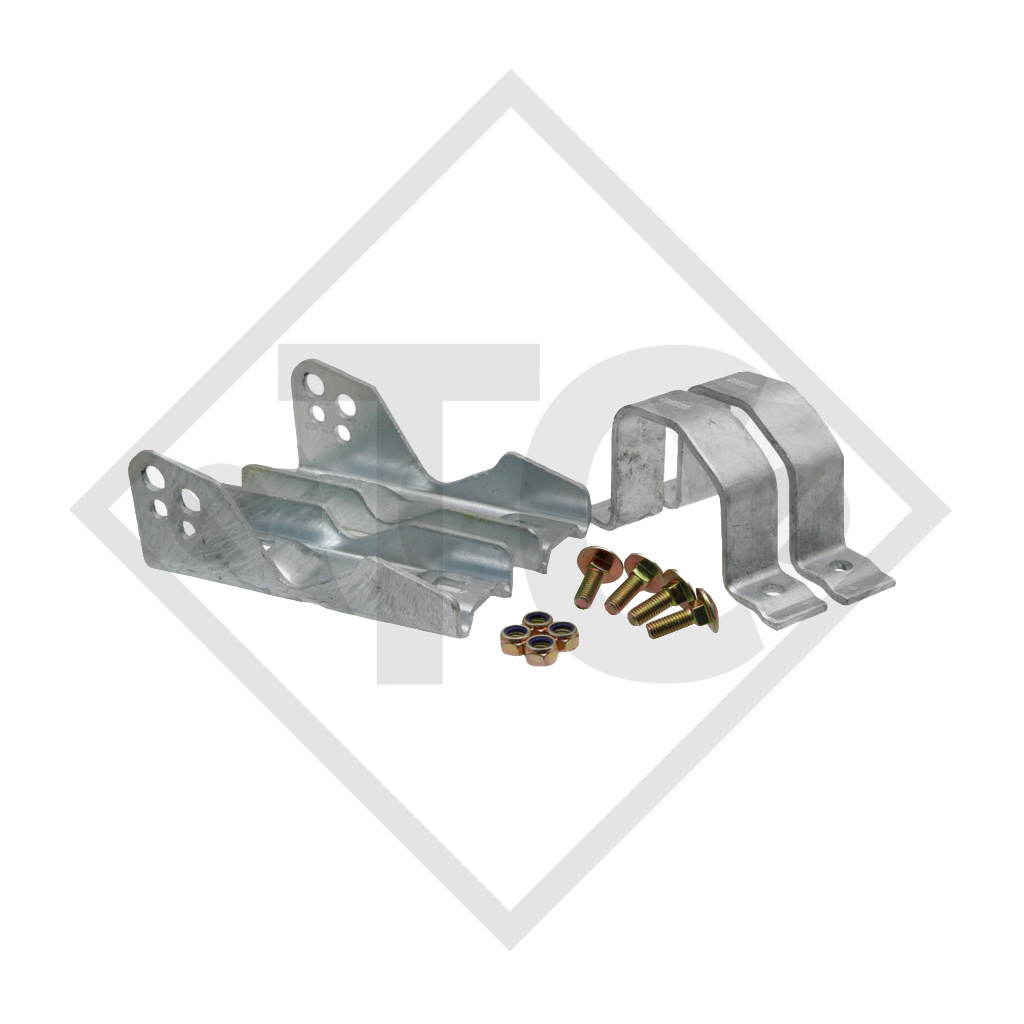

SCOPE OF DELIVERY
(See technical drawing) incl.
Mounting instructions, packed in cardboard box,
without fixing bolts for connection to the axle.
MOUNTING

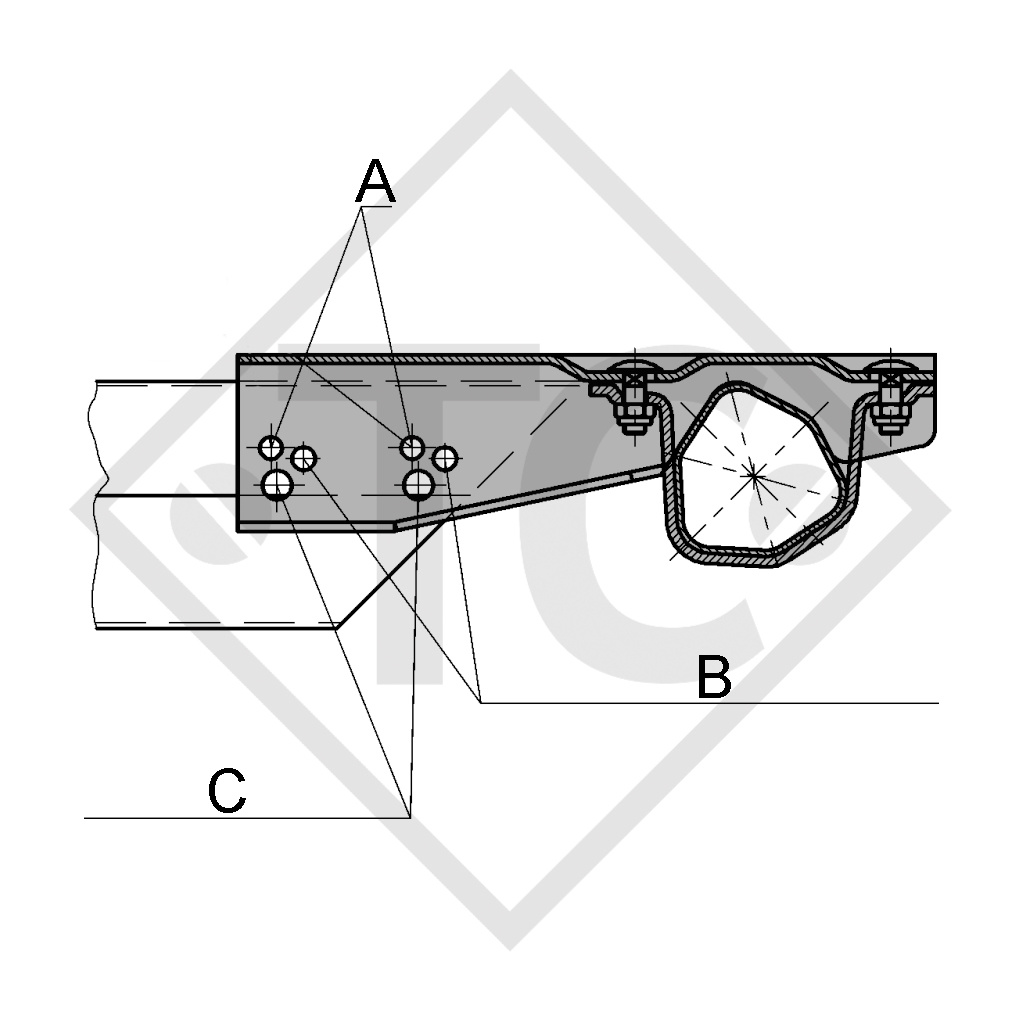

1. Drawbar bolted to drawbar connection profiles
Select a correct connection hole for the existing drawbar diameter on profiles.
Position drawbar connection profiles at the side of the drawbar and secure with hexagon bolt (M12/M16).
Important: The spacer tube must be pressed or placed into the drawbar.

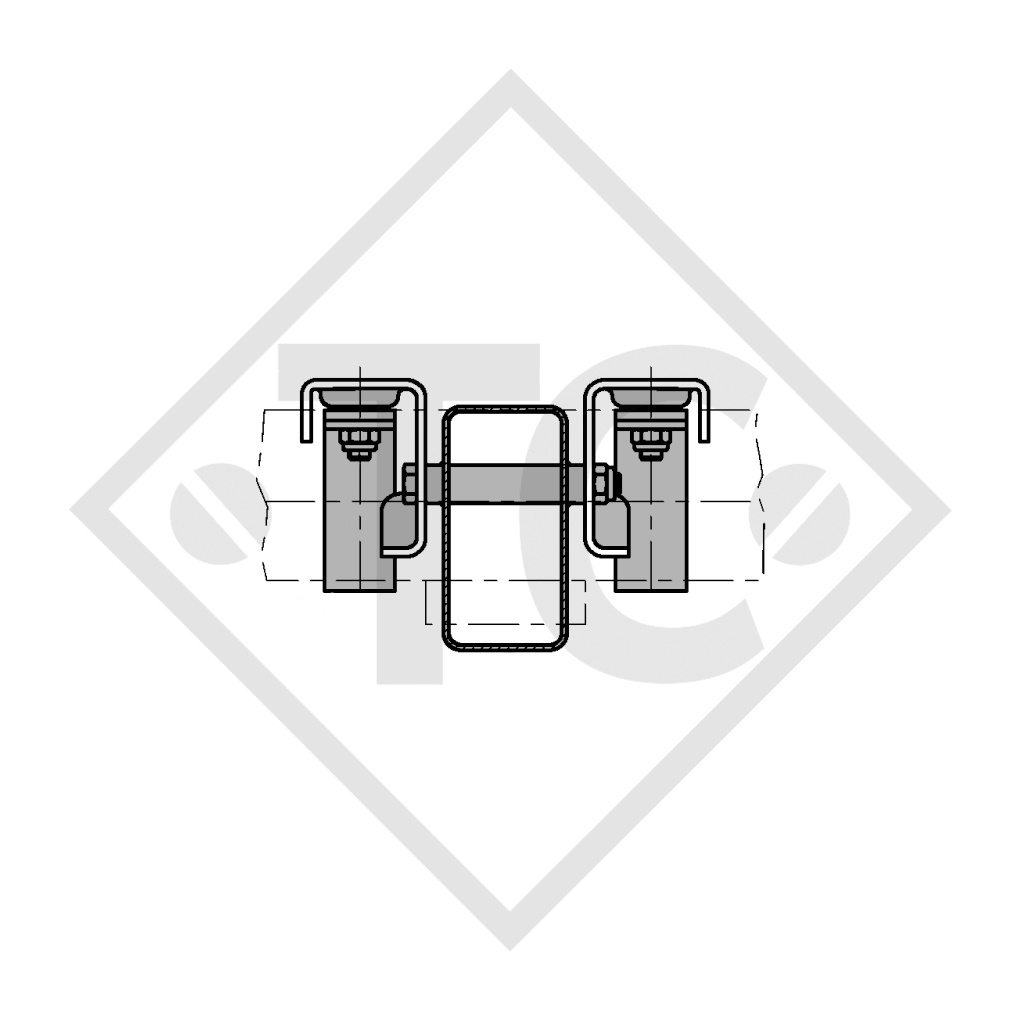

2. Fasten drawbar connection profiles to axle
Place drawbar connection profiles on axle, bolt on with clamping bracket and supplied round-head screws (M12x35) as well as nuts.
Align drawbar with axle and bolt on firmly.
