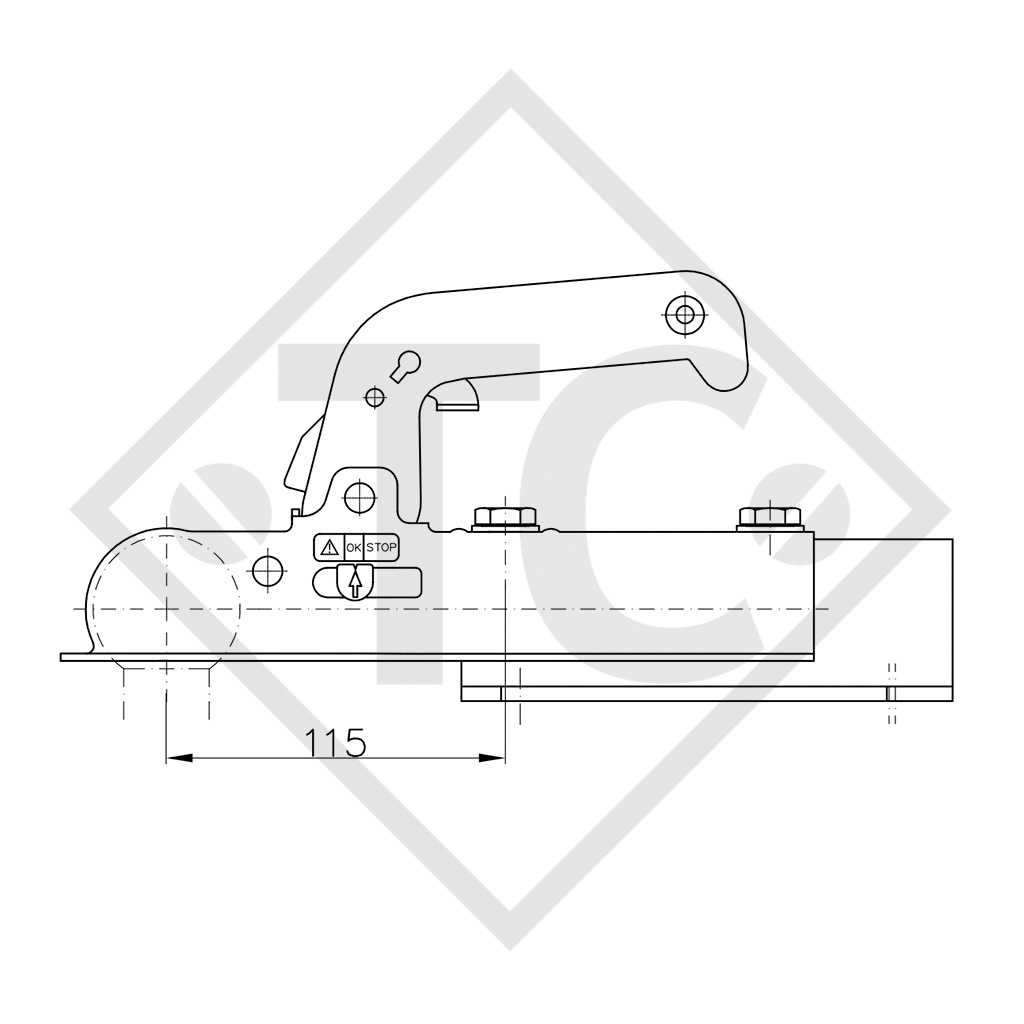

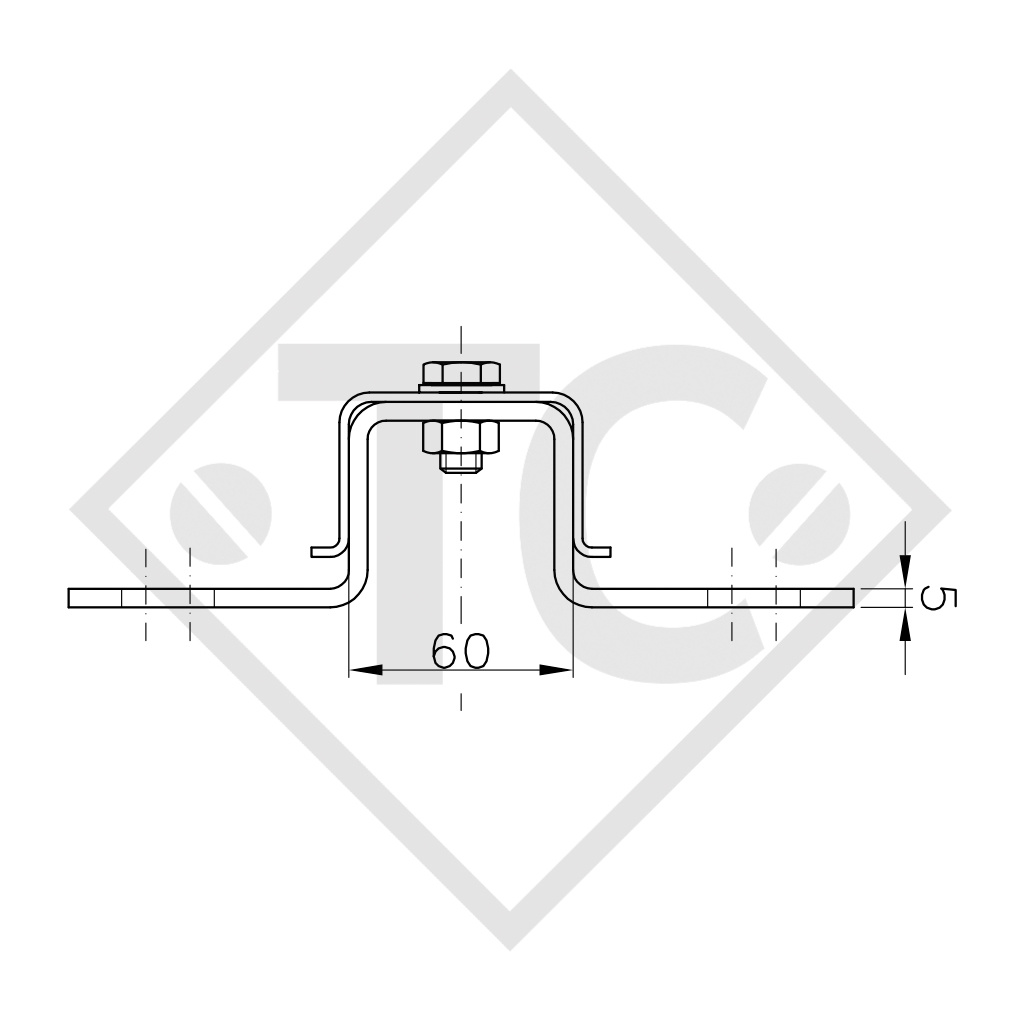

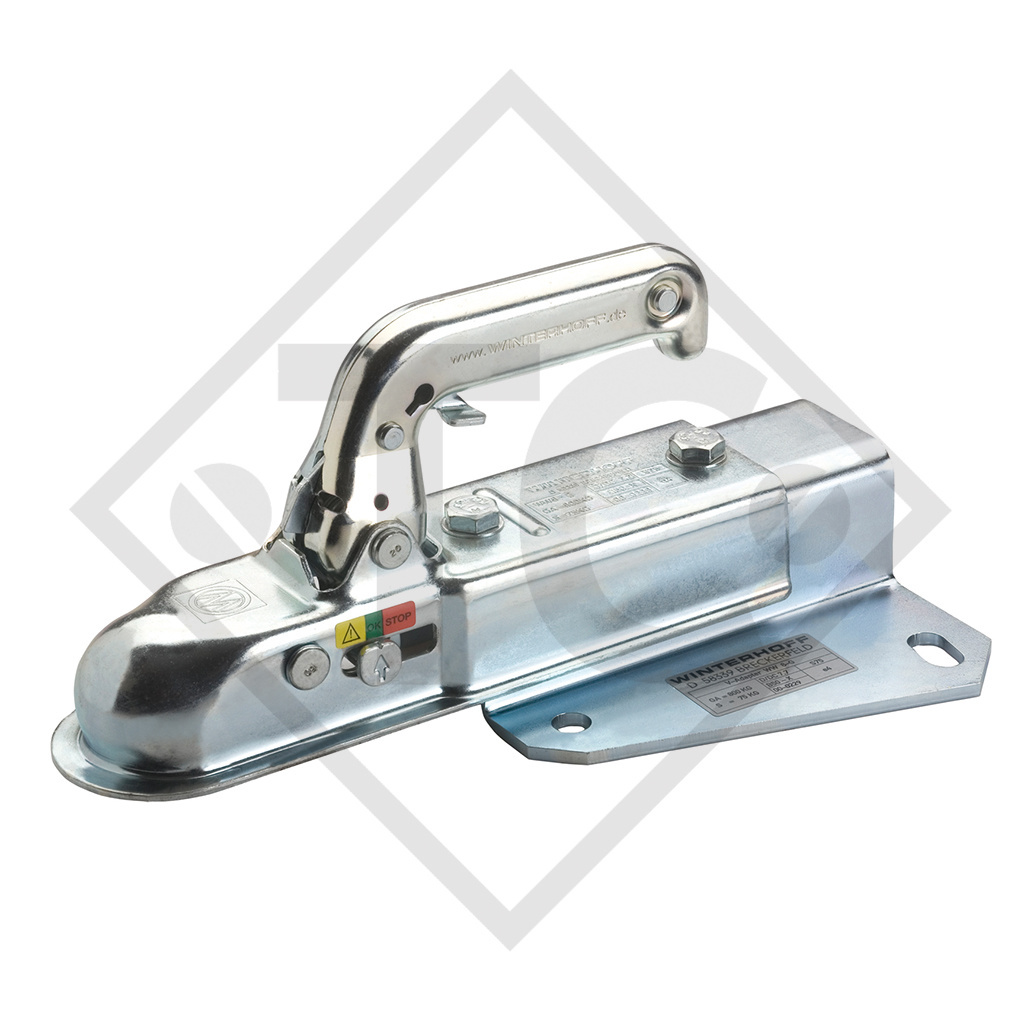

drawbar □60mm square with mounting plate V, holes (screw connection) vertical 13mm, hole distance 100/130/145-169mm, perm. gross weight 800kg, nose load 75kg, material: steel. Read more...

Wishlist: Add to comparison:
Price 92,90 EUR Incl. tax Excl. Shipping costs
Drawbar
□ 60mm + mounting plate V
Holes (screw connection) 13mm

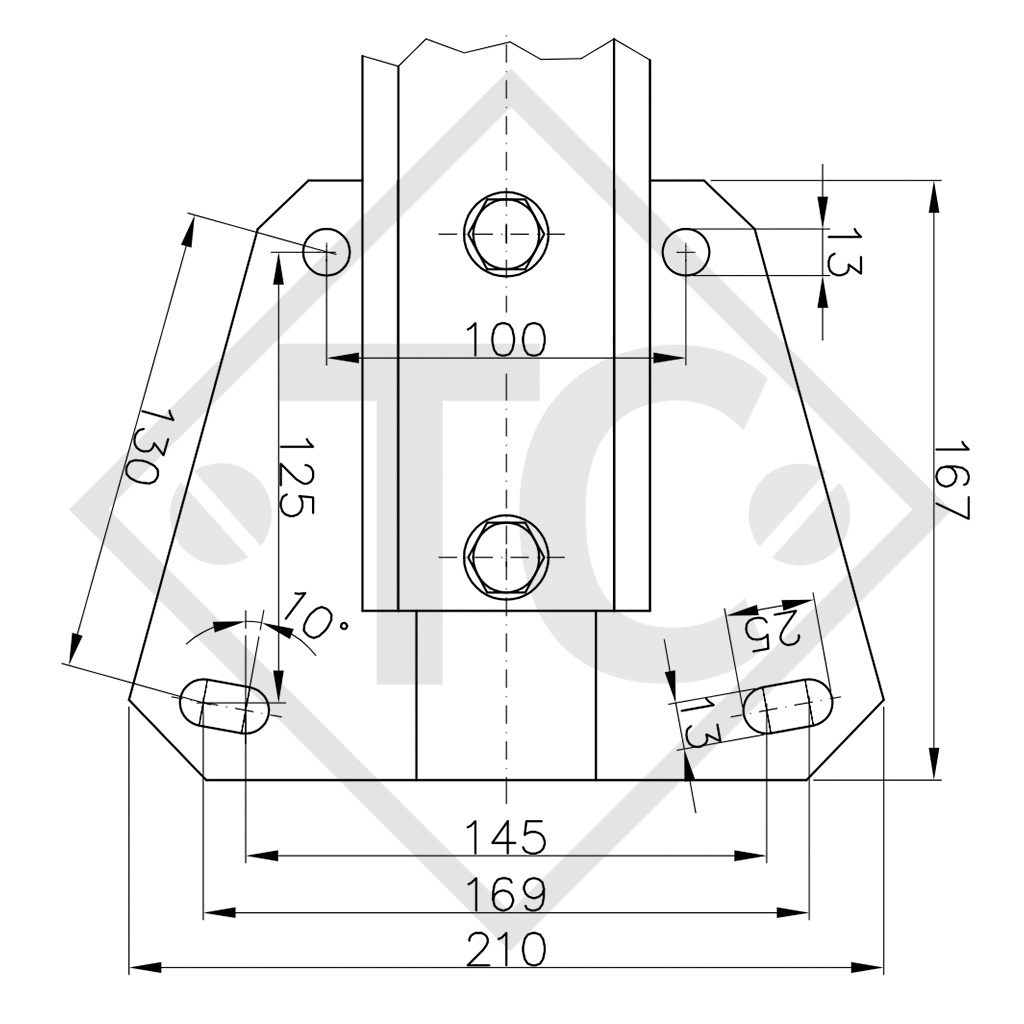

Hole distance 100/130/145-169mm
Perm. gross weight 800 kg
Nose load
75 kg
D / Dc value
7,7 kN
Material steel
Tightening torque
75 Nm
ECE type approval no. E1 55R-01 2211



  • Galvanised
    Standard corrosion protection
  • Wear indicator
    Wear indicator for the coupling head
  • Lock option (not included in scope of delivery)
    Anti-theft device to prevent rapid access

BASIC PRODUCT LINE
The BASIC products are entirely solid and robust.
They are characterised by very good processing properties for the respective area of application and are essential in day-to-day trailer use, as they fulfil the basic needs of the trailer users.
We ensure that these Basic variants also meet our high quality standards and exceed the legal minimum requirements.

Here, you can find the catalogue page as a convenient PDF download, page 31.
You can also enter the part no. from the catalogue as a search term in our online store.
