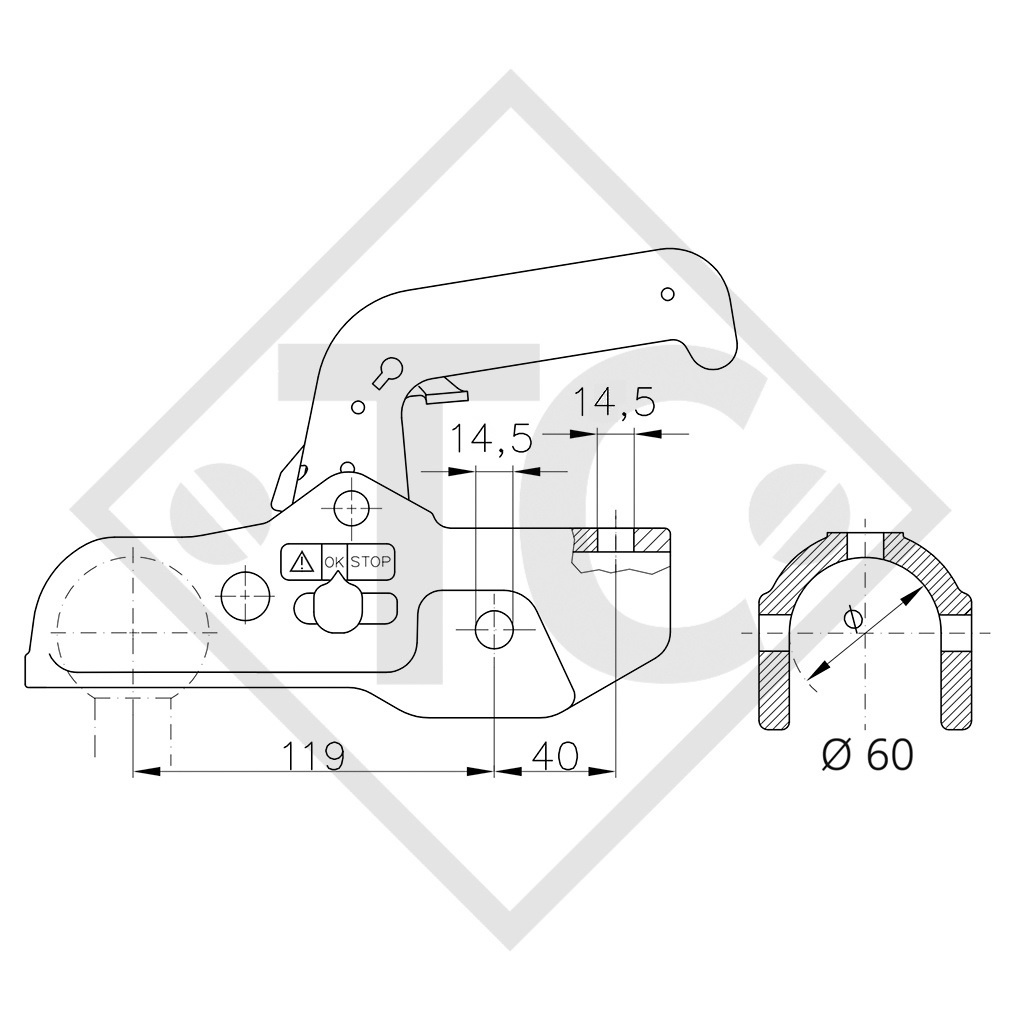

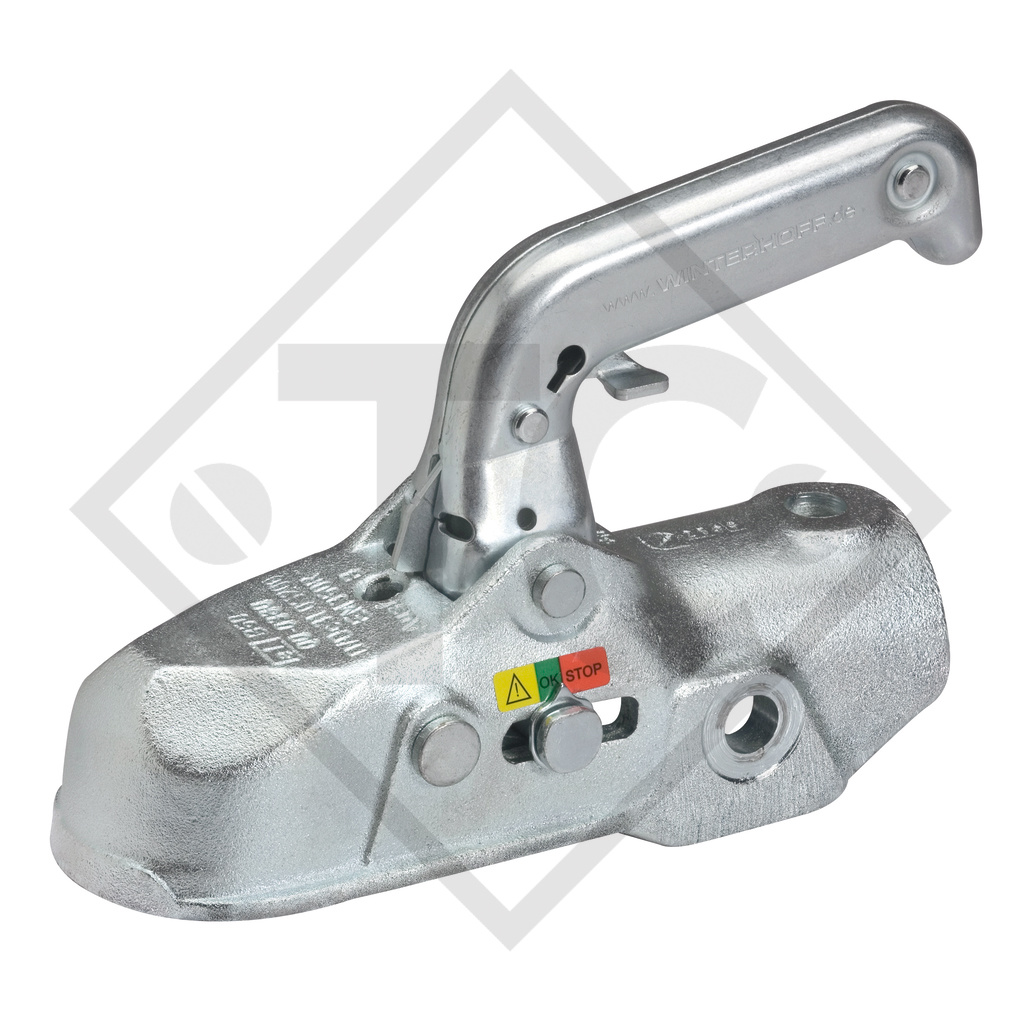

drawbar ⌀60mm round, holes (screw connection) cross 14.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron. Read more...
| Drawbar ⌀ |
60mm |
| Holes (screw connection) | cross 14,5mm |
| Hole distance | 40mm |
| Perm. gross weight | 3500 kg |
| Nose load |
200 kg |
| D / Dc value |
31 kN |
| Material | malleable cast iron |
| Tightening torque |
75 Nm |
| ECE type approval no. | R55-010380 E1 |
