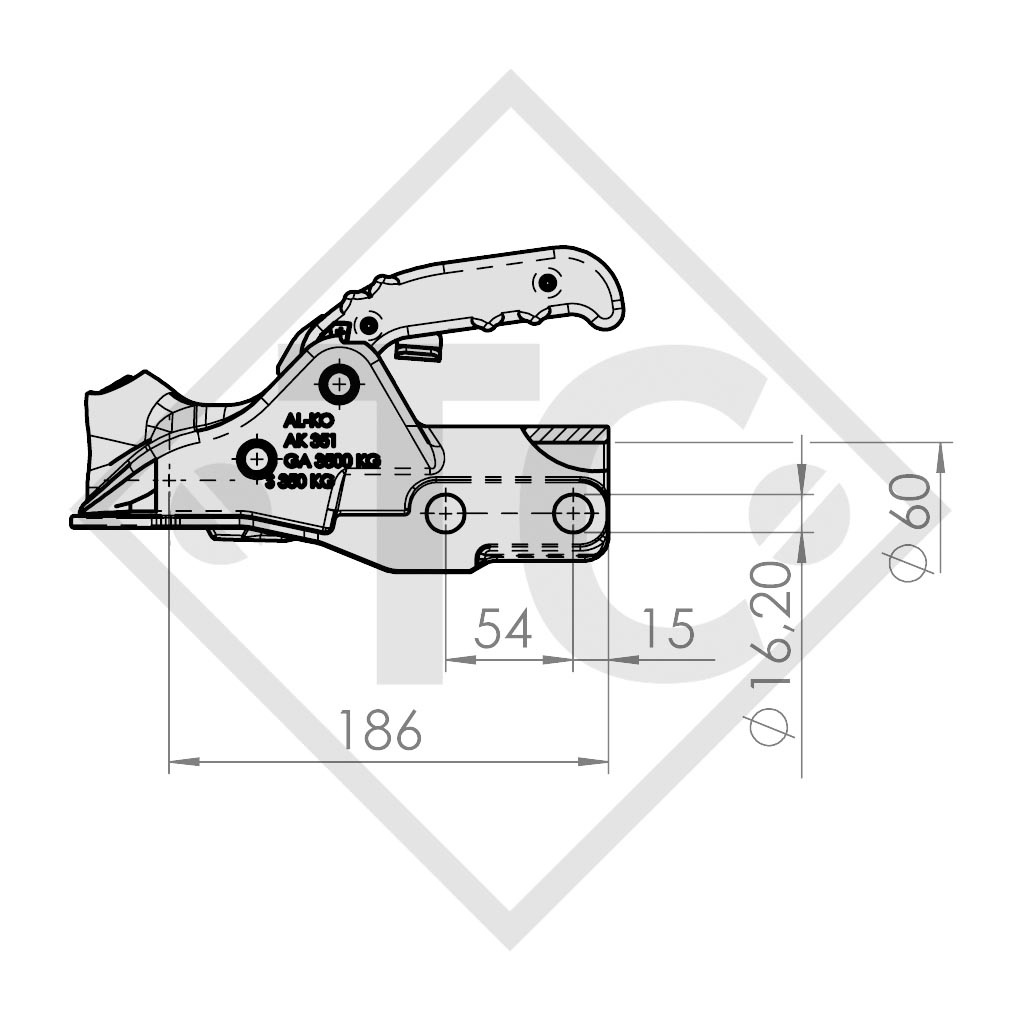

drawbar ⌀60mm round, holes (screw connection) horizontal 16.2mm, hole distance horizontal 54mm, perm. gross weight 3500kg, nose load 350kg, material: cast iron. Read more...
| Drawbar tube ⌀ |
60mm |
| Holes (screw connection) | horizontal 16,2mm |
| Hole distance | horizontal 50mm |
| Perm. gross weight | 3500 kg |
| Nose load |
350 kg |
| D / Dc value |
31,0 kN |
| Material | Cast iron |
| Tightening torque |
195 Nm |
| ECE type approval no. | E1 55R-01 1595 |

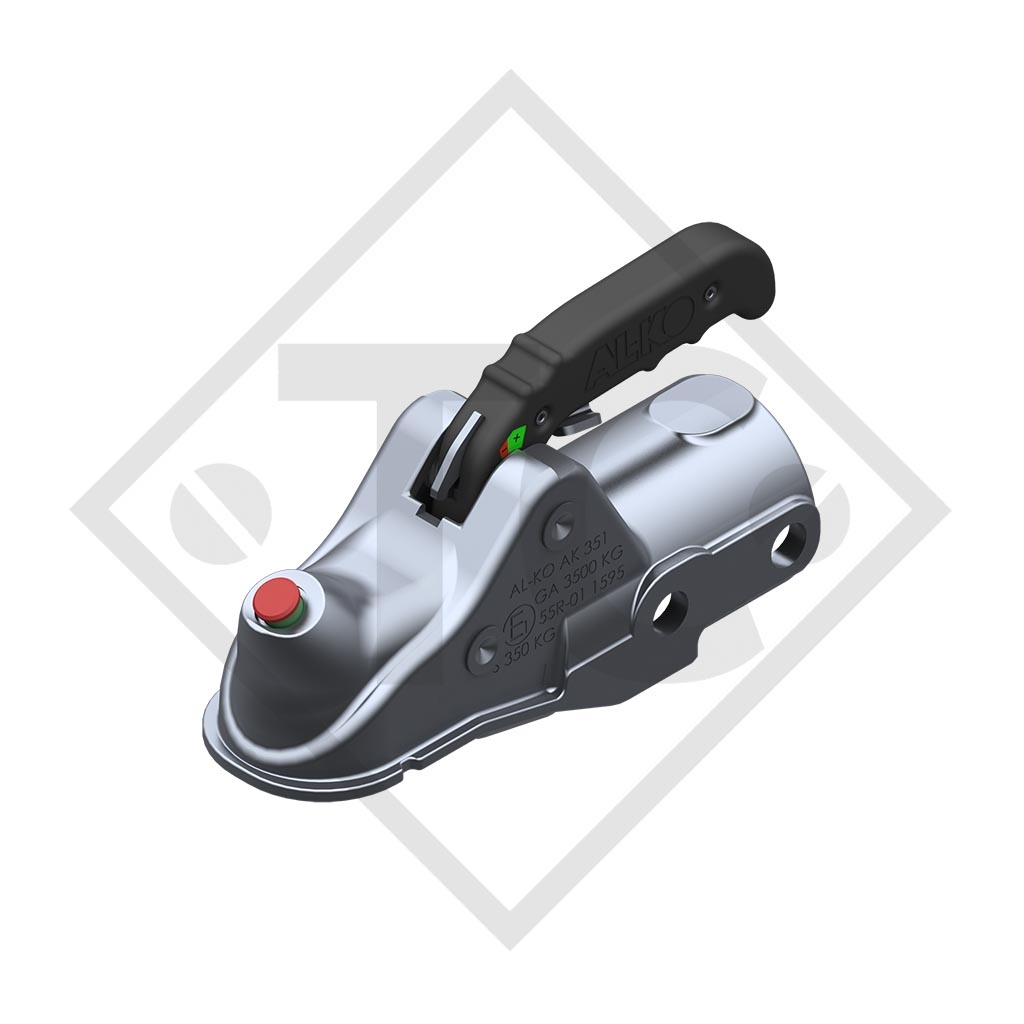

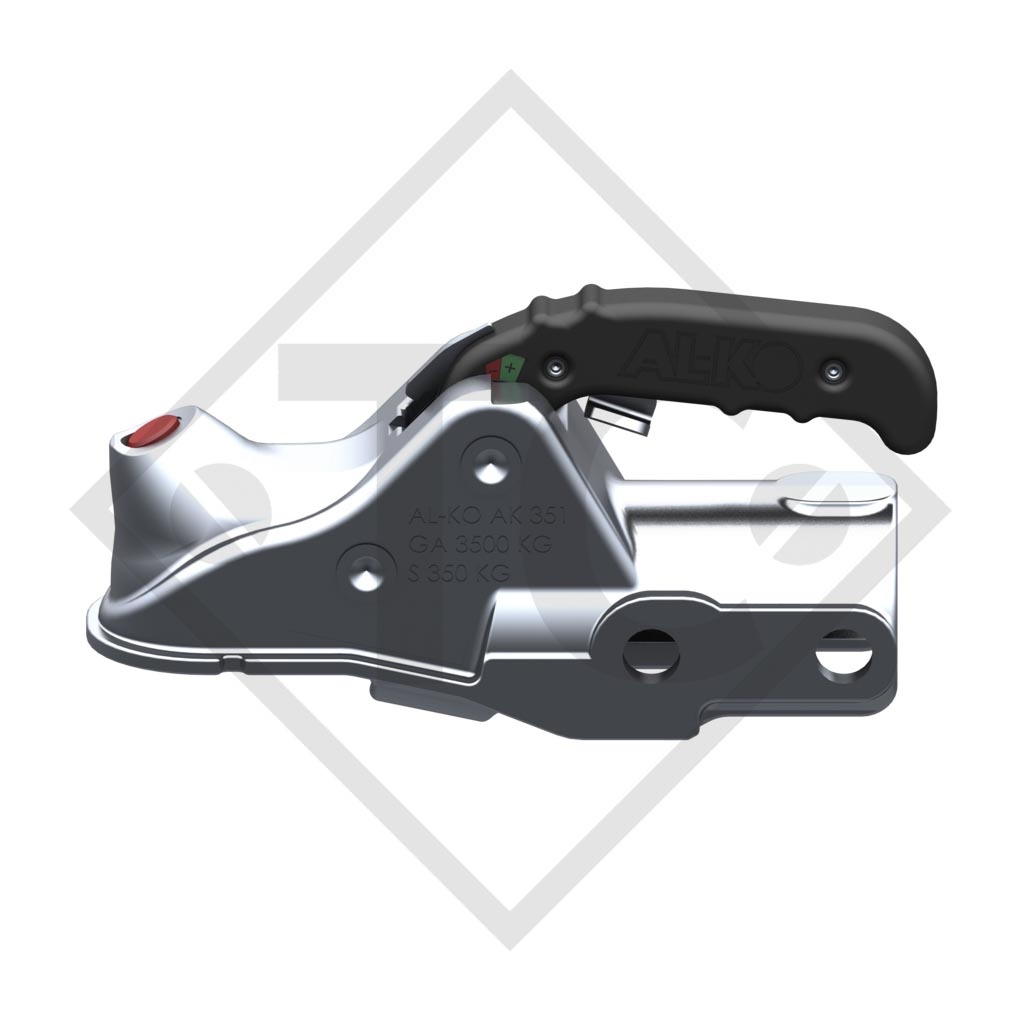

COUPLING HEAD AK 351
for braked trailers up to 3500kg
SAFE HITCHING UP
1. Clear open position
The hand grip points diagonally upwards and indicates to the operator: Hitch is not yet locked!
1a. Protective cover for safe hitching
2. Clear closed position
The car's towing hitch engages. Only at this point does the hand grip move to the hori-zontal position, and indicate to the user: Hitch is locked!
3. Wear indicator
Provides information about the status of your trailer's hitch as well as the towing hitch of your car.
4. Safety indicator
If the green cylinder is visible in hitched condition, you know that the hitch has been positioned correctly on your towing vehicle's ball.
