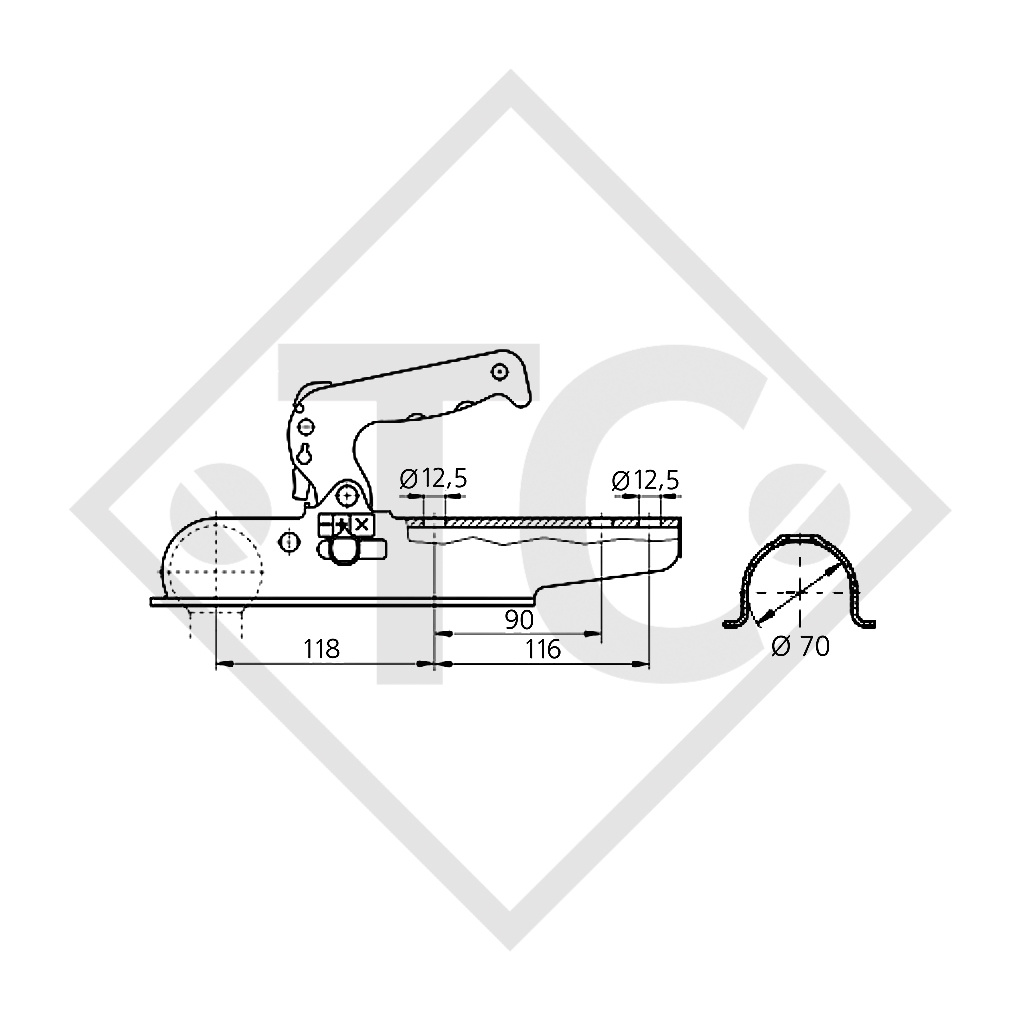

drawbar ⌀70mm round, holes (screw connection) vertical 12.5mm, hole distance 90/116mm, perm. gross weight 800kg, nose load 75kg, material: steel. Read more...
IMPORTANT INFORMATION: The manufacturer ALBE BERNDES has been sold. Item 1860761 (W1164) will be automatically supplied as an alternative. This item exhibits identical characteristics. It is merely produced by a different manufacturer.
| Drawbar ⌀ |
70mm |
| Holes (screw connection) | vertical 12,5mm |
| Hole distance | 90 / 116mm |
| Perm. gross weight | 800 kg |
| Nose load |
75 kg |
| D / Dc value |
7,7 kN |
| Material | steel |
| Tightening torque |
75 Nm |
| ECE type approval no. | R55-010412 E1 |
