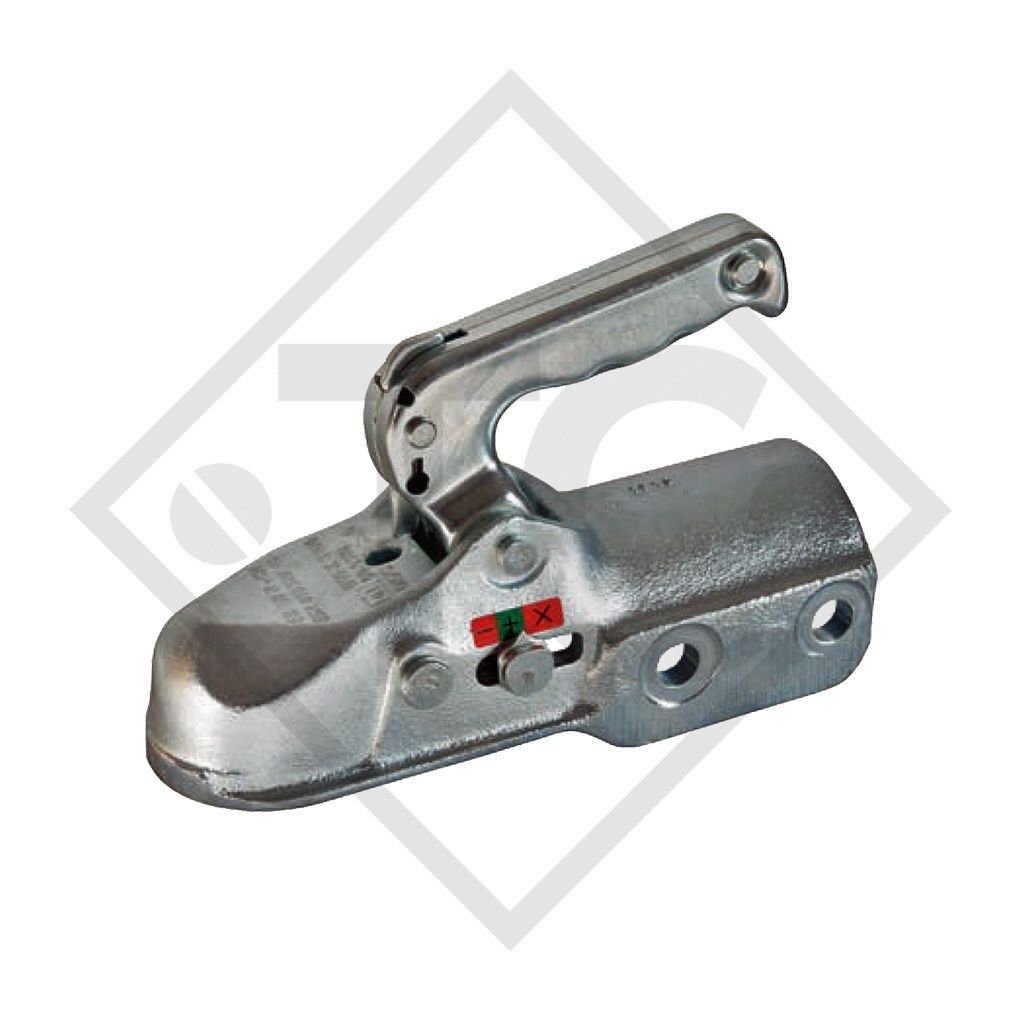

drawbar ⌀60mm round, holes (screw connection) horizontal 16.5mm, hole distance horizontal 54mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron. Read more...
IMPORTANT INFORMATION: The manufacturer ALBE BERNDES has been sold. Item 1860810 (W1189) will be automatically supplied as an alternative. This item exhibits identical characteristics. It is merely produced by a different manufacturer.

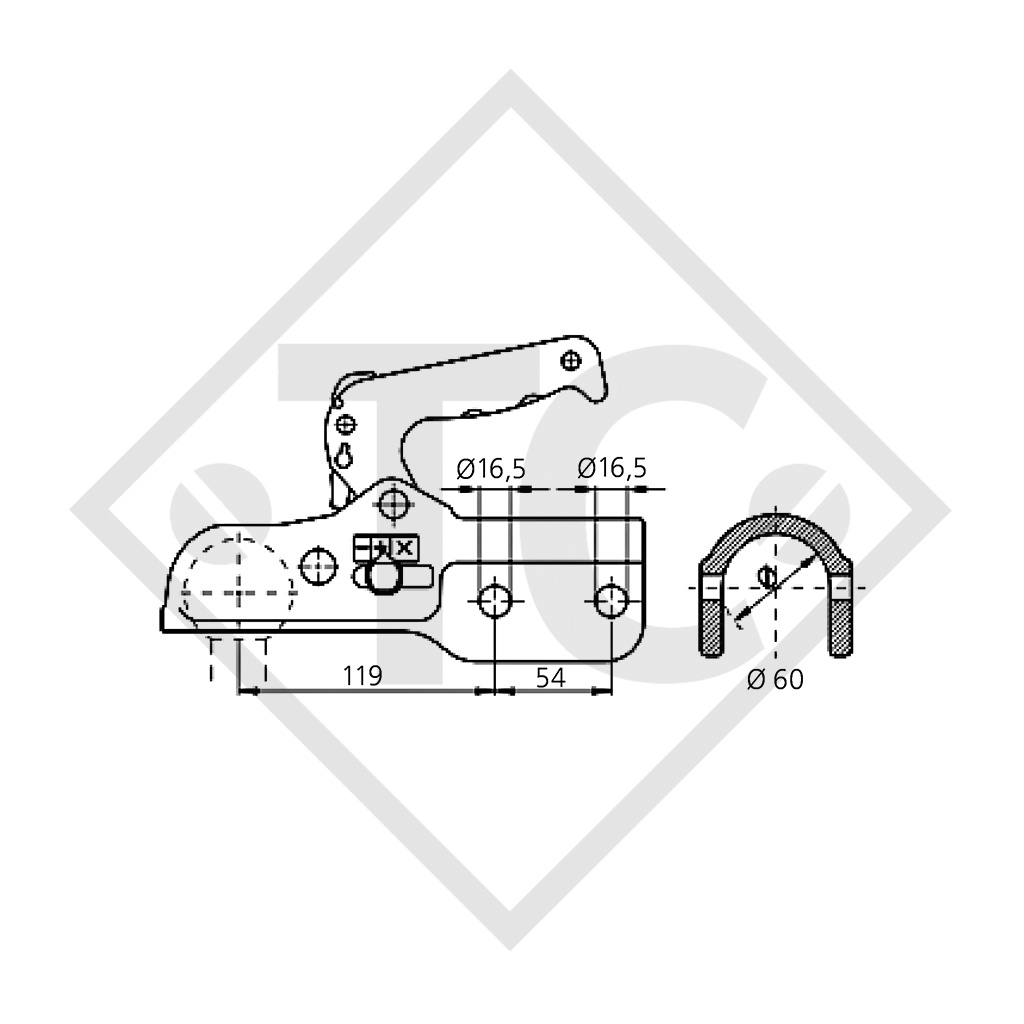

| Drawbar ⌀ |
60mm |
| Holes (screw connection) | horizontal 16,5mm |
| Hole distance | 54mm |
| Perm. gross weight | 3500 kg |
| Nose load |
200 kg |
| D / Dc value |
31 kN |
| Material | malleable cast iron |
| Tightening torque |
195 Nm |
| ECE type approval no. | R55-010380 E1 |
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
