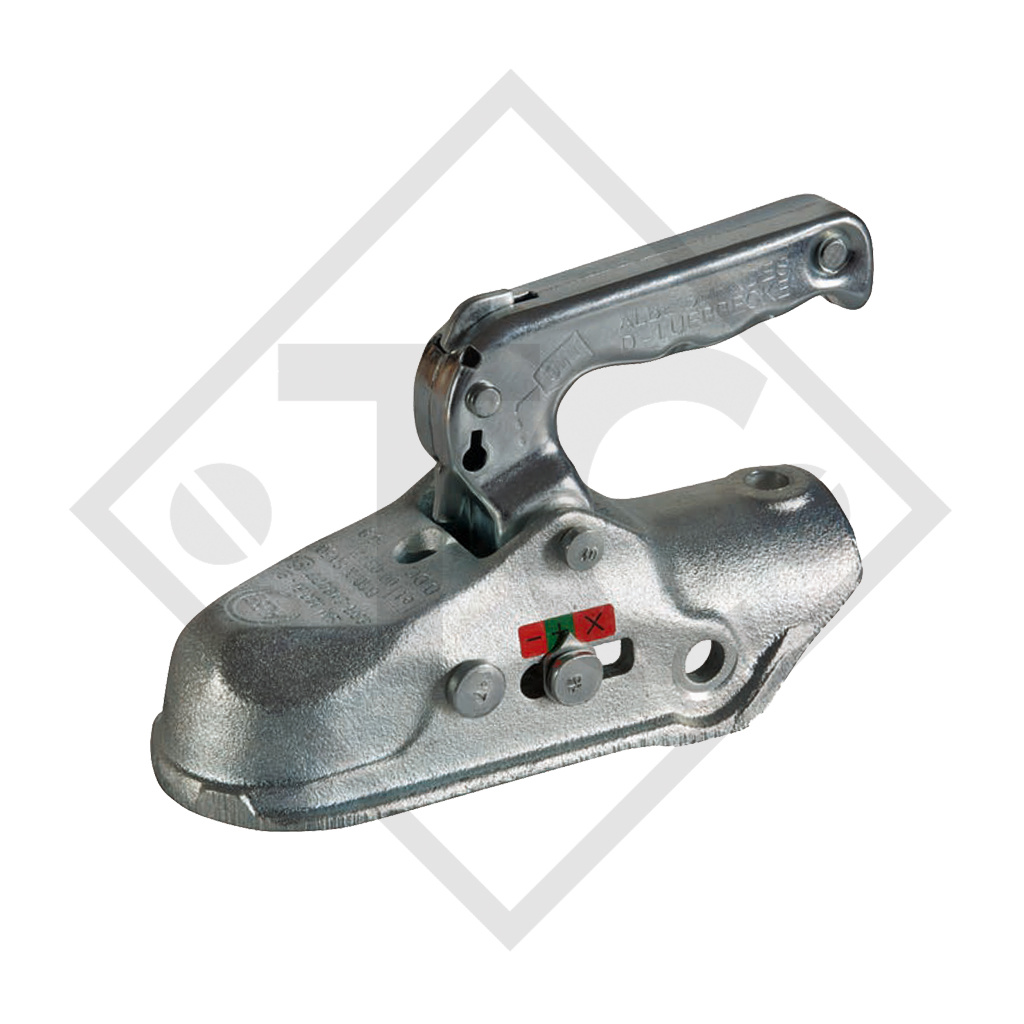

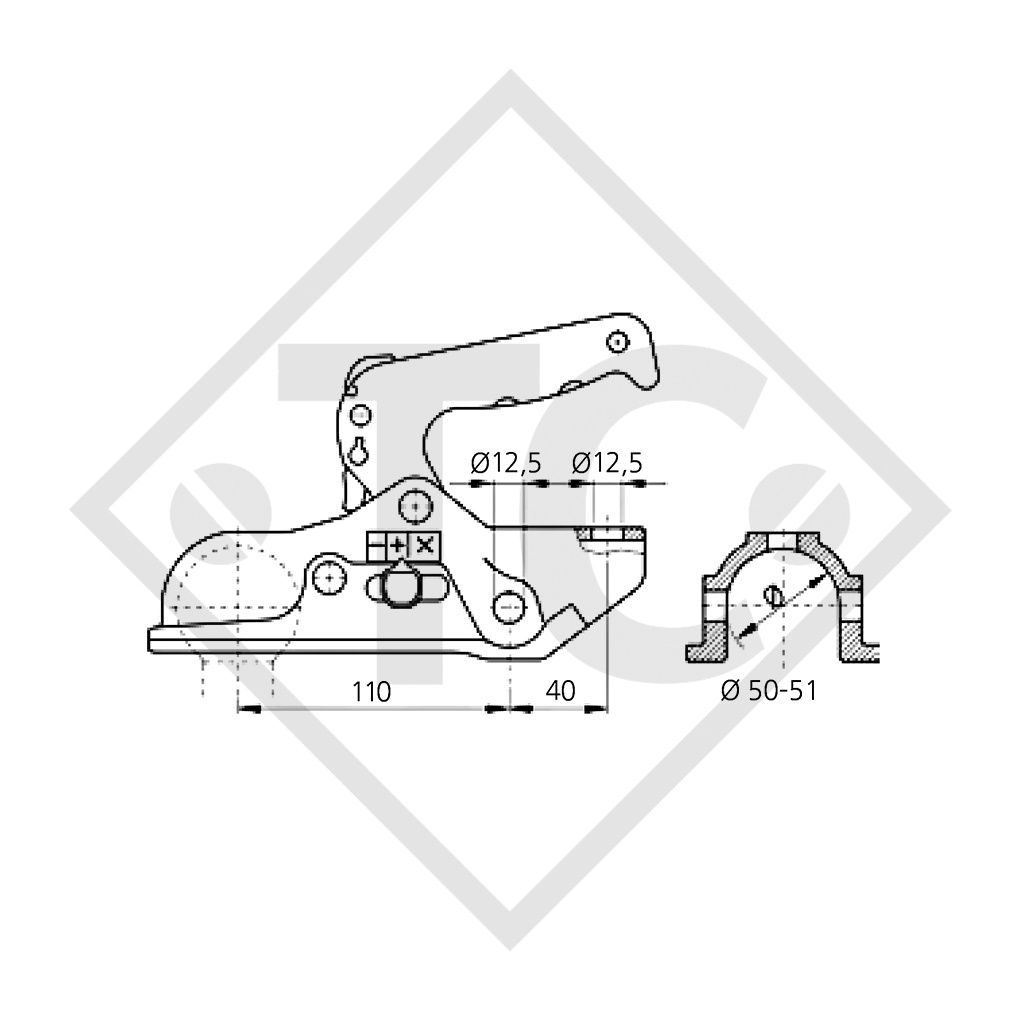

drawbar ⌀50-51mm round, holes (screw connection) cross 12.5mm, hole distance 40mm, perm. gross weight 3000kg, nose load 150kg, material: malleable cast iron. Read more...
IMPORTANT INFORMATION: The manufacturer ALBE BERNDES has been sold. Item 1860798 (W1140) will be automatically supplied as an alternative. This item exhibits identical characteristics. It is merely produced by a different manufacturer.
| Drawbar ⌀ |
50-51mm |
| Holes (screw connection) | cross 12,5mm |
| Hole distance | 40mm |
| Perm. gross weight | 3000 kg |
| Nose load |
150 kg |
| D / Dc value |
27 kN |
| Material | malleable cast iron |
| Tightening torque |
75 Nm |
| ECE type approval no. | R55-010377 E1 |
