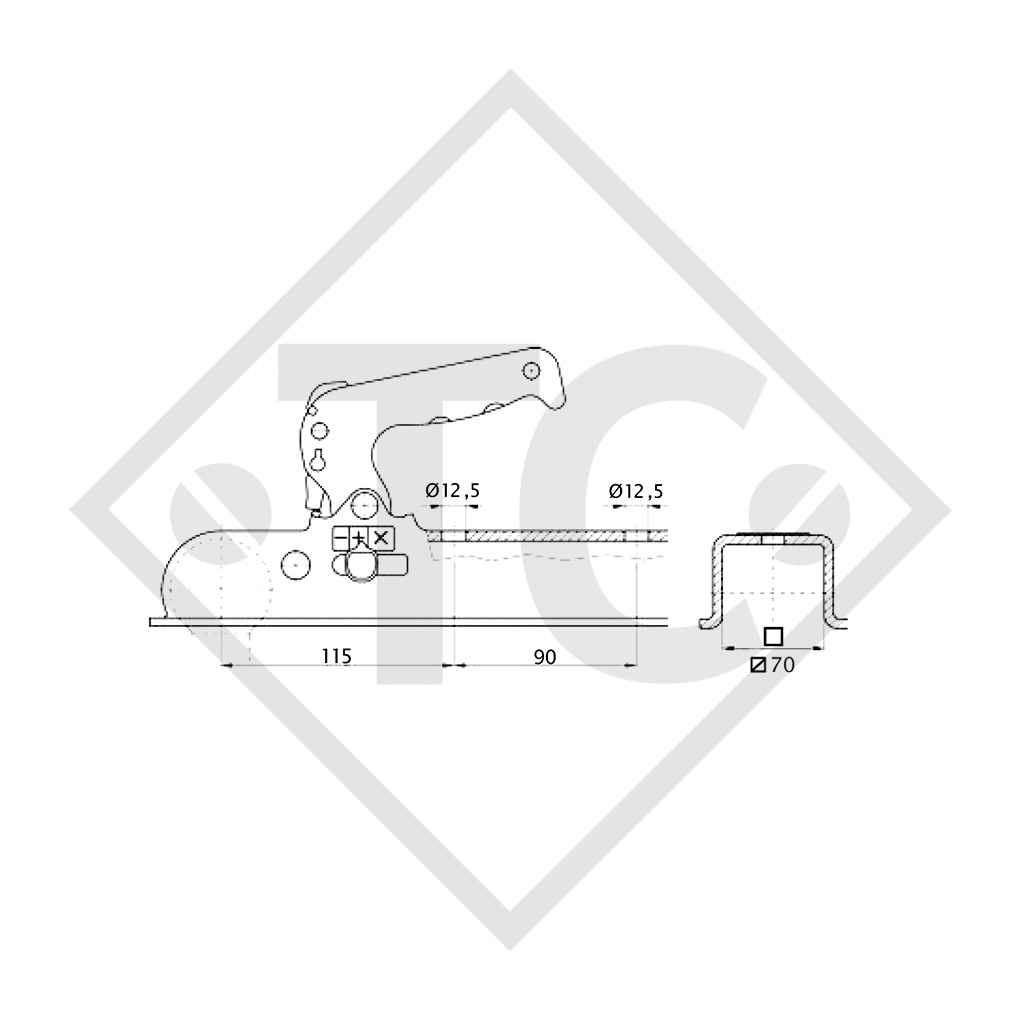

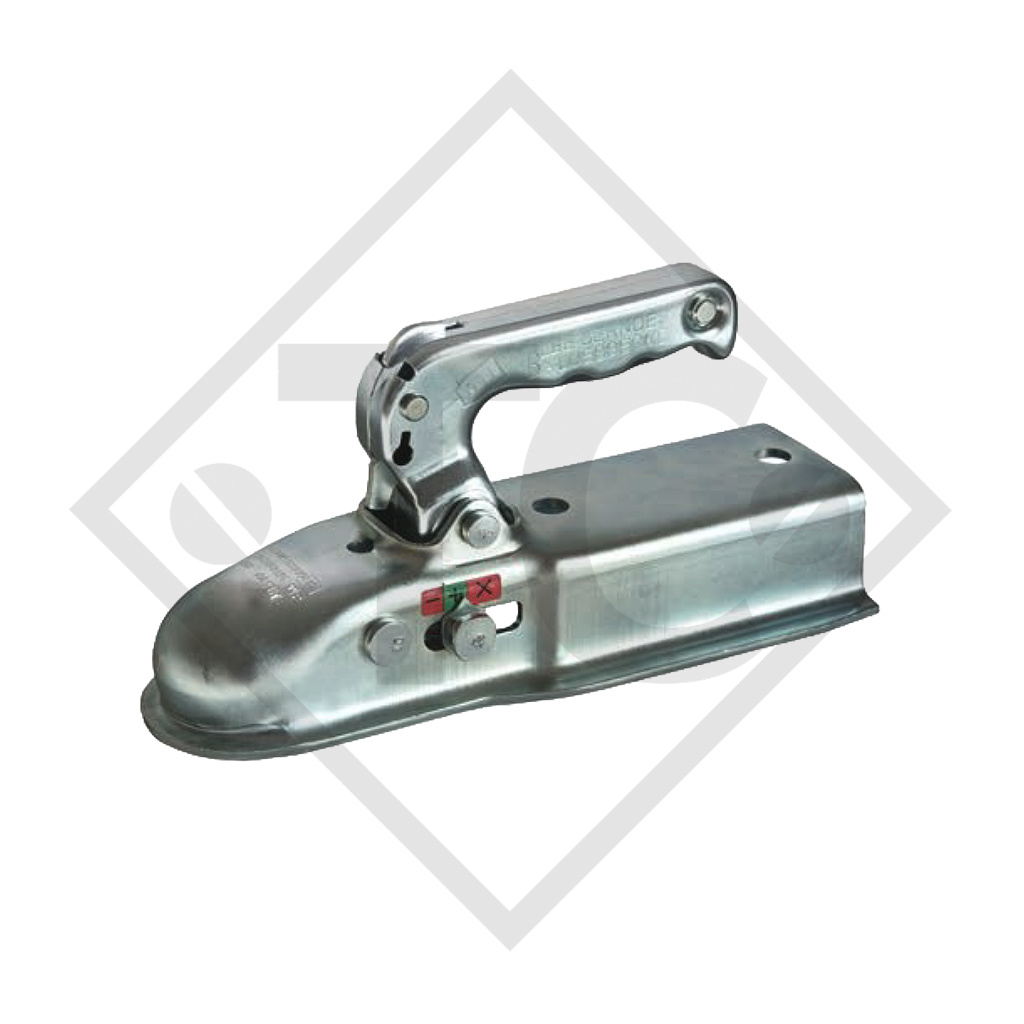

drawbar ⌀70mm square, holes (screw connection) vertical 12.5mm, hole distance 90mm, perm. gross weight 1500kg, nose load 100kg, material: steel. Read more...
IMPORTANT INFORMATION: The manufacturer ALBE BERNDES has been sold. Item 1860765 (W1168) will be automatically supplied as an alternative. This item exhibits identical characteristics. It is merely produced by a different manufacturer.
| Drawbar ⌀ |
70mm |
| Holes (screw connection) | vertical 12,5mm |
| Hole distance | 90mm |
| Perm. gross weight | 1500 kg |
| Nose load |
100 kg |
| D / Dc value |
14,1 kN |
| Material | steel |
| Tightening torque |
75 Nm |
| ECE type approval no. | R55-010434 E1 |
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
