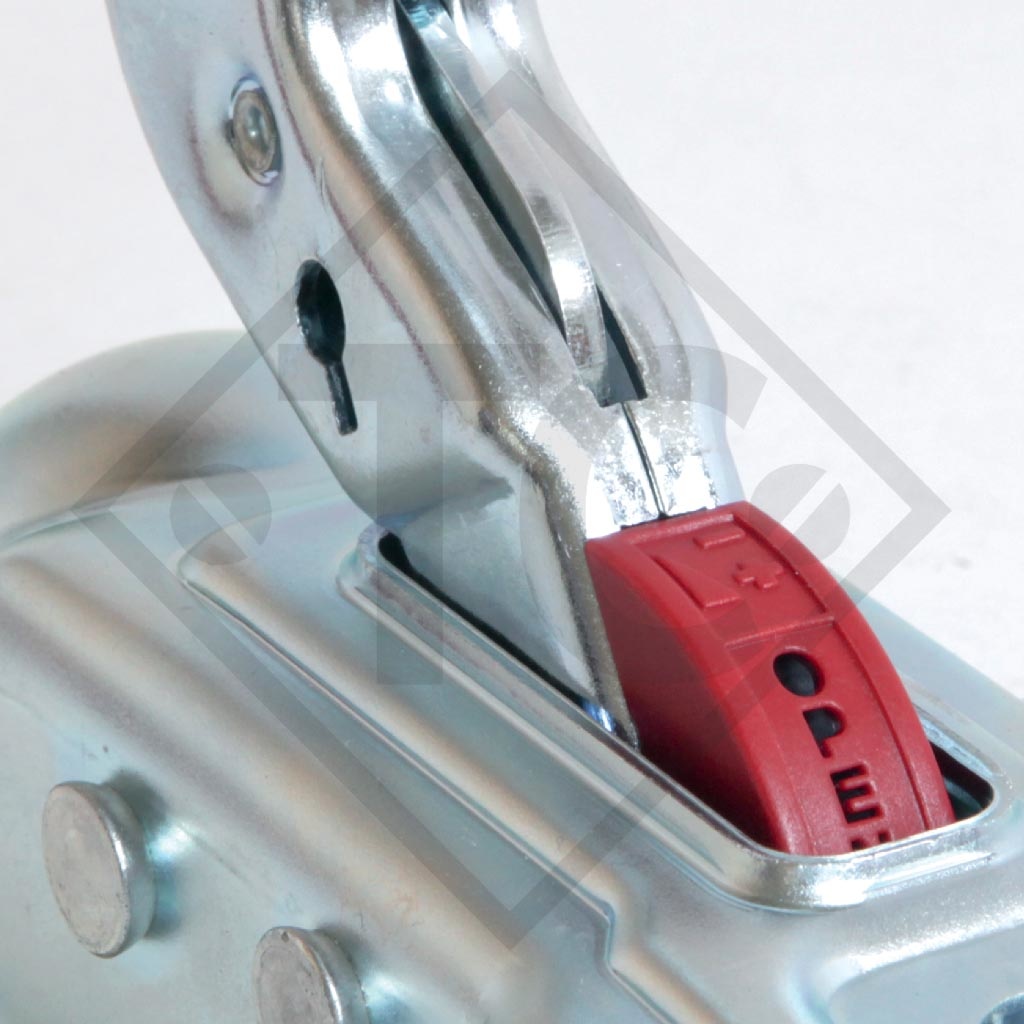

Home / Coupling head AK 7 version I with plug holder for unbraked trailers

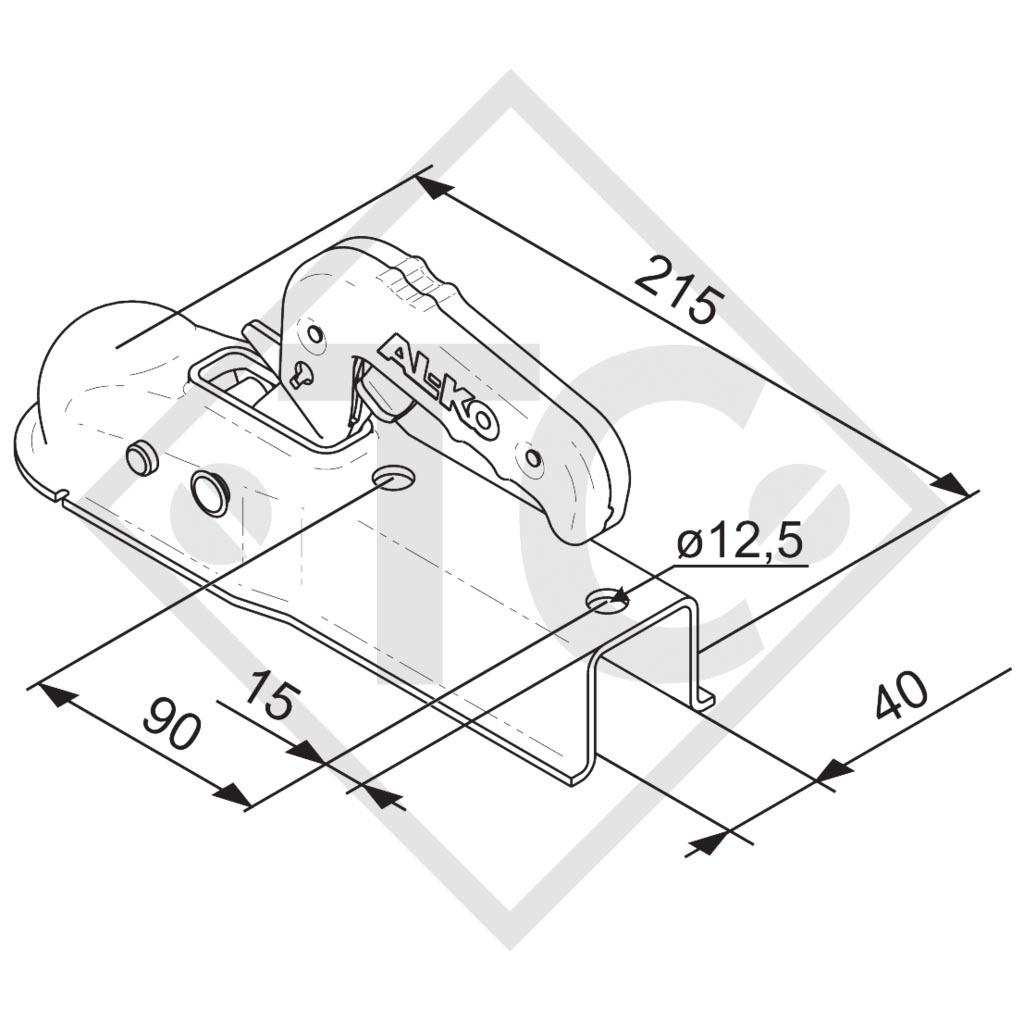

drawbar ⌀40mm square, holes (screw connection) vertical 12.5mm, hole distance 90mm, perm. gross weight 750kg, nose load 75kg, material: steel, with plug holder. Read more...
| Drawbar □ |
40mm |
| Holes (screw connection) | vertical 12.5mm |
| Hole distance | 90mm |
| Perm. gross weight | 750 kg |
| Nose load |
75 kg |
| D / Dc value |
7,19 kN |
| Material | steel |
| Tightening torque |
75 Nm |
| ECE type approval no. | E1 55R-01 0232 |
Original operating instructions
