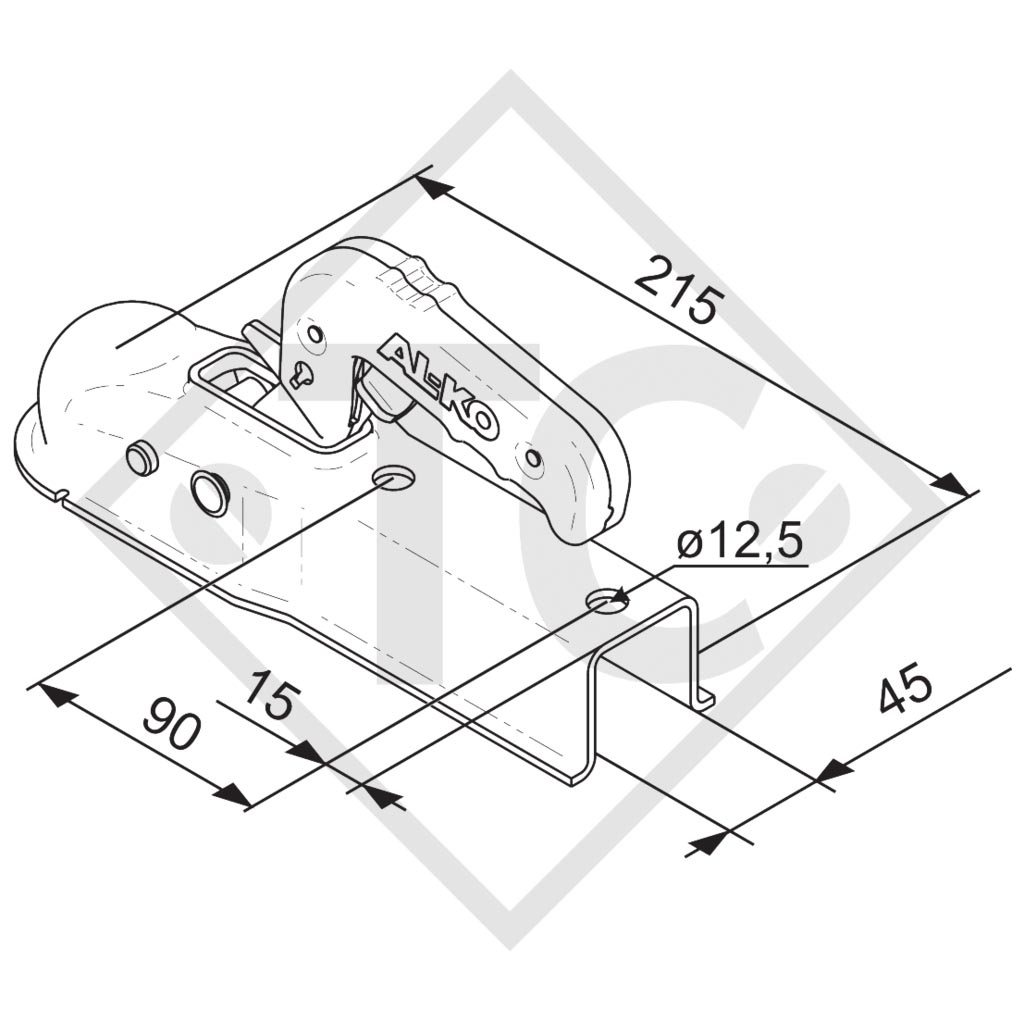

drawbar ⌀45mm square, holes (screw connection) vertical 12.5mm, hole distance 90mm, perm. gross weight 750kg, nose load 75kg, material: steel. Read more...
| Drawbar □ |
45mm |
| Holes (screw connection) | vertical 12.5mm |
| Hole distance | 90mm |
| Perm. gross weight | 750 kg |
| Nose load |
75 kg |
| D / Dc value |
7,19 kN |
| Material | steel |
| Tightening torque |
75 Nm |
| ECE type approval no. | E1 55R-01 0232 |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
