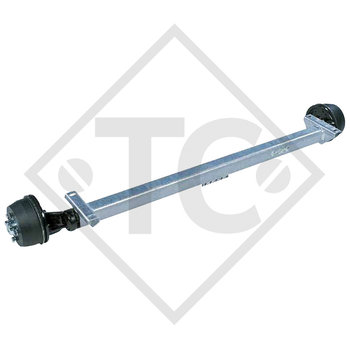

BPW Braked axle 750kg SWING, axle type CB 855 for braked trailers

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 750KG SWING, AXLE TYPE CB 855

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

BPW Braked axle 750kg SWING, axle type CB 855

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 98x4; 130x4 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket

How do I find the right axle?

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.075
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.075
BC: dimension AM 1250mm, OHF: dimension FL 1680mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 430,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.076
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.076
BC: dimension AM 1300mm, OHF: dimension FL 1730mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 501,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.077
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.077
BC: dimension AM 1350mm, OHF: dimension FL 1780mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 496,60 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.078
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.078
BC: dimension AM 1400mm, OHF: dimension FL 1830mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 501,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.079
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.079
BC: dimension AM 1450mm, OHF: dimension FL 1880mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 445,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.080
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.080
BC: dimension AM 1500mm, OHF: dimension FL 1930mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 506,80 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.081
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.081
BC: dimension AM 1550mm, OHF: dimension FL 1980mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 453,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.082
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.082
BC: dimension AM 1600mm, OHF: dimension FL 2030mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 511,70 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.083
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.083
BC: dimension AM 1650mm, OHF: dimension FL 2080mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 461,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.084
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.084
BC: dimension AM 1700mm, OHF: dimension FL 2130mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 516,60 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.085
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.085
BC: dimension AM 1750mm, OHF: dimension FL 2180mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 469,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.086
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.086
BC: dimension AM 1800mm, OHF: dimension FL 2230mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 521,60 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.087
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.087
BC: dimension AM 1850mm, OHF: dimension FL 2280mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 474,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.088
BPW Braked tandem front axle 850kg SWING axle type CB 855, 46.16.382.088
BC: dimension AM 1900mm, OHF: dimension FL 2330mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 64mm, ball-head wheel bolts M12x1.5.
Price 526,50 EUR Incl. tax Excl. Shipping costs
