BPW Braked axle 1800kg SWING, axle type CB 1805, axle tube square 80/82mm for braked trailers

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1800KG SWING, AXLE TYPE CB 1805, AXLE TUBE SQUARE 80/82MM

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

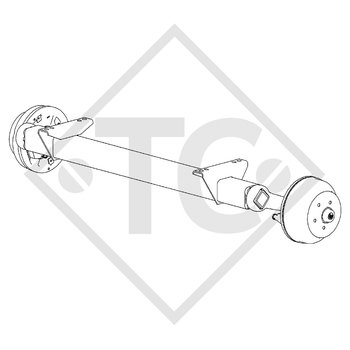

BPW Braked axle 1800kg SWING, axle type CB 1805 axle tube square 80/82mm

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket

How do I find the right axle?

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Braked axle SWING 1800kg axle type CB 1805, 4021150
BPW Braked axle SWING 1800kg axle type CB 1805, 4021150
BC: dimension AM 1600mm, OHF: dimension FL 2090mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 932,40 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4021151
BPW Braked axle SWING 1800kg axle type CB 1805, 4021151
BC: dimension AM 1700mm, OHF: dimension FL 2190mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 940,40 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4021152
BPW Braked axle SWING 1800kg axle type CB 1805, 4021152
BC: dimension AM 1800mm, OHF: dimension FL 2290mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 948,40 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4021153
BPW Braked axle SWING 1800kg axle type CB 1805, 4021153
BC: dimension AM 1900mm, OHF: dimension FL 2390mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 937,70 EUR Incl. tax Excl. Shipping costs

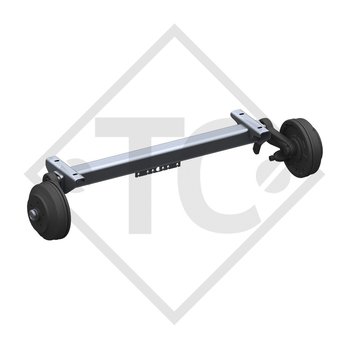

Braked tandem front axle SWING 1800kg axle type CB 1805, 4021154
BPW Braked tandem front axle SWING 1800kg axle type CB 1805, 4021154
BC: dimension AM 1000mm, OHF: dimension FL 1490mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 884,20 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1800kg axle type CB 1805, 4021155
BPW Braked tandem front axle SWING 1800kg axle type CB 1805, 4021155
BC: dimension AM 1100mm, OHF: dimension FL 1590mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 892,20 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1800kg axle type CB 1805, 4021156
BPW Braked tandem front axle SWING 1800kg axle type CB 1805, 4021156
BC: dimension AM 1200mm, OHF: dimension FL 1690mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 915,00 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1800kg axle type CB 1805, 4021157
BPW Braked tandem front axle SWING 1800kg axle type CB 1805, 4021157
BC: dimension AM 1300mm, OHF: dimension FL 1790mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 908,30 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1800kg axle type CB 1805, 4021158
BPW Braked tandem front axle SWING 1800kg axle type CB 1805, 4021158
BC: dimension AM 1400mm, OHF: dimension FL 1890mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 916,30 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1800kg axle type CB 1805, 4021159
BPW Braked tandem front axle SWING 1800kg axle type CB 1805, 4021159
BC: dimension AM 1500mm, OHF: dimension FL 1990mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 924,30 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1800kg axle type CB 1805, 4021160
BPW Braked tandem front axle SWING 1800kg axle type CB 1805, 4021160
BC: dimension AM 1600mm, OHF: dimension FL 2090mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 932,40 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1800kg axle type CB 1805, 4021161
BPW Braked tandem front axle SWING 1800kg axle type CB 1805, 4021161
BC: dimension AM 1700mm, OHF: dimension FL 2190mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 940,40 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1800kg axle type CB 1805, 4021162
BPW Braked tandem front axle SWING 1800kg axle type CB 1805, 4021162
BC: dimension AM 1800mm, OHF: dimension FL 2290mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 948,40 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1800kg axle type CB 1805, 4021163
BPW Braked tandem front axle SWING 1800kg axle type CB 1805, 4021163
BC: dimension AM 1900mm, OHF: dimension FL 2390mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80/82mm, ball-head wheel bolts M12x1.5.
Price 937,70 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 4013890
BPW Braked axle SWING 1800kg axle type CB 1805, 4013890
BC: dimension AM 1000mm, OHF: dimension FL 1461mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 885,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg axle type CB 1805, 46.31.368.041
BPW Braked axle 1800kg axle type CB 1805, 46.31.368.041
BC: dimension AM 1624mm, OHF: dimension FL 2080mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80/82mm.
Price 995,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg axle type GFA1800
NIEPER Braked axle 1800kg axle type GFA1800
BC: dimension AM 1500mm, OHF: dimension FL 1985mm, wheel connection 112x5, wheel brake type Knott 25-2025, offset (ET) 35mm, swing arm position 30°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 850,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg axle type CB 1805, 46.31.368.040
BPW Braked axle 1800kg axle type CB 1805, 46.31.368.040
BC: dimension AM 1624mm, OHF: dimension FL 2080mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80mm.
Price 1.335,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.887
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.887
BC: dimension AM 1550mm, OHF: dimension FL 2050mm, wheel connection 112x5, wheel brake type S 2304-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.150,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg SWING axle type CB 1805, 46.32.368.500
BPW Braked axle 1800kg SWING axle type CB 1805, 46.32.368.500
BC: dimension AM 900mm, OHF: dimension FL 1735mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.750,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg SWING axle type CB 1805, 46.32.368.501
BPW Braked axle 1800kg SWING axle type CB 1805, 46.32.368.501
BC: dimension AM 1000mm, OHF: dimension FL 1535mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.150,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg axle type CB 1805, 46.32.368.730
BPW Braked axle 1800kg axle type CB 1805, 46.32.368.730
BC: dimension AM 1600mm, OHF: dimension FL 2080mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 999,90 EUR Incl. tax Excl. Shipping costs
Page 2 of 2
