BPW Braked axle 1500kg SWING, axle type CB 1505 for braked trailers

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1500KG SWING, AXLE TYPE CB 1505

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

BPW Braked axle 1500kg SWING, axle type CB 1505

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket

How do I find the right axle?

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Braked axle SWING 1500kg axle type CB 1505, 46.27.379.099
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.099
BC: dimension AM 1300mm, OHF: dimension FL 1750mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 675,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.094
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.094
BC: dimension AM 1300mm, OHF: dimension FL 1750mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 675,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.095
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.095
BC: dimension AM 1300mm, OHF: dimension FL 1750mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 680,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.101
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.101
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 695,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.100
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.100
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 695,00 EUR Incl. tax Excl. Shipping costs

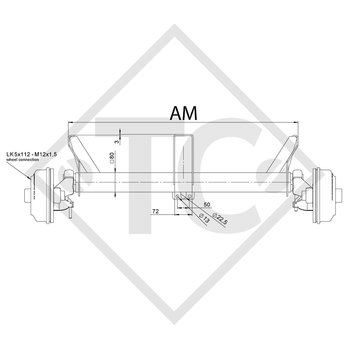

Braked axle SWING 1500kg axle type CB 1505, 46.27.379.735 HUMBAUR
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.735 HUMBAUR
BC: dimension AM 1500mm, OHF: dimension FL 2000mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.185,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.020
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.020
BC: dimension AM 1000mm, OHF: dimension FL 1480mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.230,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.021
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.021
BC: dimension AM 1100mm, OHF: dimension FL 1580mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.235,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.022
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.022
BC: dimension AM 1200mm, OHF: dimension FL 1680mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.240,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.023
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.023
BC: dimension AM 1300mm, OHF: dimension FL 1780mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5.
Price 1.245,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.380.008
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.380.008
BC: dimension AM 1500mm, OHF: dimension FL 1950mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 699,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.747 HUMBAUR
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.747 HUMBAUR
BC: dimension AM 730mm, OHF: dimension FL 1200mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 725,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.144
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.144
BC: dimension AM 1370mm, OHF: dimension FL 1840mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 680,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg axle type CB 1505, 49.27.379.046
BPW Braked axle 1500kg axle type CB 1505, 49.27.379.046
BC: dimension AM 1550mm, OHF: dimension FL 2120mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 1.865,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, 46.27.379.787
BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.787
BC: dimension AM 1550mm, OHF: dimension FL 2050mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 25°, axle profile 80mm.
Price 985,00 EUR Incl. tax Excl. Shipping costs
