BPW Braked axle 1350kg SWING, axle type CB 1355 for braked trailers

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1350KG SWING, AXLE TYPE CB 1355

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

BPW Braked axle 1350kg SWING, axle type CB 1355

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket

How do I find the right axle?

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Braked tandem front axle SWING 1350kg axle type CB 1355, 46.25.379.838
BPW Braked tandem front axle SWING 1350kg axle type CB 1355, 46.25.379.838
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 571,90 EUR Incl. tax Excl. Shipping costs

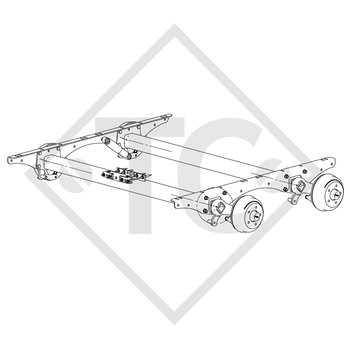

Braked tandem front axle SWING 1350kg axle type CB 1355, 4008922
BPW Braked tandem front axle SWING 1350kg axle type CB 1355, 4008922
BC: dimension AM 1250mm, OHF: dimension FL 1640mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 3.095,20 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 4012985 HUMBAUR
BPW Braked axle SWING 1350kg axle type CB 1355, 4012985 HUMBAUR
BC: dimension AM 1366mm, OHF: dimension FL 1665mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 0°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.110,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.347
BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.347
BC: dimension AM 1350mm, OHF: dimension FL 1810mm, wheel drawbar ⌀112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm.
Price 1.135,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.271
BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.271
BC: dimension AM 1000mm, OHF: dimension FL 1450mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 585,00 EUR Incl. tax Excl. Shipping costs

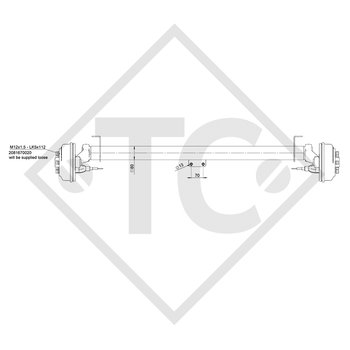

Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS
BPW Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS
BC: dimension AM 1200mm, OHF: dimension FL 1620mm, wheel connection 112x5, wheel brake type S 2005 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 799,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.490, HUMBAUR
BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.490, HUMBAUR
BC: dimension AM 1546mm, OHF: dimension FL 1855mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 745,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1500kg axle type CB 1505, HUMBAUR
BPW Braked axle SWING 1500kg axle type CB 1505, HUMBAUR
BC: dimension AM 1546mm, OHF: dimension FL 1855mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.175,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 41.24.316.50.0
BPW Braked axle SWING 1350kg axle type CB 1355, 41.24.316.50.0
BC: dimension AM 1000mm, OHF: dimension FL 1450mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 585,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 41.24.316.58.0
BPW Braked axle SWING 1350kg axle type CB 1355, 41.24.316.58.0
BC: dimension AM 1800mm, OHF: dimension FL 2250mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 669,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355
BPW Braked axle SWING 1350kg axle type CB 1355
BC: dimension AM 850mm, OHF: dimension FL 1300mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 580,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.427
BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.427
BC: dimension AM 1350mm, OHF: dimension FL 1750mm, wheel drawbar ⌀112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 765,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.498
BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.498
BC: dimension AM 1440mm, OHF: dimension FL 1921mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 660,00 EUR Incl. tax Excl. Shipping costs

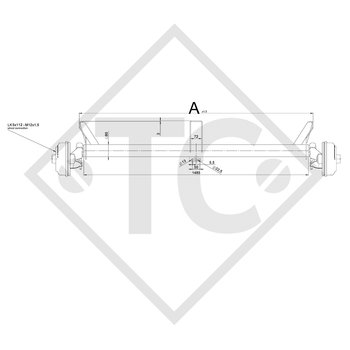

Braked axle SWING 1350kg axle type CB 1355, 46.24.379.499
BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.499
BC: dimension AM 1140mm, OHF: dimension FL 1621mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 695,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1050kg axle type CB 1055, 46.21.379.437 - Hirth / WM Meyer
BPW Braked axle SWING 1050kg axle type CB 1055, 46.21.379.437 - Hirth / WM Meyer
BC: dimension AM 735mm, OHF: dimension FL 1200mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 895,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.279
BPW Braked axle SWING 1350kg axle type CB 1355, 46.25.379.279
BC: dimension AM 1200mm, OHF: dimension FL 1630mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 595,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.115
BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.115
BC: dimension AM 1400mm, OHF: dimension FL 1830mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 625,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1354, 46.24.379.086
BPW Braked axle SWING 1350kg axle type CB 1354, 46.24.379.086
BC: dimension AM 1172mm, OHF: dimension FL 2125mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 935,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg axle type H 150 B, 3203787-2 Humbaur
WAP Braked axle 1500kg axle type H 150 B, 3203787-2 Humbaur
BC: dimension AM 1366mm, OHF: dimension FL 1665mm, wheel connection 112x5, wheel brake type W 205 RS, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 925,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.574
BPW Braked axle SWING 1350kg axle type CB 1355, 46.25.379.574
BC: dimension AM 1300mm, OHF: dimension FL 1750mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 695,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.144
BPW Braked axle SWING 1350kg axle type CB 1355, 46.25.379.144
BC: dimension AM 1400mm, OHF: dimension FL 1850mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 605,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.703 watertight
BPW Braked axle SWING 1350kg axle type CB 1355, 46.25.379.703 watertight
BC: dimension AM 1700mm, OHF: dimension FL 2150mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 721,50 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.450
BPW Braked axle SWING 1350kg axle type CB 1355, 46.25.379.450
BC: dimension AM 1750mm, OHF: dimension FL 2180mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 655,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1355, 46.24.379.448
BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.448
BC: dimension AM 920mm, OHF: dimension FL 1500mm, wheel connection 140x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M14x1.5.
Price 725,00 EUR Incl. tax Excl. Shipping costs
