BPW Braked axle 1350kg SWING, axle type CB 1354 for braked trailers

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1350KG SWING, AXLE TYPE CB 1354

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

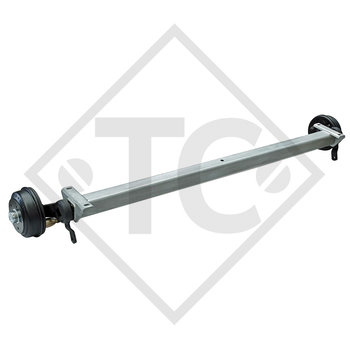

BPW Braked axle 1350kg SWING, axle type CB 1354

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket

How do I find the right axle?

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Braked axle SWING 1350kg axle type CB 1354, 46.25.379.738
BPW Braked axle SWING 1350kg axle type CB 1354, 46.25.379.738
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 571,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.780
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.780
BC: dimension AM 1000mm, OHF: dimension FL 1450mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 509,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.781
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.781
BC: dimension AM 1050mm, OHF: dimension FL 1500mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 583,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.782
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.782
BC: dimension AM 1100mm, OHF: dimension FL 1550mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 515,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.783
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.783
BC: dimension AM 1150mm, OHF: dimension FL 1600mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 590,00 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.784
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.784
BC: dimension AM 1200mm, OHF: dimension FL 1650mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 590,70 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.785
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.785
BC: dimension AM 1250mm, OHF: dimension FL 1700mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 596,10 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.786
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.786
BC: dimension AM 1300mm, OHF: dimension FL 1750mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 530,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.787
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.787
BC: dimension AM 1350mm, OHF: dimension FL 1800mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 602,20 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.788
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.788
BC: dimension AM 1400mm, OHF: dimension FL 1850mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 536,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.789
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.789
BC: dimension AM 1450mm, OHF: dimension FL 1900mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 608,20 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.790
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.790
BC: dimension AM 1500mm, OHF: dimension FL 1950mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 544,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.791
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.791
BC: dimension AM 1550mm, OHF: dimension FL 2000mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 614,30 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.792
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.792
BC: dimension AM 1600mm, OHF: dimension FL 2050mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 670,00 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.793
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.793
BC: dimension AM 1650mm, OHF: dimension FL 2100mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 620,40 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.794
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.794
BC: dimension AM 1700mm, OHF: dimension FL 2150mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 559,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.795
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.795
BC: dimension AM 1750mm, OHF: dimension FL 2200mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 626,50 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.796
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.796
BC: dimension AM 1800mm, OHF: dimension FL 2250mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 566,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.797
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.797
BC: dimension AM 1850mm, OHF: dimension FL 2300mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 632,60 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.798
BPW Braked tandem front axle SWING 1350kg axle type CB 1354, 46.25.379.798
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 571,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1354, 46.25.379.109
BPW Braked axle SWING 1350kg axle type CB 1354, 46.25.379.109
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 549,90 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1354
BPW Braked axle SWING 1350kg axle type CB 1354
BC: dimension AM 1500mm, OHF: dimension FL 1950mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, wheel bolts M12x1.5.
Price 660,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1354
BPW Braked axle SWING 1350kg axle type CB 1354
BC: dimension AM 1800mm, OHF: dimension FL 2250mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 670,00 EUR Incl. tax Excl. Shipping costs
Braked axle SWING 1350kg axle type CB 1354
BPW Braked axle SWING 1350kg axle type CB 1354
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 695,00 EUR Incl. tax Excl. Shipping costs
