BPW Braked axle 1050kg SWING, axle type CB 1054 for braked trailers

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / BRAKED AXLE 1050KG SWING, AXLE TYPE CB 1054

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

BPW Braked axle 1050kg SWING, axle type CB 1054

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket

How do I find the right axle?

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.665
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.665
BC: dimension AM 1250mm, OHF: dimension FL 1700mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 568,80 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.666
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.666
BC: dimension AM 1300mm, OHF: dimension FL 1750mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 504,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.667
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.667
BC: dimension AM 1350mm, OHF: dimension FL 1800mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 574,30 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.668
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.668
BC: dimension AM 1400mm, OHF: dimension FL 1850mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 579,60 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.669
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.669
BC: dimension AM 1450mm, OHF: dimension FL 1900mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 579,80 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.670
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.670
BC: dimension AM 1500mm, OHF: dimension FL 1950mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 519,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.671
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.671
BC: dimension AM 1550mm, OHF: dimension FL 2000mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 585,30 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.672
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.672
BC: dimension AM 1600mm, OHF: dimension FL 2050mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 590,60 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.673
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.673
BC: dimension AM 1650mm, OHF: dimension FL 2100mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 590,80 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.674
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.674
BC: dimension AM 1700mm, OHF: dimension FL 2150mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 533,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.675
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.675
BC: dimension AM 1750mm, OHF: dimension FL 2200mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 596,30 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.676
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.676
BC: dimension AM 1800mm, OHF: dimension FL 2250mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 541,90 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.677
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.677
BC: dimension AM 1850mm, OHF: dimension FL 2300mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 601,80 EUR Incl. tax Excl. Shipping costs
Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.678
BPW Braked tandem front axle 1050kg SWING axle type CB 1054, 46.21.379.678
BC: dimension AM 1900mm, OHF: dimension FL 2350mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 546,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1054, 46.21.379.895
BPW Braked axle 1050kg SWING axle type CB 1054, 46.21.379.895
BC: dimension AM 1676mm, OHF: dimension FL 2260mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 1.530,00 EUR Incl. tax Excl. Shipping costs

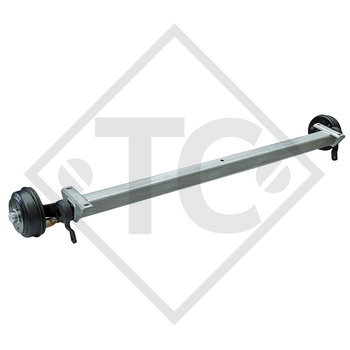

Braked axle 1150kg SWING axle type CB 1154, 46.21.379.592, ATLAS COPCO
BPW Braked axle 1150kg SWING axle type CB 1154, 46.21.379.592, ATLAS COPCO
wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 2.280,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1054, 46.21.379.894
BPW Braked axle 1050kg SWING axle type CB 1054, 46.21.379.894
BC: dimension AM 1570mm, OHF: dimension FL 2080mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.500,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1054, 46.21.379.517
BPW Braked axle 1050kg SWING axle type CB 1054, 46.21.379.517
BC: dimension AM 1500mm, OHF: dimension FL 2020mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 949,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1054, 46.21.379.001
BPW Braked axle 1050kg SWING axle type CB 1054, 46.21.379.001
BC: dimension AM 1435mm, OHF: dimension FL 1940mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 795,00 EUR Incl. tax Excl. Shipping costs
Braked axle 750kg axle type CB 754, 46.14.379.200
BPW Braked axle 750kg axle type CB 754, 46.14.379.200
BC: dimension AM 1306mm, OHF: dimension FL 1740mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 750,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1400kg axle type SB14
SCHLEGL Braked axle 1400kg axle type SB14
BC: dimension AM 750mm, OHF: dimension FL 1190mm, wheel connection 100x4, wheel brake type RB520, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 575,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1054, 46.21.379.104
BPW Braked axle 1050kg SWING axle type CB 1054, 46.21.379.104
BC: dimension AM 1400mm, OHF: dimension FL 1850mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm.
Price 515,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1050kg SWING axle type CB 1054, 46.21.379.030
BPW Braked axle 1050kg SWING axle type CB 1054, 46.21.379.030
BC: dimension AM 1470mm, OHF: dimension FL 1940mm, wheel connection 100x4, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 999,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg axle type RB520
SCHLEGL Braked axle 1500kg axle type RB520
BC: dimension AM 1435mm, OHF: dimension FL 1940mm, wheel connection 112x5, wheel brake type RB520, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.000,00 EUR Incl. tax Excl. Shipping costs
