AL-KO Braked axle 900 - 2000kg DELTA, axle type SI-N - These axles must only be installed in caravans!

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLE 900 - 2000KG DELTA, AXLE TYPE SI-N, AXLES FOR CARAVANS

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

AL-KO SEMI-TRAILING ARM AXLES HAVE BEEN DEVELOPED AND APPROVED SPECIFICALLY FOR USE IN CARAVANS.
CARAVANS ARE ONLY OPERATED WITHIN THE NOMINAL LOAD RANGE, AND ARE VERY
DEMANDING IN TERMS OF DRIVING DYNAMICS DUE TO
THEIR DESIGN, PARTICULARLY AT HIGH SPEEDS.
THESE AXLES HAVE BEEN DEVELOPED AND APPROVED PRECISELY FOR THESE BOUNDARY CONDITIONS.
NO OTHER APPLICATION AREA IS PERMITTED.

Braked axle 2000kg EURO1 axle type DELTA SI-18-3 with AAA (automatic adjustment of the brake pads)
AL-KO Braked axle 2000kg EURO1 axle type DELTA SI-18-3 with AAA (automatic adjustment of the brake pads)
BC: dimension A 1683mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2361 with AAA, offset (ET) 30mm, swing arm position 15°, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 1.995,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO axle type DELTA SIN 14-1 - Tabbert 545
AL-KO Braked axle 1500kg EURO axle type DELTA SIN 14-1 - Tabbert 545
BC: dimension A 1755mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 850kg EURO1 axle type B 850-4, RAPIDO caravan
AL-KO Braked axle 850kg EURO1 axle type B 850-4, RAPIDO caravan
BC: dimension A 1355mm, OHF: dimension C 1836mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 30mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 1.210,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO1 axle type DELTA SIN 10, Fendt Platin 650
AL-KO Braked axle 1000kg EURO1 axle type DELTA SIN 10, Fendt Platin 650
BC: dimension A 1790mm, OHF: dimension C 2270mm, wheel connection 100x4, wheel brake type 2051 vers. Aa, offset (ET) 30mm, swing arm position 16°, axle profile 97mm.
Price 1.315,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO1 axle type DELTA SIN 10, DETHLEFFS
AL-KO Braked axle 1000kg EURO1 axle type DELTA SIN 10, DETHLEFFS
BC: dimension A 1310mm, OHF: dimension C 1790mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm.
Price 1.315,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO1 axle type B 1000-3, DETHLEFFS 430T
AL-KO Braked axle 1000kg EURO1 axle type B 1000-3, DETHLEFFS 430T
BC: dimension A 1340mm, OHF: dimension C 1818mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.315,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO1 axle type B 1600-3, Hymer Eriba
AL-KO Braked axle 1500kg EURO1 axle type B 1600-3, Hymer Eriba
BC: dimension A 1395mm, OHF: dimension C 1800mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 5°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.399,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO1 axle type B 1200-5 - Wilk de Luxe 500
AL-KO Braked axle 1300kg EURO1 axle type B 1200-5 - Wilk de Luxe 500
BC: dimension A 1475mm, OHF: dimension C 1990mm, wheel connection 112x5, wheel brake type 2051A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.315,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1700kg EURO1 axle type DELTA SIN 14-3, Bürstner Belcanto
AL-KO Braked axle 1700kg EURO1 axle type DELTA SIN 14-3, Bürstner Belcanto
BC: dimension A 1520mm, OHF: dimension C 2038mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 0°, axle profile 97mm, no wheel bolts.
Price 1.790,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1360kg EURO Plus axle type DELTA SIN 12-3 - LMC & Dethleffs CARAVAN 490
AL-KO Braked axle 1360kg EURO Plus axle type DELTA SIN 12-3 - LMC & Dethleffs CARAVAN 490
BC: dimension A 1495mm, OHF: dimension C 2070mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, taper-head wheel bolts M12x1.5.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1700kg EURO1 axle type DELTA SIN 14-3 with AAA (automatic adjustment of the brake pads)
AL-KO Braked axle 1700kg EURO1 axle type DELTA SIN 14-3 with AAA (automatic adjustment of the brake pads)
BC: dimension A 1550mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2361 with AAA, offset (ET) 30mm, swing arm position 15°.
Price 1.885,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO Plus axle type Delta SI 850-10
AL-KO Braked axle 1000kg EURO Plus axle type Delta SI 850-10
BC: dimension A 1355mm, OHF: dimension C 1835mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 30°, axle profile 80mm.
Price 1.315,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO1 axle type DELTA SIN 14-1 - WILK - Tabbert
AL-KO Braked axle 1500kg EURO1 axle type DELTA SIN 14-1 - WILK - Tabbert
BC: dimension A 1580mm, OHF: dimension C 2090mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm.
Price 1.515,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1100kg EURO1 axle type Delta SIN 12-1, WILK
AL-KO Braked axle 1100kg EURO1 axle type Delta SIN 12-1, WILK
BC: dimension A 1375mm, OHF: dimension C 1890mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.315,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1700kg EURO1 axle type DELTA SIN 14-3, KNAUS KWE
AL-KO Braked axle 1700kg EURO1 axle type DELTA SIN 14-3, KNAUS KWE
BC: dimension A 1730mm, OHF: dimension C 2260mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 0°, axle profile 97mm, no wheel bolts.
Price 1.790,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO Plus axle type DELTA SIN 14-1 - KNAUS SPORT 485S
AL-KO Braked axle 1500kg EURO Plus axle type DELTA SIN 14-1 - KNAUS SPORT 485S
BC: dimension A 1430mm, OHF: dimension C 1910mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.425,00 EUR Incl. tax Excl. Shipping costs

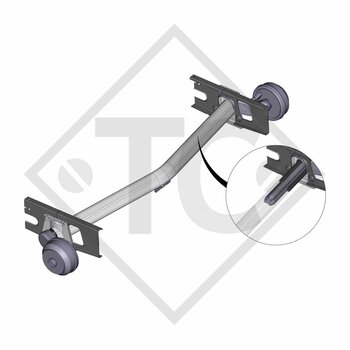

Braked axle 1600kg EURO1 axle type DELTA SIN 14-2 - LMC
AL-KO Braked axle 1600kg EURO1 axle type DELTA SIN 14-2 - LMC
BC: dimension A 1480mm, OHF: dimension C 2070mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 16°, axle profile 97mm.
Price 1.780,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO Compact axle type B 1000-3
AL-KO Braked axle 1000kg EURO Compact axle type B 1000-3
BC: dimension A 1150mm, OHF: dimension C 1610mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm.
Price 1.555,00 EUR Incl. tax Excl. Shipping costs
Braked axle 2000kg EURO1 axle type DELTA SI 18-3 with AAA (automatic adjustment of the brake pads)
AL-KO Braked axle 2000kg EURO1 axle type DELTA SI 18-3 with AAA (automatic adjustment of the brake pads)
BC: dimension A 1770mm, OHF: dimension C 2280mm, wheel connection 112x5, wheel brake type 2361 AAA, offset (ET) 30mm, axle profile 110mm.
Price 2.150,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg EURO Plus axle type B 850-10
AL-KO Braked axle 1000kg EURO Plus axle type B 850-10
BC: dimension A 1260mm, OHF: dimension C 1738mm, wheel connection 112x5, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 1.390,00 EUR Incl. tax Excl. Shipping costs
Braked axle 850kg BASIC axle type BT9628 Rapido
AL-KO Braked axle 850kg BASIC axle type BT9628 Rapido
BC: dimension A 1100mm, OHF: dimension C 1580mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 3°, axle profile 80mm, ball-head wheel bolts M14x1.5.
Price 2.750,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO1 axle type DELTA SIN 14-1 with AAA (automatic adjustment of the brake pads)
AL-KO Braked axle 1500kg EURO1 axle type DELTA SIN 14-1 with AAA (automatic adjustment of the brake pads)
BC: dimension A 1550mm, OHF: dimension C 2030mm, wheel connection 112x5, wheel brake type 2051 vers. Ab with AAA, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.475,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg Euro1 axle type DELTA SI-N 12 Tabbert 530
AL-KO Braked axle 1300kg Euro1 axle type DELTA SI-N 12 Tabbert 530
BC: dimension A 1575mm, OHF: dimension C 2090mm, wheel connection 112x5, wheel brake type 2051A, offset (ET) 26-30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.380,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO1 axle type Delta SIN 12 - KNAUS TABBERT 450
AL-KO Braked axle 1300kg EURO1 axle type Delta SIN 12 - KNAUS TABBERT 450
BC: dimension A 1340mm, OHF: dimension C 1818mm, wheel connection 100x4, wheel brake type 2051 Ab, offset (ET) 26-30mm, swing arm position 16°, axle profile 97mm.
Price 1.390,00 EUR Incl. tax Excl. Shipping costs
Page 9 of 14
