AL-KO Braked axle 900 - 2000kg DELTA, axle type SI-N - These axles must only be installed in caravans!

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLE 900 - 2000KG DELTA, AXLE TYPE SI-N, AXLES FOR CARAVANS

JUST ORIGINAL PARTS

LIFE-TIME SUPPORT

SALE

POSITIVE REVIEWS

AL-KO SEMI-TRAILING ARM AXLES HAVE BEEN DEVELOPED AND APPROVED SPECIFICALLY FOR USE IN CARAVANS.
CARAVANS ARE ONLY OPERATED WITHIN THE NOMINAL LOAD RANGE, AND ARE VERY
DEMANDING IN TERMS OF DRIVING DYNAMICS DUE TO
THEIR DESIGN, PARTICULARLY AT HIGH SPEEDS.
THESE AXLES HAVE BEEN DEVELOPED AND APPROVED PRECISELY FOR THESE BOUNDARY CONDITIONS.
NO OTHER APPLICATION AREA IS PERMITTED.

Braked axle 900kg EURO axle type DSI-850-5, KNAUS caravan
AL-KO Braked axle 900kg EURO axle type DSI-850-5, KNAUS caravan
BC: dimension A 1555mm, OHF: dimension C 2065mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 30°, axle profile 80mm.
Price 1.235,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1400kg EURO1 axle type B 1600-03 LMC caravan
AL-KO Braked axle 1400kg EURO1 axle type B 1600-03 LMC caravan
BC: dimension A 1600mm, OHF: dimension C 2025mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 25°, axle profile 97mm.
Price 1.415,00 EUR Incl. tax Excl. Shipping costs
Braked axle 650kg axle type B 700-3 - RACLET caravan
AL-KO Braked axle 650kg axle type B 700-3 - RACLET caravan
BC: dimension A 796mm, OHF: dimension C 1176mm, wheel connection 115x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 25°, axle profile 71mm.
Price 725,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO1 axle type B 1200-5, Knaus Sport 400
AL-KO Braked axle 1300kg EURO1 axle type B 1200-5, Knaus Sport 400
BC: dimension A 1450mm, OHF: dimension C 1960mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5.
Price 1.395,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1600kg EURO Plus axle type DELTA SIN 14-2, Knaus
AL-KO Braked axle 1600kg EURO Plus axle type DELTA SIN 14-2, Knaus
BC: dimension A 1550mm, OHF: dimension C 2030mm, wheel connection 112x5, wheel brake type 2361 vers. Ab, offset (ET) 30mm, swing arm position 15°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.875,00 EUR Incl. tax Excl. Shipping costs

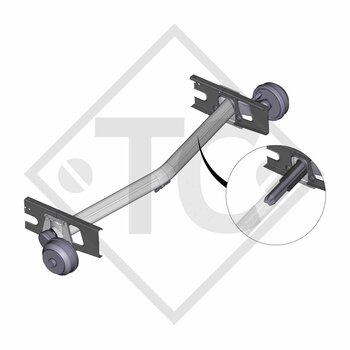

Braked axle 1300kg EURO1 axle type DELTA SIN 12 KNAUS TABBERT
AL-KO Braked axle 1300kg EURO1 axle type DELTA SIN 12 KNAUS TABBERT
BC: dimension A 1760mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2051 vers. Aa, offset (ET) 30mm, swing arm position 16°, axle profile 97mm.
Price 1.345,00 EUR Incl. tax Excl. Shipping costs
Braked axle 900kg EURO PLUS axle type B 850-5, ERIBA
AL-KO Braked axle 900kg EURO PLUS axle type B 850-5, ERIBA
BC: dimension A 1140mm, OHF: dimension C 1757mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm.
Price 1.075,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO Plus axle type DELTA SI-N 12 - THRUN-EICKER
AL-KO Braked axle 1300kg EURO Plus axle type DELTA SI-N 12 - THRUN-EICKER
BC: dimension A 1440mm, OHF: dimension C 1918mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, taper-head wheel bolts M12x1.5.
Price 1.350,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO COMPACT axle type B 1600-3
AL-KO Braked axle 1500kg EURO COMPACT axle type B 1600-3
BC: dimension A 1405mm, OHF: dimension C 1900mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm.
Price 1.415,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO PLUS axle type DELTA SI-N 12 - FENDT
AL-KO Braked axle 1300kg EURO PLUS axle type DELTA SI-N 12 - FENDT
BC: dimension A 1500mm, OHF: dimension C 1980mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.400,00 EUR Incl. tax Excl. Shipping costs

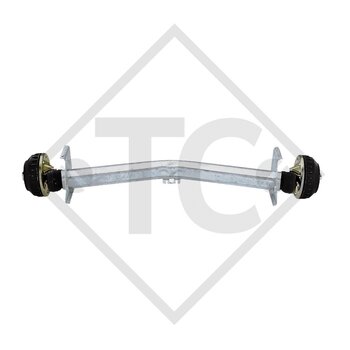

Braked axle 1600kg EURO PLUS axle type DELTA SIN 14-2
AL-KO Braked axle 1600kg EURO PLUS axle type DELTA SIN 14-2
BC: dimension A 1760mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.815,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO1 axle type B 1200-5 Bürstner city 510 tl
AL-KO Braked axle 1300kg EURO1 axle type B 1200-5 Bürstner city 510 tl
BC: dimension A 1440mm, OHF: dimension C 1920mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm.
Price 1.340,00 EUR Incl. tax Excl. Shipping costs
Braked axle 2000kg EURO1 axle type DELTA SI-18-2 BURSTNER AVERSO
AL-KO Braked axle 2000kg EURO1 axle type DELTA SI-18-2 BURSTNER AVERSO
BC: dimension A 1683mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 16°, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 1.990,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1360kg EURO1 axle type DELTA SIN 12-3 - Bürstner
AL-KO Braked axle 1360kg EURO1 axle type DELTA SIN 12-3 - Bürstner
BC: dimension A 1680mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.495,00 EUR Incl. tax Excl. Shipping costs
Braked axle 800kg EURO1 axle type B 850-3
AL-KO Braked axle 800kg EURO1 axle type B 850-3
BC: dimension A 1596mm, OHF: dimension C 2110mm, wheel connection 100x4, wheel brake type 1637, swing arm position 25°, axle profile 80mm.
Price 1.250,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1100kg EURO Plus axle type DELTA SIN 10-1, BUERSTNER
AL-KO Braked axle 1100kg EURO Plus axle type DELTA SIN 10-1, BUERSTNER
BC: dimension A 1355mm, OHF: dimension C 1835mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, taper-head wheel bolts M12x1.5.
Price 1.415,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1200kg EURO axle type DELTA SI-N 12-2 - WILK
AL-KO Braked axle 1200kg EURO axle type DELTA SI-N 12-2 - WILK
BC: dimension A 1475mm, OHF: dimension C 1980mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 10°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.350,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg EURO1 axle type DELTA SI 18-1
AL-KO Braked axle 1800kg EURO1 axle type DELTA SI 18-1
BC: dimension A 1680mm, OHF: dimension C 2170mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 2.050,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO1 axle type B 1600-3 - T.E.C. Sprinter 510 TKM
AL-KO Braked axle 1500kg EURO1 axle type B 1600-3 - T.E.C. Sprinter 510 TKM
BC: dimension A 1545mm, OHF: dimension C 2075mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.495,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1360kg EURO Plus axle type DELTA SIN 12-3, HYMER - KNAUS TABBERT
AL-KO Braked axle 1360kg EURO Plus axle type DELTA SIN 12-3, HYMER - KNAUS TABBERT
BC: dimension A 1495mm, OHF: dimension C 1970mm, wheel connection 112x5, wheel brake type 2051 vers. AB, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.445,00 EUR Incl. tax Excl. Shipping costs
Braked axle 2000kg EURO1 axle type DELTA SI 18-3 with AAA (automatic adjustment of the brake pads) Hymer Nova SL
AL-KO Braked axle 2000kg EURO1 axle type DELTA SI 18-3 with AAA (automatic adjustment of the brake pads) Hymer Nova SL
BC: dimension A 1580mm, OHF: dimension C 2170mm, wheel connection 112x5, wheel brake type 2361 AAA, offset (ET) 30mm, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 2.095,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO Plus axle type DELTA SI-N 12
AL-KO Braked axle 1300kg EURO Plus axle type DELTA SI-N 12
BC: dimension A 1310mm, OHF: dimension C 1854mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, taper-head wheel bolts M12x1.5.
Price 1.340,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1100kg EURO1 axle type Delta SIN 10-1, HYMER NOVA 391
AL-KO Braked axle 1100kg EURO1 axle type Delta SIN 10-1, HYMER NOVA 391
BC: dimension A 1390mm, OHF: dimension C 1870mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.335,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg EURO PLUS axle type DELTA SI 18-1
AL-KO Braked axle 1800kg EURO PLUS axle type DELTA SI 18-1
BC: dimension A 1680mm, OHF: dimension C 2198mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 1.995,00 EUR Incl. tax Excl. Shipping costs
Page 13 of 14
