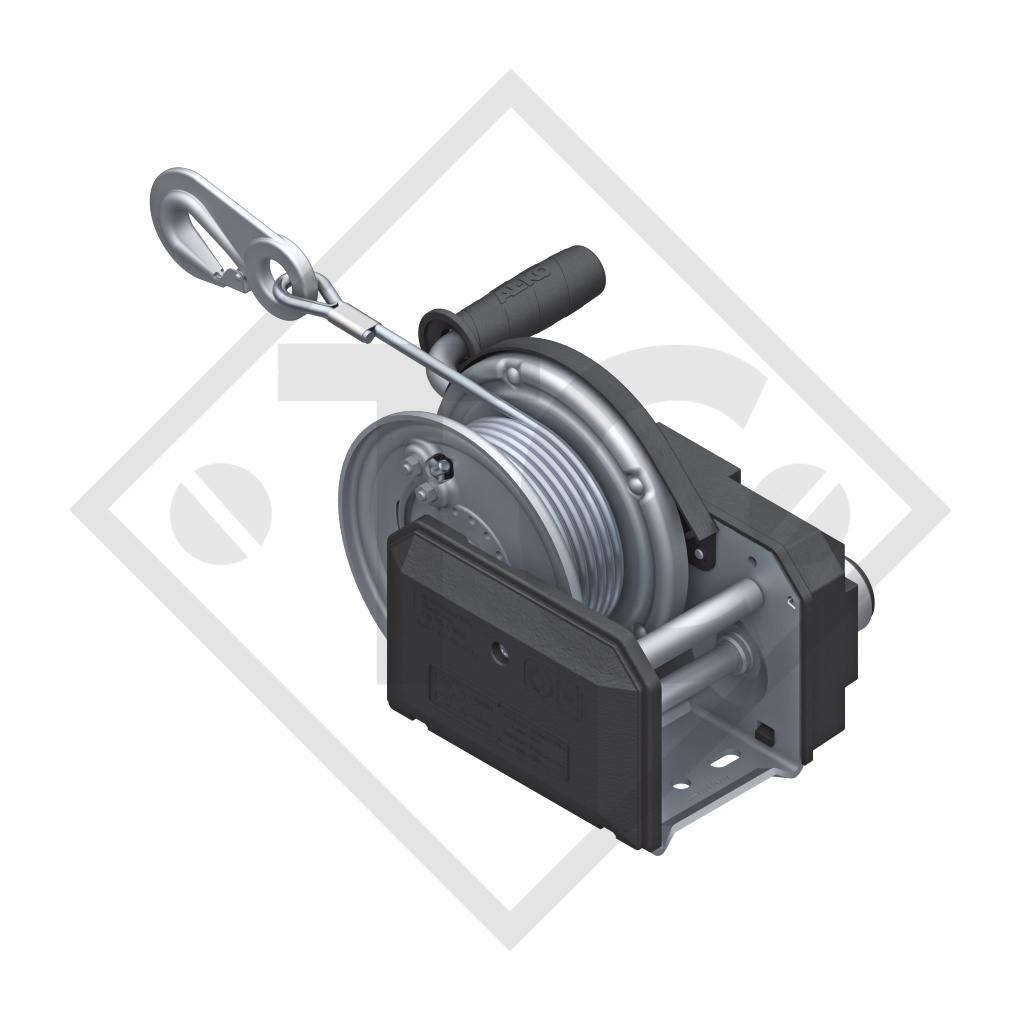

Home / Cable winch PLUS 900kg, type 901 with automatic weight brake, without automatic unwinder, fitted with 17 meter cable for lifting
manual force 190N, minimum load 25kg, reduction 8.75 : 1, lift per crank rotation from 25-55mm, drum capacity for cable ⌀7mm: 17 meter, drum capacity for towing band: 10 meter. Read more...
Part no. 1732835 fitted with 17 m cable for lifting
| Cable winch braked - type 901 PLUS |
| Tensile load max. lowest cable position | 900 kg |
| Manual force | 190 N |
| Minimum load | 25 kg |
| Reduction | 8,75 : 1 |
| Lift per crank rotation | From 25 - 55 mm |
| Drum capacity for 7 mm ø cable |
17 m |
| Drum capacity for towing band | 10 m |
| PLUS cable winch 900 kg | Slope | Lowest cable position | Middle cable position | Highest cable position |
| Vertical lifting of loads – (guidance values) | - | 900 kg | 600 kg | 330 kg |
|
Horizontal and angled pulling of a (non-rolling) load (guidance values) friction factor approx. 0.5 |
10% (6°) 20% (11°) 30% (17°) |
1.500 kg 1.300 kg 1.150 kg |
1.000 kg 900 kg 800 kg |
550 kg 500 kg 400 kg |
| Angled pulling of a rolling load (guidance values) |
10% (6°) 20% (11°) 30% (17°) |
5.800 kg 3.600 kg 2.700 kg |
3.900 kg 2.400 kg 1.800 kg |
2.100 kg 1300 kg 1.000 kg |
INSTRUCTION BOOK
SPARE PART LIST 811696
SPARE PART LIST 811696A
SPARE PART LIST 811696B
SPARE PART LIST 811696D
SPARE PART LIST 811696E
SPARE PART LIST 811696F
SPARE PART LIST 811696G
SPARE PART LIST 811696H
SPARE PART LIST 811696J
SPARE PART LIST 811696K
SPARE PART LIST 811696L or
SPARE PART LIST 811696M
CABLE WINCHES
with automatic load pressure brake
LOAD PRESSURE BRAKE
Automatic
YOUR ADVANTAGE
Modern design
High-quality corrosion protection
Automatic load pressure brake
Cable drum with plain bearing
Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Range: 350 / 500 / 900 / 1150 kg
SURFACE TREATMENT
High-quality zinc-nickel coating approx. 400 hours salt spray test
CABLE WINCH OPERATION
Lifting: Turn the hand crank in a clockwise direction
Stopping: Let go of the hand crank in any position (automatic load pressure brake)
Lowering: Turn the hand crank in a counter-clockwise direction
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
