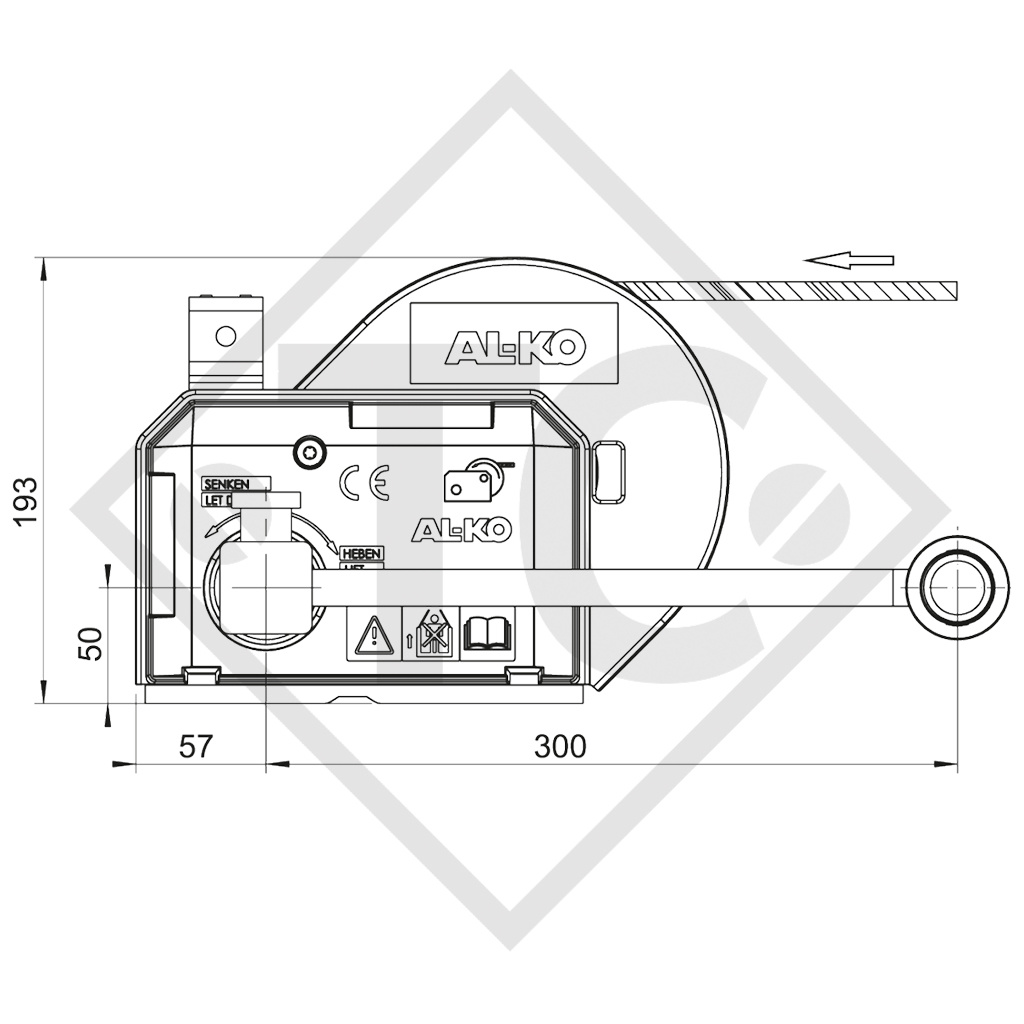

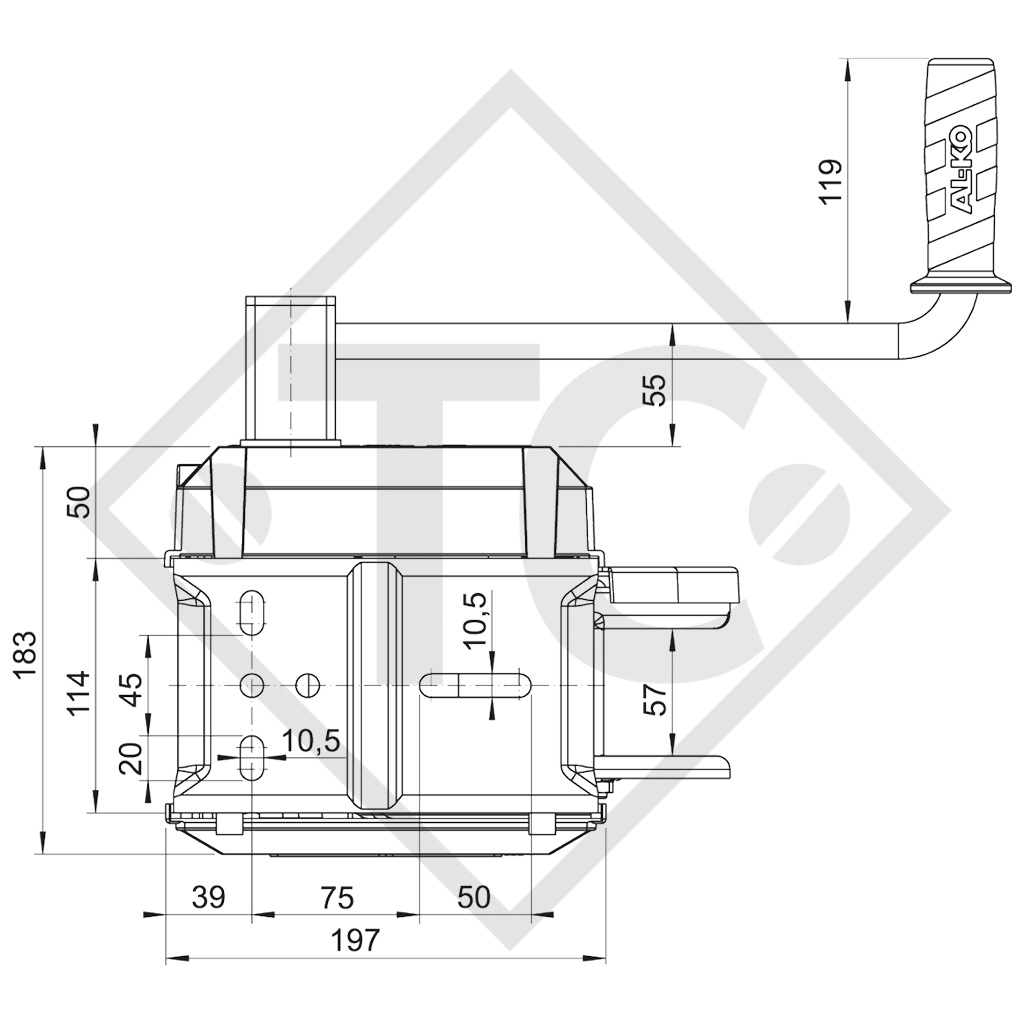

Home / Cable winch PLUS 900kg, type 901 with automatic weight brake, with automatic unwinder, fitted with 12.5 meter cable for lifting
manual force 190N, minimum load 25kg, reduction 8.75 : 1, lift per crank rotation from 25-55mm, drum capacity for cable ⌀7mm: 20 meter, drum capacity for towing band: 10 meter. Read more...
Part no. 1730015 fitted with 12,5 m cable for lifting
| Cable winch braked - type 901 PLUS with automatic unwinder |
| Tensile load max. lowest cable position | 900 kg |
| Manual force | 190 N |
| Minimum load | 25 kg |
| Reduction | 8,75 : 1 |
| Lift per crank rotation | From 25 - 55 mm |
| Drum capacity for 7 mm ø cable |
20 m |
| Drum capacity for towing band | 10 m |
| Cable winch PLUS 900 kg with automatic unwinder | Slope | Lowest cable position | Middle cable position | Highest cable position |
| Vertical lifting of loads – (guidance values) | - | 900 kg | 600 kg | 330 kg |
|
Horizontal and angled pulling of a (non-rolling) load (guidance values) friction factor approx. 0.5 |
10% (6°) 20% (11°) 30% (17°) |
1.500 kg 1.300 kg 1.150 kg |
1.000 kg 900 kg 800 kg |
550 kg 500 kg 400 kg |
| Angled pulling of a rolling load (guidance values) |
10% (6°) 20% (11°) 30% (17°) |
5.800 kg 3.600 kg 2.700 kg |
3.900 kg 2.400 kg 1.800 kg |
2.100 kg 1.300 kg 1.000 kg |
INSTRUCTION BOOK
SPARE PART LIST 811697
SPARE PART LIST 811697A
SPARE PART LIST 811697C
SPARE PART LIST 811697D or
SPARE PART LIST 811697E
CABLE WINCHES
with automatic load pressure brake
LOAD PRESSURE BRAKE
Automatic
YOUR ADVANTAGE
Modern design
High-quality corrosion protection
Automatic load pressure brake
Cable drum with plain bearing
Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Range: 350 / 500 / 900 / 1150 kg
SURFACE TREATMENT
High-quality zinc-nickel coating approx. 400 hours salt spray test
CABLE WINCH OPERATION

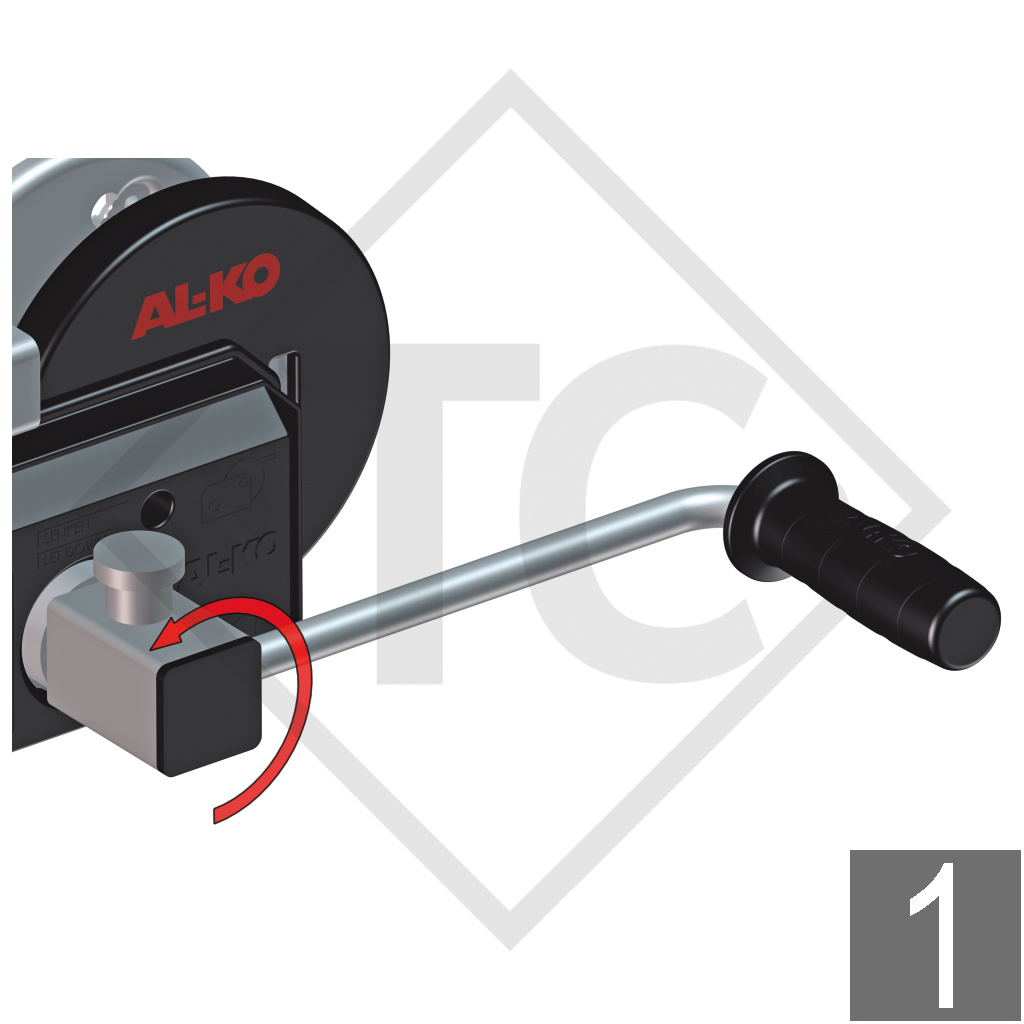

Lifting: Turn the hand crank in a clockwise direction
Stopping: Let go of the hand crank in any position (automatic load pressure brake)
Lowering: Turn the hand crank in a counter-clockwise direction

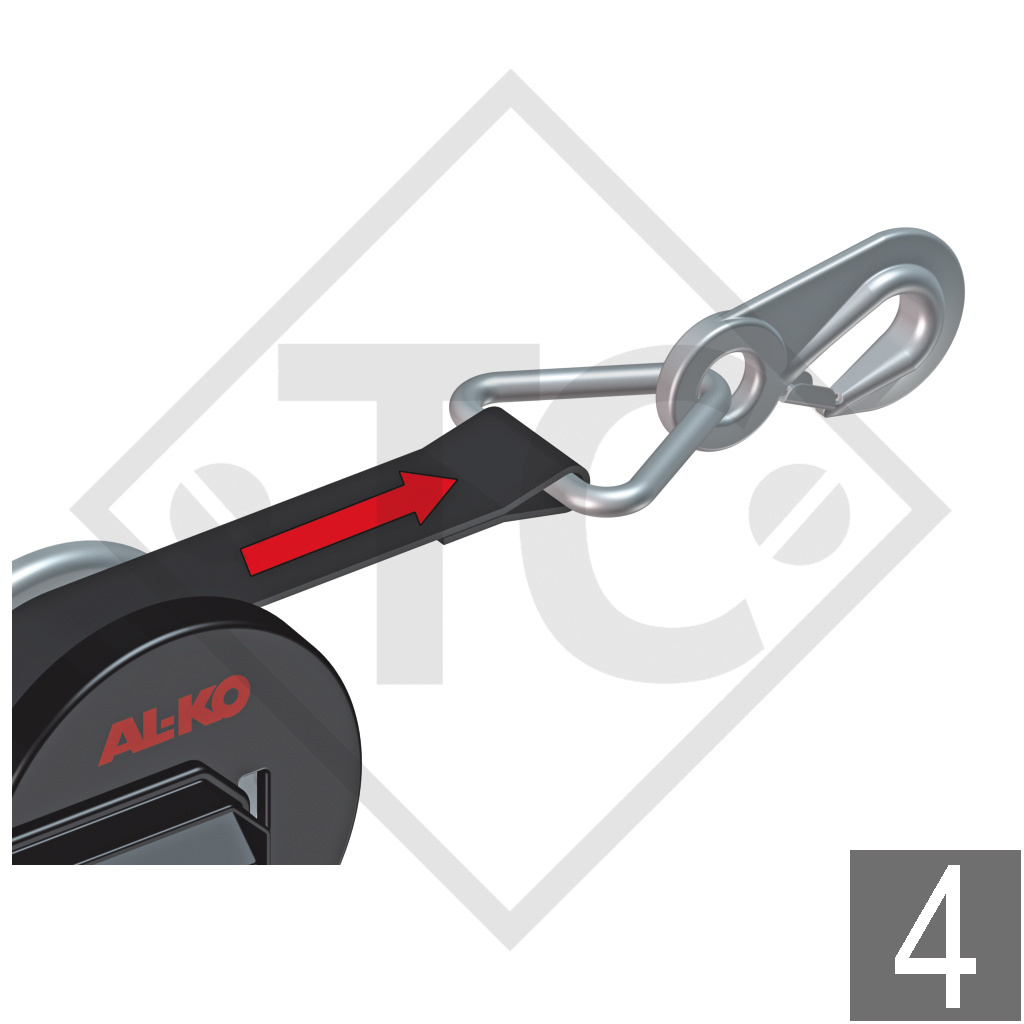

AUTOMATIC UNWINDER OPERATION
1. Turn the hand crank in a counter-clockwise for one rotation, this will cause the load pressure brake to be deactivated
2. Pull up locking sleeve
3. Remove crank
4. The band or cable can now be removed
