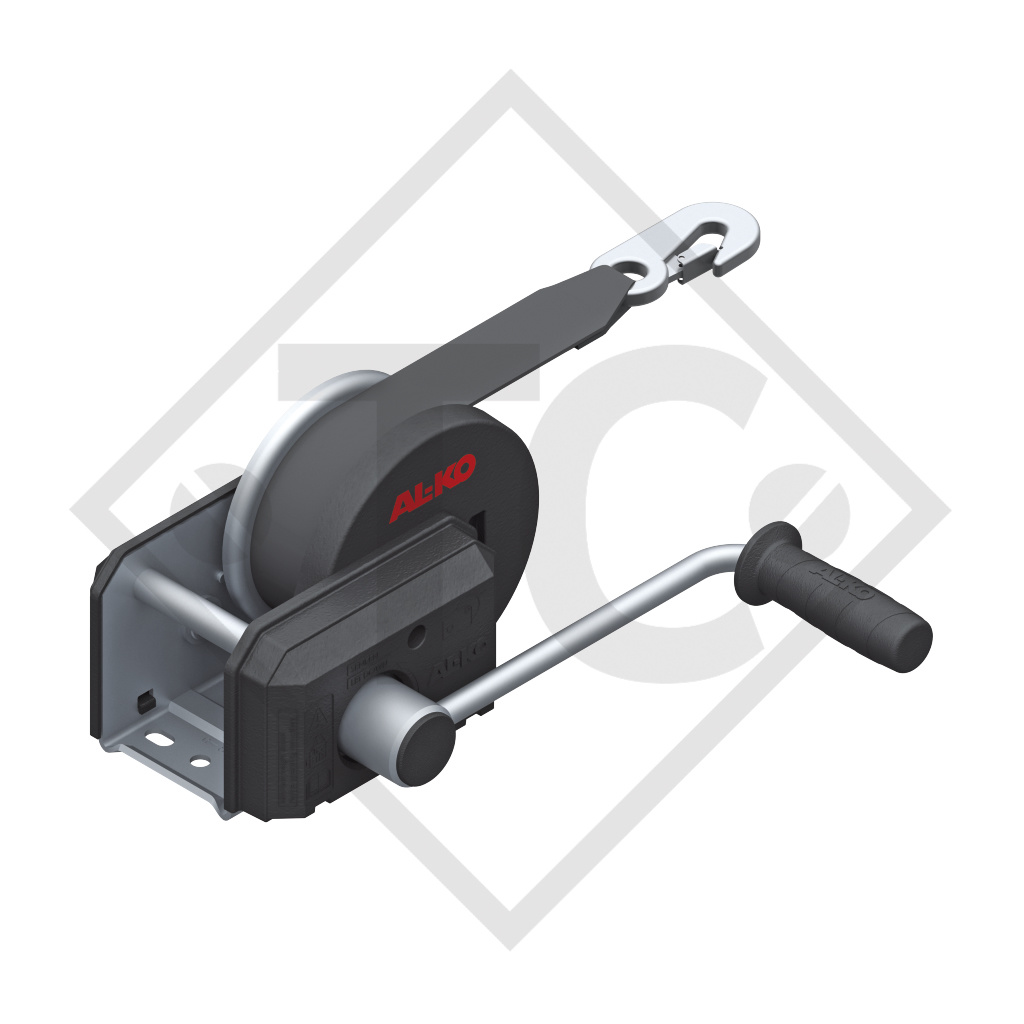

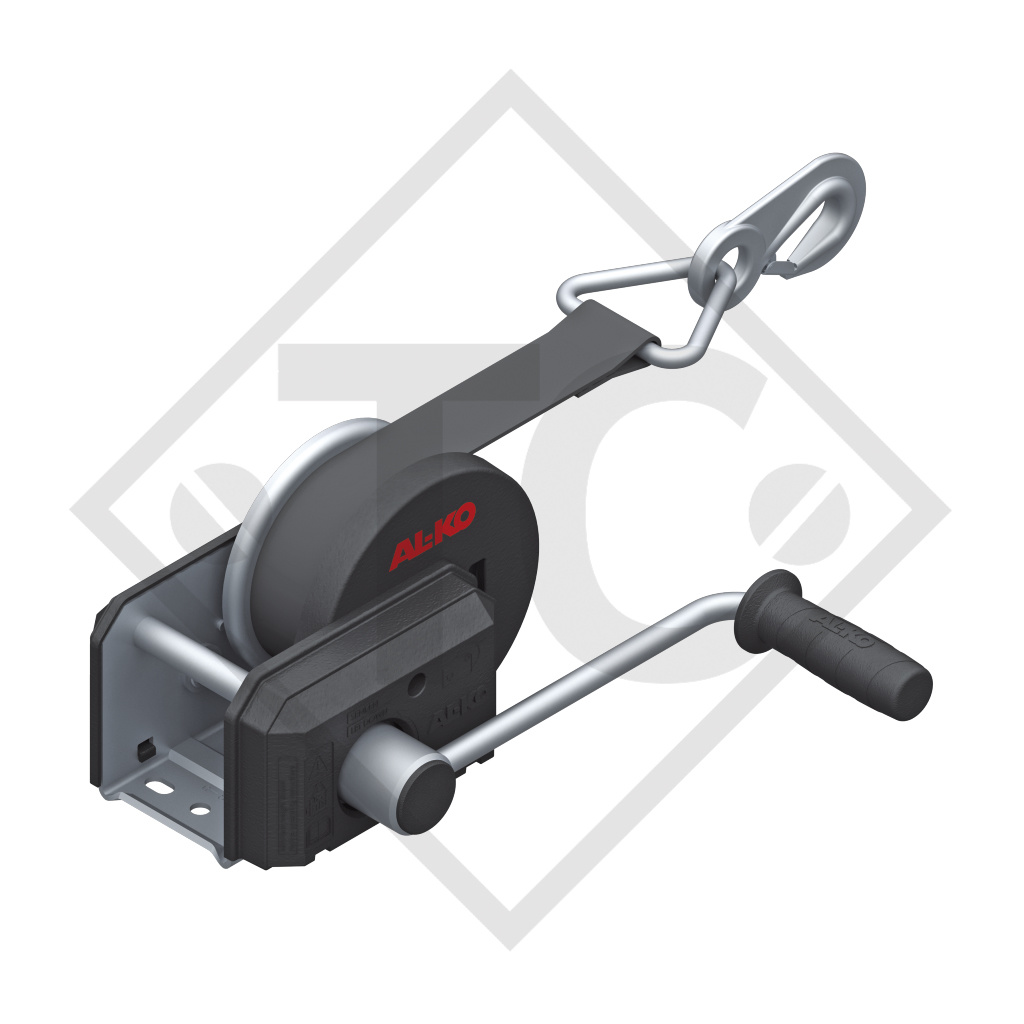

Home / Cable winch PLUS 500kg, type 501 with automatic weight brake, without automatic unwinder, fitted with 7 meter strap for towing
manual force 200N, minimum load 25kg, reduction 3.75 : 1, lift per crank rotation from 45-100mm, drum capacity for cable ⌀5mm: 20 meter, drum capacity for towing band: 7 meter. Read more...
Part no. 1730006 fitted with 7 m strap for towing

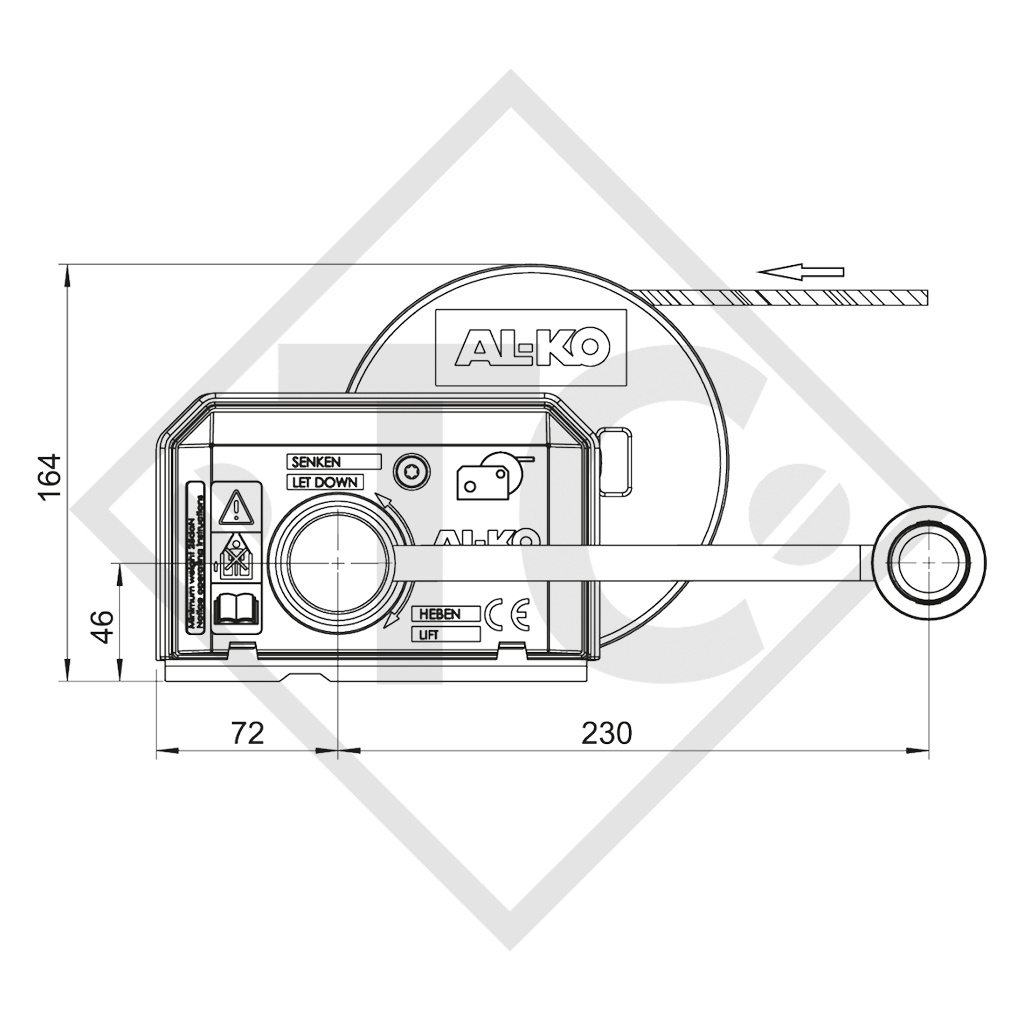

| Cable winch braked - type 501 PLUS |
| Tensile load max. lowest cable position | 500 kg |
| Manual force | 200 N |
| Minimum load | 25 kg |
| Reduction | 3,75 : 1 |
| Lift per crank rotation | From 45 - 100 mm |
| Drum capacity for 5 mm ø cable |
20 m |
| Drum capacity for towing band | 7 m |
| PLUS cable winch 500 kg | Slope | Lowest cable position | Middle cable position | Highest cable position |
| Vertical lifting of loads – (guidance values) | - | 500 kg | 330 kg | 170 kg |
|
Horizontal and angled pulling of a (non-rolling) load (guidance values) friction factor approx. 0.5 |
10% (6°) 20% (11°) 30% (17°) |
800 kg 700 kg 650 kg |
550 kg 500 kg 450 kg |
300 kg 250 kg 220 kg |
| Angled pulling of a rolling load (guidance values) |
10% (6°) 20% (11°) 30% (17°) |
3.300 kg 2.000 kg 1.500 kg |
2.200 kg 1.300 kg 1.000 kg |
1.100 kg 700 kg 500 kg |
INSTRUCTION BOOK
SPARE PART LIST 811701
SPARE PART LIST 811701A or
SPARE PART LIST 811701B
CABLE WINCHES
with automatic load pressure brake
LOAD PRESSURE BRAKE
Automatic
YOUR ADVANTAGE
Modern design
High-quality corrosion protection
Automatic load pressure brake
Cable drum with plain bearing
Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Range: 350 / 500 / 900 / 1150 kg
SURFACE TREATMENT
High-quality zinc-nickel coating approx. 400 hours salt spray test
CABLE WINCH OPERATION
Lifting: Turn the hand crank in a clockwise direction
Stopping: Let go of the hand crank in any position (automatic load pressure brake)
Lowering: Turn the hand crank in a counter-clockwise direction
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
